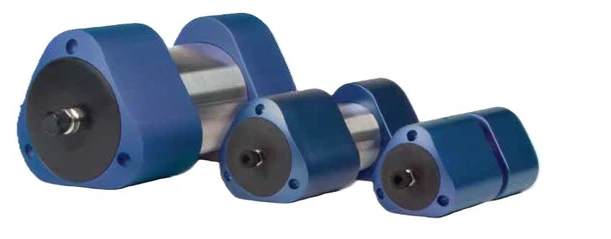

Phenomenex Axia Preparative LC Columns

Available in over 40 unique achiral and chiral selectivities, Axia advanced preparative column packings and column hardware designs offer several advantages.

Guaranteed, Longest Lasting Preparative HPLC and SFC ColumnAvailable in over 40 unique achiral and chiral selectivities, Axia advanced preparative column packings and column hardware designs offer several advantages. Unlike traditional preparative HPLC column packing methods, the Axia packing method offers increased sorbent bed density for increased performance and eliminates media bed collapse as a source of premature column failure in preparative HPLC/SFC columns.<h3>Axia Packed Preparative HPLC Columns</h3><h4>Axia Single Axial Compression Step</h4>Axia packed preparative columns involve a single axial compression step, unlike conventional packed preparative columns. The ideal prep HPLC column bed density is custom calculated and automated for each specific media and column size. Computer control of the entire process ensures both proper bed density and column uniformity every time.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Axia_Packing_Technology_1785ff0442.jpg" alt="Phenomenex: Axia Packing Technology" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Axia_Packing_Technology_1785ff0442.jpg 245w," sizes="100vw" width="917" height="560"><h4>Unmatched Column Reproducibility</h4>The automated Axia™ packing system provides feedback control and infinite tuning of packing density for specific media characteristics such as mechanical strength and porosity. An optimum higher bed density can be consistently reproduced column-to-column. This directly translates into consistent efficiency and peak asymmetry measurements and decreases the column variability seen in traditionally packed preparative columns.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Unmatched_Column_Reproducibility_a752be8dd5.jpg" alt="Phenomenex: Unmatched Column Reproducibility" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Unmatched_Column_Reproducibility_a752be8dd5.jpg 245w," sizes="100vw" width="995" height="534"><h3>Seamless Scalability to Increase Sample Load</h3><h4>Increase Column Length</h4>Increase sample load without increasing your flow rate by using a longer column. With Axia technology, each preparative column is optimized for:<ul><li>Analytical-like efficiency</li><li>Long column lifetime</li><li>High sample load with high surface area media such as Kinetex, Aeris, Gemini, Luna, Luna Omega, or Synergi</li></ul><h4>Increase Column ID</h4>For maximizing load without increasing the run time, consider scaling up to a larger column ID. Axia packed columns provide the three important benefits you need.<ul><li>Reproducible performance across all column diameters</li><li>Increased throughput without sacrificing purity</li><li>High efficiency from analytical to preparative</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Phenomenex_Increase_Column_ID_a45d7f8aa3.jpg" alt="Phenomenex: Increase Column ID" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Phenomenex_Increase_Column_ID_a45d7f8aa3.jpg 156w," sizes="100vw" width="908" height="910"><h3>Axia Technology Outperforms Traditional Packing Processes!</h3>Because of the constant pressure placed on the integrated packing piston, Axia packed columns possess the dynamic capability of maintaining a consistent, homogeneous media bed. This results in superior column performance no matter which media selectivity you choose.<h3>How to choose the right column</h3><h5>Acidic Compounds</h5><ul><li>Kinetex XB-C18</li><li>Gemini C18</li></ul><h5>Aromatic</h5><ul><li>Luna Phenyl-Hexyl</li><li>Kinetex Biphenyl</li></ul><h5>Closely Related Compounds</h5><ul><li>Kinetex F5</li><li>Luna PFP(2)</li></ul><h5>Extremely Hydrophobic</h5><ul><li>Kinetex C8</li><li>Luna C8(2)</li></ul><h5>Extremely Polar</h5><ul><li>Luna HILIC(2)</li><li>Kinetex HILIC</li></ul><h5>Hydrophobic Compounds</h5><ul><li>Luna C18(2)</li><li>Kinetex C18</li></ul><h5>Polar Acids</h5><ul><li>Luna Omega Polar C18</li><li>Kinetex Polar C18</li></ul><h5>Polar Bases</h5><ul><li>Luna Omega PS C18</li><li>Kinetex PS C18</li></ul><h5>Sugars</h5><ul><li>Luna NH(2)</li></ul><h5>Chiral</h5><ul><li>Lux i-Amylose-3</li><li>Lux Cellulose-1</li></ul>

Products focused on PrepLC distributed by Phenomenex - page 1
