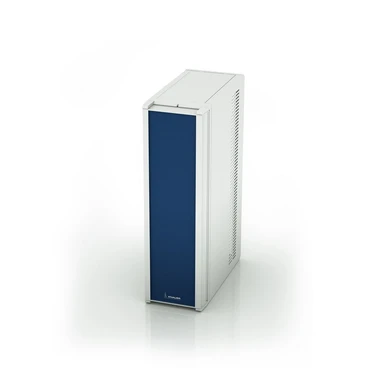

The KNAUER AZURA CT 2.1 is a cost-effective column thermostat designed for precise and stable temperature control in HPLC applications.
The instrument uses a microprocessor-controlled Peltier element, enabling both heating and cooling in the range of 5–85 °C. Its high temperature stability allows for programming linear and non-linear temperature gradients, improving separation performance.
For advanced applications, the system can be optionally equipped with an eluent pre-heating cartridge, ensuring consistent temperature conditions, improved selectivity, and better peak shapes.
Its compact design supports flexible integration and accommodates multiple columns.
Key Features
- Column thermostat for HPLC applications
- Temperature range 5–85 °C
- Peltier technology (heating and cooling)
- High temperature stability (±0.1 °C)
- Accurate temperature control (±0.2 °C)
- Programmable temperature gradients
- Optional eluent pre-heating
- Supports multiple columns
- Compact and robust design
- Built-in safety features
Technical Specifications
Thermostatting
- Technology: Peltier (heating & cooling)
- Temperature range: 5–85 °C
- Heating/cooling rate: 2 °C/min
- Accuracy: ± 0.2 °C
- Stability: ± 0.1 °C
- Air circulation: fan-assisted bidirectional flow
Column Compartment
- Max number of columns: up to 8
- Max length: 325 mm
- Max diameter: 35 mm
- Compatibility:
- 125 mm × 4.6 mm ID (with precolumn)
- 300 mm × 4.6 mm ID
- 300 mm × 16 mm ID
Internal Dimensions
- 90 × 390 × 47 mm
Safety
- Self-check and auto-calibration at startup
- Adjustable shut-off temperature
- Leak sensor with acoustic alarm
Control & Communication
- LAN interface
- Optional Mobile Control (stand-alone operation)
Power & Dimensions
- Power supply: 90–230 V, 50–60 Hz
- Power consumption: 100 W
- Dimensions: 150 × 470 × 310 mm
- Weight: 8.4 kg
Optional Accessories
- Eluent pre-heating cartridge
- for capillaries 0.1 mm / 0.18 mm ID
