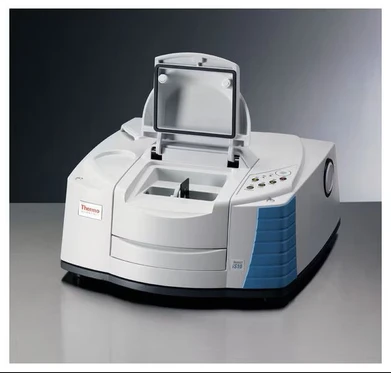

The Thermo Scientific Nicolet™ iS™ 10 FTIR Spectrometer is a high-performance infrared spectrometer designed for routine and advanced analytical applications in QA/QC, pharmaceuticals, polymers, forensics, and petrochemical analysis.
The system is optimized for the mid-infrared (mid-IR) region, utilizing a KBr/Ge beamsplitter, with optional XT-KBr/Ge extended range optics. It is equipped with a fast recovery DTGS detector, providing high sensitivity and stability without the need for liquid nitrogen cooling.
A sealed optical bench ensures resistance to ambient humidity, supporting reliable long-term operation. The modular design allows integration with a wide range of accessories including SMART accessories, microscopes, and TGA-IR systems.
Key Features
- FTIR spectrometer optimized for mid-IR analysis
- Spectral range up to 11,000–350 cm⁻¹ (XT optics)
- High resolution < 0.4 cm⁻¹
- DTGS detector (no liquid nitrogen required)
- KBr/Ge beamsplitter (standard)
- Sealed optics for humidity resistance
- Dual source (Ever-Glo + tungsten/halogen)
- Compatibility with wide accessory range (SMART, microscopy, TGA-IR)
- USB connectivity
- ASTM E1421 compliant (ISO/GLP)
Technical Specifications
Optics and Performance
- Spectral range:
- 7800–350 cm⁻¹ (standard KBr)
- 11,000–375 cm⁻¹ (XT-KBr extended range)
- Spectral resolution: < 0.4 cm⁻¹
- Laser: HeNe
- Beamsplitter:
- KBr/Ge (standard)
- XT-KBr/Ge (optional)
Detection and Sources
- Detector:
- DTGS (standard)
- MCT (optional, LN₂ cooled)
- Source:
- Mid-IR Ever-Glo
- Tungsten/halogen
Construction and Compatibility
- Optical system: sealed
- Compatible with:
- SMART Accessories
- Continuum microscope
- TGA-IR
- Photoacoustic modules
- standard FTIR accessories
Interface
- USB 2.0
Dimensions and Weight
- Width: 570 mm
- Height: 250 mm
- Depth: 550 mm
- Weight: 33 kg
Validation
- ASTM E1421
- ISO / GLP compliance
