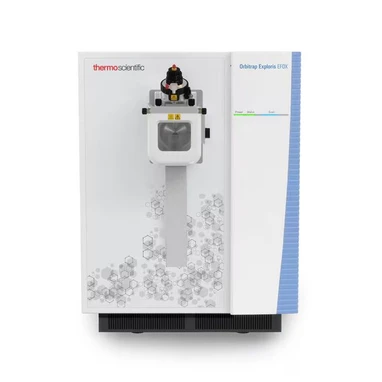

The Thermo Scientific™ Orbitrap Exploris™ EFOX Mass Detector is an Orbitrap-based mass detector designed for accurate and reliable trace contaminant analysis in environmental and food safety applications. This high-resolution mass spectrometry system enables comprehensive screening, quantification, and sample profiling within a single analysis while supporting efficient laboratory workflows and regulatory compliance.
The instrument combines high sensitivity, selectivity, and robust design with simplified workflows for both routine and advanced applications. Full-scan acquisition together with in-source fragmentation eliminates the need for time-consuming MS/MS method optimization. Integration with Thermo Scientific™ Chromeleon™ software ensures efficient data processing and management.
Key features
- High-resolution mass spectrometry for precise detection and quantification of trace contaminants
- Supports targeted analysis, suspect screening, and comprehensive sample profiling
- Streamlined workflows reducing operational and maintenance costs
- Enables retrospective data analysis without sample reinjection
- Integrated with Chromeleon™ CDS for efficient data processing
Technical specifications
- Dimensions (D × W × H): 763 × 534 × 703 mm (30 × 21 × 27.6 in), without data system, vacuum rough pumps, and optional items
- Mass accuracy:
- External calibration: <3 ppm RMS drift over 24 h
- 1-point calibration: <3 ppm RMS drift over at least 4 weeks
- Internal lock mass: <1 ppm RMS drift over 24 h
- EASY-IC: <1 ppm RMS drift for at least 5 days
- Mass resolution: Up to 90,000 at 200 m/z
- Scan rates: Up to 22 Hz at resolution setting 15,000
- Software compatibility: Chromeleon software
- Weight: 120 kg (265 lbs)
- Mass range: 50–1500 m/z
- Technique: MS
- Type: Orbitrap LC-MS
- Unit size: Each
