The Thermo Scientific™ DXR3xi Raman Imaging Microscope delivers research-grade Raman imaging faster than ever before. Enhanced software features combined with higher spatial resolution allow users to instantly obtain detailed visual and chemical information. Advanced imaging capabilities, minimal sample preparation, and intuitive software provide researchers with the power of Raman spectroscopy at the speed modern research demands.
Key features and benefits
- Simple operation suitable for users of all skill levels
- Faster data visualization enabled by advanced imaging software
- Advanced particle analysis for rapid identification and analysis of microscopic contaminants
- 3D confocal imaging for non-destructive, non-invasive three-dimensional chemical and molecular investigations
- Terrain Mapping to characterize uneven sample surfaces and easily acquire in-focus Raman images
- Intuitive workflow designed for demanding applications to maximize sample throughput
- Automated calibration to improve efficiency
- High measurement accuracy supported by:
- Automatic alignment and calibration with no tools required
- Automatic background compensation
- Rapid system reconfiguration within seconds – pre-aligned lasers, filters, and gratings can be changed without tools
- Fast spectral analysis and interpretation using powerful Thermo Scientific™ OMNIC™xi Software
- Advanced autofocus and morphological analysis to track positions across uneven surfaces
- Visualization tools for extracting chemical contrast and identifying and ranking features of interest

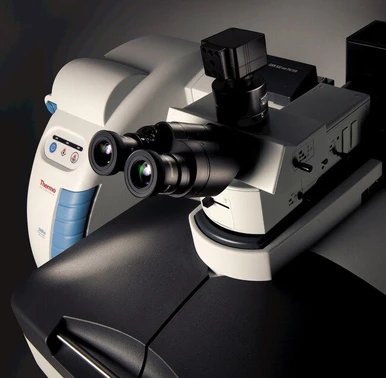

Thermo Scientific DXR3xi Raman Imaging Microscope
Laser safety
- Microscope designed and independently certified as Class 1 laser safe
- Optional fiber optic accessories and selected components are Class 3b laser devices, requiring appropriate laser safety measures and protective eyewear
- Laser path is physically blocked from the visual viewing path to prevent eye exposure during observation

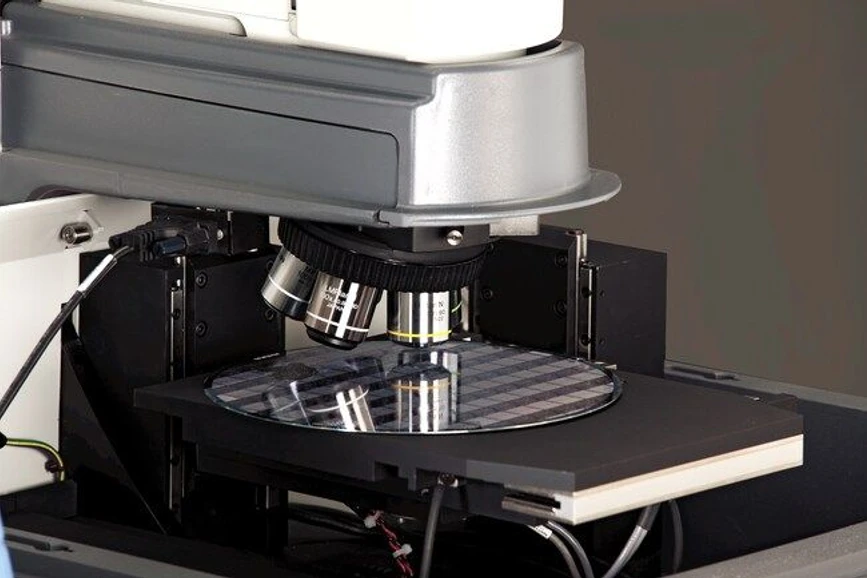

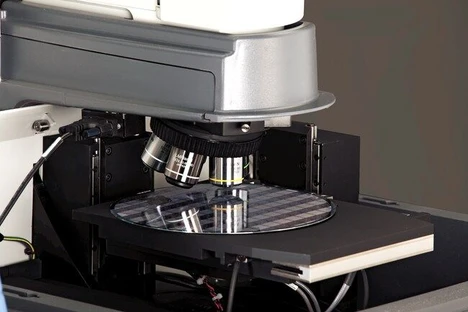

Thermo Scientific DXR3xi Raman Imaging Microscope
Applications
- Nanotechnology
- Microplastics analysis
- Polymer and chemical analysis
- Electronics
- Materials science
- Academic research
- Pharmaceutical research
- Geology

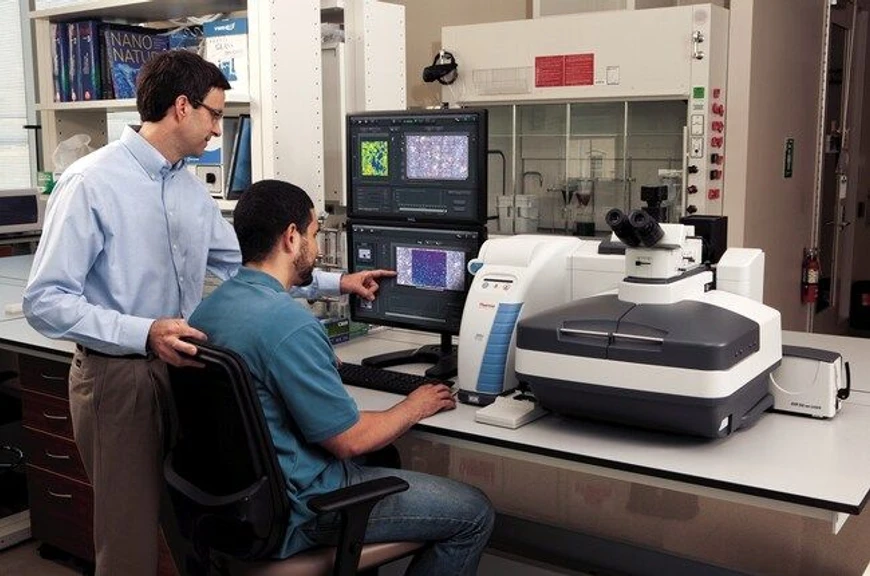

Thermo Scientific DXR3xi Raman Imaging Microscope
Specifications
- Electrical Requirements: 100/240 V, 47/63 Hz
- Electronic Records and Signatures: 21CFR Part 11
- For Use With (Application): Nanotechnology, Material science, Academic research, Pharmaceutical, Geology, Microplastics, Polymer/Chemical and Electronics
- Laser Power: Fine Laser Power Control: Power controlled and reported at samples in 0.1 mW increments
- Model: DXR3xi Raman Imaging Microscope
- Operating Temperature Range: 16°C to 27°C
- Resolution: Spatial: 0.5 µm; Confocal Depth: 2 µm
- Software Details: Data analysis and spectral interpretation with powerful Thermo Scientific™ OMNIC™xi Software
- Wavelength Range: 455 nm; 532 nm high brightness; 532 nm high power; 633 nm high brightness; 633 nm high power; 780 nm
- Type: Raman Imaging Microscope
- Unit Size: Each
