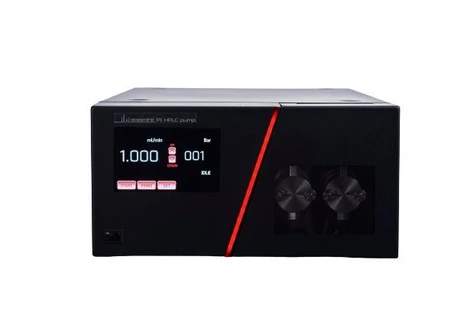

Watrex Streamline™ P1 HPLC Pump, Stainless Steel

The Watrex Streamline™ P1 pump is a versatile and powerful dual-piston HPLC pump.

Streamline P1 pump, stainless steel fully meets the demanding requirements for HPLC pumps and can be combined seamlessly with HPLC detectors and instruments from other manufacturers.<blockquote>Price 4 935 € ex VAT</blockquote>In the analytical version of the pump, the flow rate range from 0.001 ml/min to 10 ml/min is adjustable in 1 ul increments with a maximum working pressure of 42 MPa (6,000 psi). Flow rate adjustment accuracy is ±1% and flow rate variation is better than ±0.1%. The pump’s extremely smooth flow profile is ensured by an efficient pulse damper and optimized cam shape.A unique feature is the active piston and seal rinse, which prevents crystallization of buffers. A touch screen display on the front panel allows intuitive control of the pump.The display shows the flow rate, the current pressure and the pump is equipped with pressure limits. A PRIME function is also directly available for flushing at increased flow rates.<figure class="image"><img style="aspect-ratio:611/408;" src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_Streamline_P1_Pump_Stainless_Steel_23a7bf9f11.jpg" alt="Watrex: Streamline™ P1 Pump, Stainless Steel." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Watrex_Streamline_P1_Pump_Stainless_Steel_23a7bf9f11.jpg 234w," sizes="100vw" width="611" height="408"></figure><h3>TECHNICAL SPECIFICATION</h3><ul><li>Flow Rates: 0.001 to 10.000 mL/min</li><li>Pressure: 0 to 6,000 psi (42 MPa)</li><li>Flow precision: &gt; 0.2% RSD</li><li>Flow accuracy: ± 1 % @ 1mL/min and 7 MPa,</li><li>Pressure accuracy: ± 2% of full-scale, with 80:20 H2O/IPA @ 7 MPa</li><li>Pulsation: ± 0.5 % @ 1mL/min and 7 MPa</li><li>Remote inputs: USB</li></ul>You can also visit this product on the <a target="_blank" rel="noopener noreferrer" href="https://watrex.com/obchod/chromatography/pumps/isocratic-pumps/streamline-p1-pump-stainless-steel/?utm_source=labrulez&amp;utm_medium=propagace&amp;utm_campaign=labrulez_produkty">Watrex website</a>.

SIELC Alltesta Mini Syringe Pump

Alltesta™ Ultra High Pressure Mini Syringe Pump is designed to produce a steady, high pressure, pulsation-free flow, so there is no need for bulky dampeners, mixers, and precision check valve arrangements.

Alltesta™ Ultra High Pressure Mini Syringe Pump is designed to produce a steady, high pressure, pulsation-free flow, so there is no need for bulky dampeners, mixers, and precision check valve arrangements. It can refill prior to each run in less than a minute, and can produce flow rates from as low 1 μL/min to as fast as 4000 μL/min with pressure up to 4000 psi (285 bar).
The Mini Syringe Pump allows for several communication options via its USB/Serial port. Just like the rest of our Alltesta™ line of devices, our serial protocol allows to control and automate every function of the device. We also provide free Windows-based software allowing full control of the device.
<h4>Specifications</h4>
<ul>
<li>Syringe volume: 5.8 mL</li>
<li>Power Requirements 24 VDC</li>
<li>Current Requirements Up to 1.5 A</li>
<li>Dimensions (WHL) 63x167x128 mm / 2.48×6.57×5.04 in</li>
<li>Weight 1.65 kg / 3.7 lb</li>
<li>Flow Rate Range 0.001 to 4 mL/min</li>
<li>Speed Accuracy 1% of full-scale</li>
<li>Linearity Full Range 0.001 to 4.0 mL/min</li>
<li>Pressure 4000 psi (285 bar) continuous</li>
<li>Pressure accuracy ±1 psi</li>
<li>Operating Temperature 0 to 40° C, non-condensing</li>
<li>Inlet/Outlet Thread 10-32 UNF compression type</li>
<li>Materials in contact with liquid SS316, PTFE, PEEK</li>
<li>Communication USB virtual serial port</li>
</ul>
<h4>Software</h4>
The Mini Syringe Pump can be controlled:
<ul>
<li>directly through your software via serial commands (Alltesta™ protocol available upon request, please contact us at support@sielc.com),</li>
<li>remotely through our cloud software (as a part of <a href="https://lcms.labrulez.com/products/1242">Alltesta™ Gradient Automated Analyzer</a> and <a href="https://lcms.labrulez.com/products/1243">Alltesta™ Cromite Analyzer</a>.),</li>
<li>directly via our demo software, allowing to learn the whole functionality of the unit (<a href="https://sielc.com/wp-content/uploads/2022/12/Alltesta_Pump_Control_Windows_10.zip">Windows 10, 32/64bit</a>, 5Mb; <a href="https://sielc.com/wp-content/uploads/2022/12/Alltesta_Pump_Control_Windows_7.zip">Windows 7, 32/64bit</a>, 126Mb)</li>
</ul>
Serial Communication Drivers are available <a href="https://ftdichip.com/drivers/vcp-drivers/">here</a>.
<h4>Available Custom Options</h4>
Metal-free version of the pump includes no metal contact pump head and can be operated up to 4000 psi.

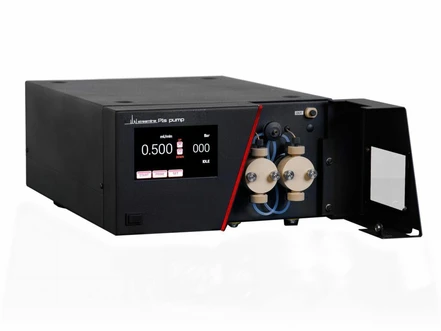

Watrex Streamline™ P1 HPLC Pump, PEEK

Streamline P1 pump, PEEK fully meets the demanding requirements for HPLC pumps and can be combined seamlessly with HPLC detectors and instruments from other manufacturers.<blockquote>Price 4 935 € ex VAT</blockquote>In the analytical version of the pump, the flow rate range from 0.001 ml/min to 10 ml/min is adjustable in 1 ul increments with a maximum working pressure of 42 MPa (6,000 psi). Flow rate adjustment accuracy is ±1% and flow rate variation is better than ±0.1%. The pump’s extremely smooth flow profile is ensured by an efficient pulse damper and optimized cam shape.A unique feature is the active piston and seal rinse, which prevents crystallization of buffers. A touch screen display on the front panel allows intuitive control of the pump.The display shows the flow rate, the current pressure and the pump is equipped with pressure limits. A PRIME function is also directly available for flushing at increased flow rates.<figure class="image"><img style="aspect-ratio:1024/768;" src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_Streamline_P1_Pump_PEEK_dbc4418900.jpg" alt="Watrex: Streamline™ P1 Pump, PEEK." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Watrex_Streamline_P1_Pump_PEEK_dbc4418900.jpg 208w," sizes="100vw" width="1024" height="768"></figure><h3>TECHNICAL SPECIFICATION</h3><ul><li>Flow Rates: 0.001 to 10.000 mL/min</li><li>Pressure: 0 to 6,000 psi (42 MPa)</li><li>Flow precision: &gt; 0.2% RSD</li><li>Flow accuracy: ± 1 % @ 1mL/min and 7 MPa,</li><li>Pressure accuracy: ± 2% of full-scale, with 80:20 H2O/IPA @ 7 MPa</li><li>Pulsation: ± 0.5 % @ 1mL/min and 7 MPa</li><li>Remote inputs: USB</li></ul>

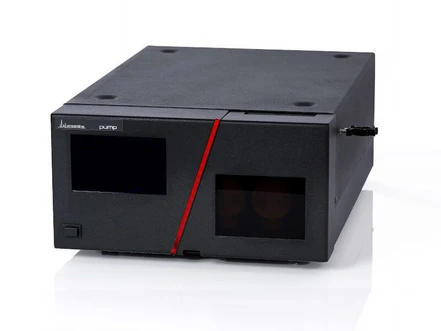

Watrex Streamline™ P1q HPLC Pump, PEEK

Streamline P1g is a PEEK quaternary gradient pump that offers low pressure mixing of up to four mobile phase components with better than 1% accuracy.

Streamline P1g is a PEEK quaternary gradient pump that offers low pressure mixing of up to four mobile phase components with better than 1% accuracy.<blockquote>Price 10 572 € ex VAT</blockquote>An integrated four-channel degasser ensures trouble-free mixing and pumping of the mobile phase. In the analytical version of the pump, the flow rate range from 0.001 ml/min to 10 ml/min is adjustable to 0.001 ml/min with a maximum working pressure of&nbsp;35 MPa (5,000 psi). Flow rate adjustment accuracy is ±1% and flow rate variation is better than ±0.1%. A unique feature is an active piston and seal rinse that prevents crystallization of buffers.&nbsp;A touch screen display on the front panel allows intuitive control of the pump. The display shows flow rate and pumped composition. Pump control and gradient programming is provided by a software module in <a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/999">Clarity software</a> (DataApex). The PRIME function is also directly available for flushing at increased flow rates.<figure class="image"><img style="aspect-ratio:800/600;" src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_Streamline_P1q_HPLC_Pump_PEEK_c4ca5fdaa4.jpg" alt="Watrex: Streamline™ P1q HPLC Pump, PEEK" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Watrex_Streamline_P1q_HPLC_Pump_PEEK_c4ca5fdaa4.jpg 208w," sizes="100vw" width="800" height="600"></figure><h3>PUMP FEATURES</h3><ul><li>Each pump has a single stepper motor driven, dual head positive displacement pump (pump heads 180° out of phase)</li><li>PEEK pump heads and fluid path</li><li>Incorporates a diaphragm-type pulse damper, which reduces pulsation in the system by as much as 90% and includes an isolated pressure transducer (i.e., the transducer adds no dead volume).</li><li>Ruby/Sapphire Check Valves (1/16” ball)</li><li>Front panel flow adjustment in 0.001 mL/min increments</li><li>Upper and Lower Pressure Limits: Automatically turns the pump OFF if the system pressure exceeds the maximum pressure limit, or drops below minimum pressure limit</li><li>Microprocessor advanced control with advanced pre-compression algorithm and user calibration feature</li><li>Back panel USB communications port for complete control and status monitoring; Clarity Driver available</li><li>Automatic piston wash (self-flush)</li></ul><h3>TECHNICAL SPECIFICATION</h3><ul><li>Flow Rates: 0.001 ml/min – 10 ml/min with step 0.001 ml/min</li><li>Pressure: 35 MPa/5000 psi</li><li>Pulsation: ± 1% @ from 7 MPa to 42 MPa</li><li>Pressure Accuracy: ± 2% of full-scale, with IPA</li><li>Flow Accuracy:&nbsp;better than ± 1% @ 10mL/min</li><li>Flow Precision: better then 0.1% RSD or 0.2 min SD, whichever is greater, across the full flow range, 20 MPa, with degassed methanol</li><li>Gradient Accuracy:&nbsp;1 % (between 10% and 90% mixing ratios)</li><li>Remote control: USB</li><li>I/O connector:&nbsp;Start, Stop, Status, Error</li></ul>You can also visit this product on the <a target="_blank" rel="noopener noreferrer" href="https://watrex.com/obchod/chromatography/pumps/gradient-pumps/streamline-p1q-pump-peek/?utm_source=labrulez&amp;utm_medium=propagace&amp;utm_campaign=labrulez_produkty">Watrex website</a>.

Watrex Streamline™ P1q HPLC Pump, Stainless Steel

Streamline P1g is a stainless steel quaternary gradient pump that offers low pressure mixing of up to four mobile phase components with better than 1% accuracy.

Streamline P1g is a stainless steel quaternary gradient pump that offers low pressure mixing of up to four mobile phase components with better than 1% accuracy.<blockquote>Price 10 572 € ex VAT</blockquote>An integrated four-channel degasser ensures trouble-free mixing and pumping of the mobile phase. In the analytical version of the pump, the flow rate range from 0.001 ml/min to 10 ml/min is adjustable to 0.001 ml/min with a maximum working pressure of 42 MPa (6,000 psi). Flow rate adjustment accuracy is ±1% and flow rate variation is better than ±0.1%. A unique feature is an active piston and seal rinse that prevents crystallization of buffers.A touch screen display on the front panel allows intuitive control of the pump. The display shows flow rate and pumped composition. Pump control and gradient programming is provided by a software module in <a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/999">Clarity software</a> (DataApex). The PRIME function is also directly available for flushing at increased flow rates.<figure class="image"><img style="aspect-ratio:800/600;" src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_Streamline_P1q_HPLC_Pump_PEEK_c4ca5fdaa4.jpg" alt="Watrex: Streamline™ P1q HPLC Pump, Stainless Steel" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Watrex_Streamline_P1q_HPLC_Pump_PEEK_c4ca5fdaa4.jpg 208w," sizes="100vw" width="800" height="600"></figure><h3>PUMP FEATURES</h3><ul><li>Each pump has a single stepper motor driven, dual head positive displacement pump (pump heads 180° out of phase)</li><li>316 Stainless Steel pump heads and fluid path</li><li>Incorporates a diaphragm-type pulse damper, which reduces pulsation in the system by as much as 90% and includes an isolated pressure transducer (i.e., the transducer adds no dead volume).</li><li>Ruby/Sapphire Check Valves (1/16” ball)</li><li>Front panel flow adjustment in 0.001 mL/min increments</li><li>Upper and Lower Pressure Limits: Automatically turns the pump OFF if the system pressure exceeds the maximum pressure limit, or drops below minimum pressure limit</li><li>Microprocessor advanced control with advanced pre-compression algorithm and user calibration feature</li><li>Back panel USB communications port for complete control and status monitoring; Clarity Driver available</li><li>Automatic piston wash (self-flush)</li></ul><h3>TECHNICAL SPECIFICATION</h3><ul><li>Flow Rates: 0.001 ml/min – 10 ml/min with step 0.001 ml/min</li><li>Pressure: 42 MPa/6000 psi</li><li>Pulsation: ± 1% @ from 7 MPa to 42 MPa</li><li>Pressure Accuracy: ± 2% of full-scale, with IPA</li><li>Flow Accuracy:&nbsp;better than ± 1% @ 10mL/min</li><li>Flow Precision: better then 0.1% RSD or 0.2 min SD, whichever is greater, across the full flow range, 20 MPa, with degassed methanol</li><li>Gradient Accuracy:&nbsp;1 % (between 10% and 90% mixing ratios)</li><li>Remote control: USB</li><li>I/O connector:&nbsp;Start, Stop, Status, Error</li></ul>You can also visit this product on the <a target="_blank" rel="noopener noreferrer" href="https://watrex.com/obchod/chromatography/pumps/gradient-pumps/streamline-p1q-pump-stainless-steel/?utm_source=labrulez&amp;utm_medium=propagace&amp;utm_campaign=labrulez_produkty">Watrex website</a>.

Watrex P102 HPLC pump, PEEK, biocompatible

Watrex P102 high performance liquid chromatography (HPLC) pump is designed to be a reliable component within a basic analytical or sophisticated research instruments.

Watrex P102 high performance liquid chromatography (HPLC) pump is designed to be a reliable component within a basic analytical or sophisticated research instruments.<blockquote>Price: 4 290<bdi>&nbsp;€ ex VAT</bdi></blockquote>While ideal for HPLC applications, the Model P102 pump is also useful as a metering pump for general laboratory or industrial use. The pump features dual self flushing pump heads with overlapping cams for reduced pulsation.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_P102_HPLC_pump_PEEK_5321aceaa0.jpg" alt="Watrex: P102 HPLC pump, PEEK" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Watrex_P102_HPLC_pump_PEEK_5321aceaa0.jpg 208w," sizes="100vw" width="1024" height="768"><h3>KEY FEATURES</h3>Double Piston Design: The double piston design ensures exceptional accuracy and precision in the delivery of solvents, making it ideal for applications that demand the utmost reliability.Wide range of operating conditions: With a wide range of flow rates, from the minutest quantities to larger volumes, our HPLC pump adapts to your diverse experimental needs without compromising precision. Handle high-pressure applications with confidence. Our pump delivers a maximum pressure of&nbsp;35 MPa, ensuring efficiency and reliability in even the most challenging chromatographic separations.Stainless Steel or PEEK Versions: Choose the material that suits your needs. Opt for the durability of stainless steel or the biocompatible advantages of PEEK. Both versions maintain high chemical resistance, making them suitable for a diverse range of chromatographic solvents.Efficient Pulse Dampener: Our integrated pulse dampener minimizes pressure fluctuations, ensuring a smooth and controlled flow. Experience enhanced separation quality and purity, thanks to the efficient dampening of pulsations.Versatile Applications: Whether you’re conducting routine analytical experiments or pushing the boundaries of chromatographic research, our pump caters to a wide array of applications, ensuring versatility in your lab.Demanding Dosing Applications: Excel in applications that demand precise and stable dosing. Achieve a stable jet stream for your research experiments, ensuring accuracy and reliability in every sampling.High-Quality Construction: Crafted with durability in mind, our pump is built to withstand the rigors of daily laboratory use. The robust construction ensures longevity and reliability.Chemical Compatibility: The pump is designed to handle a variety of solvents with ease, providing excellent chemical compatibility. This feature is crucial for researchers working with diverse samples and experimental conditions.Intuitive Controls: The user-friendly interface simplifies pump operation, allowing for easy programming and monitoring. Spend less time on instrument setup and more time focusing on your research.Applications: Whether you’re in pharmaceuticals, biotechnology, environmental analysis, or academic research, our HPLC pump is the go-to solution for achieving unparalleled precision in liquid chromatography.Conclusion: Elevate your chromatography experiments with our HPLC pump—where precision meets reliability. Experience the future of liquid chromatography and unlock new possibilities in your laboratory. Contact us today to discover how our HPLC pump can transform your research endeavors.<h3>TECHNICAL SPECIFICATION</h3><ul><li>Flow Rates: 0,01 ml/min – 9,99 ml/min with step 0.01 ml/min (analytical)</li><li>Pressure: 35 Mpa/5000 psi (analytical, PEEK)</li><li>Flow precision: ± 0,2% RSD @ 1mL/min. and 7 MPa psi&nbsp;</li><li>Flow accuracy: ± 1% @ 1mL/min. and 7 MPa psi (analytical)</li><li>Pressure accuracy: ± 2% of full-scale, with 80:20 H2O/IPA @ 7 MPa</li><li>Pulsation: better than ± 0.5% @ 1mL/min. and 7 MPa&nbsp;</li><li>Remote control: USB</li><li>Remote control: Start, Stop, Status, Error</li></ul>You can also visit this product on the <a target="_blank" rel="noopener noreferrer" href="https://watrex.com/obchod/chromatography/pumps/isocratic-pumps/p102-hplc-pump-dual-head-peek-biocompatible/?utm_source=labrulez&amp;utm_medium=propagace&amp;utm_campaign=labrulez_produkty">Watrex website</a>.

Watrex Streamline™ Binary High Pressure Gradient system, Stainless Steel

Binary high pressure gradient Streamline system in stainless steel version, consisting of two P1m+P1s pumps with programmable mixing of two mobile phase components at high pressure with 0.1% accuracy.

Binary high pressure gradient Streamline system in stainless steel version, consisting of two P1m+P1s pumps with programmable mixing of two mobile phase components at high pressure with 0.1% accuracy.<blockquote>Price 9 333 € ex VAT</blockquote>An integrated two-channel degasser is a recommended part locvated on the top in the solvent cabinet. In the analytical version, the flow rate range from 0.001 ml/min to 10 ml/min is adjustable to 0.001 ml/min accuracy with a maximum working pressure of 42 MPa (6,000 psi). Flow rate adjustment accuracy is ±1% and flow rate variation is better than ±0.1%. A unique feature is an active piston and seal rinse that prevents crystallization of buffers.A touch screen display on the front panel allows intuitive control of the pump. The display shows the flow rate. A PRIME function is also directly available for flushing at increased flow rates. A cabinet is included for placing bottles with mobile phases. Control and programming of the gradient is done from the Clarity data station.<figure class="image"><img style="aspect-ratio:800/600;" src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_Streamline_P1q_HPLC_Pump_PEEK_c4ca5fdaa4.jpg" alt="Watrex: Streamline™ Binary High Pressure Gradient system, Stainless Steel" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Watrex_Streamline_P1q_HPLC_Pump_PEEK_c4ca5fdaa4.jpg 208w," sizes="100vw" width="800" height="600"></figure><h3>PUMP FEATURES</h3><ul><li>Each pump has a single stepper motor driven, dual head positive displacement pump (pump heads 180° out of phase)</li><li>316 Stainless Steel pump heads and fluid path</li><li>Incorporates a diaphragm-type pulse damper, which reduces pulsation in the system by as much as 90% and includes an isolated pressure transducer (i.e., the transducer adds no dead volume).</li><li>Ruby/Sapphire Check Valves (1/16” ball)</li><li>Front panel flow adjustment in 0.001 mL/min increments</li><li>Upper and Lower Pressure Limits: Automatically turns the pump OFF if the system pressure exceeds the maximum pressure limit, or drops below minimum pressure limit</li><li>Microprocessor advanced control with advanced pre-compression algorithm and user calibration feature</li><li>Back panel USB communications port for complete control and status monitoring; Clarity Driver available</li><li>Automatic piston wash (self-flush)</li></ul><h3>TECHNICAL SPECIFICATION</h3><ul><li>Flow Rates: 0.001 ml/min – 10 ml/min with step 0.001 ml/min</li><li>Pressure: 42 MPa/6000 psi</li><li>Pulsation: ± 1% @ from 7 MPa to 42 MPa</li><li>Pressure Accuracy: ± 2% of full-scale, with IPA</li><li>Flow Accuracy:&nbsp;better than ± 1% @ 10mL/min</li><li>Flow Precision: better then 0.1% RSD or 0.2 min SD, whichever is greater, across the full flow range, 20 MPa, with degassed methanol</li><li>Remote control: USB</li><li>I/O connector:&nbsp;Start, Stop, Status, Error</li></ul>You can also visit this product on the <a target="_blank" rel="noopener noreferrer" href="https://watrex.com/obchod/chromatography/pumps/gradient-pumps/streamline-binary-high-pressure-gradient-system-stainless-steel/?utm_source=labrulez&amp;utm_medium=propagace&amp;utm_campaign=labrulez_produkty">Watrex website</a>.

Watrex Streamline™ Binary High Pressure Gradient system, PEEK

Binary high pressure gradient Streamline system in PEEK version, consisting of two P1m+P1s pumps with programmable mixing of two mobile phase components at high pressure with 0.1% accuracy.

Binary high pressure gradient Streamline system in PEEK version, consisting of two P1m+P1s pumps with programmable mixing of two mobile phase components at high pressure with 0.1% accuracy (between 10% and 90% mixing ratios).<blockquote>Price 9 333 € ex VAT</blockquote>An integrated two-channel degasser is a recommended part locvated on the top in the solvent cabinet. In the analytical version, the flow rate range from 0.001 ml/min to 10 ml/min is adjustable to 0.001 ml/min accuracy with a maximum working pressure of 35 MPa (5,000 psi). Flow rate adjustment accuracy is ±1% and flow rate variation is better than ±0.1%. A unique feature is an active piston and seal rinse that prevents crystallization of buffers.A touch screen display on the front panel allows intuitive control of the pump. The display shows the flow rate. A PRIME function is also directly available for flushing at increased flow rates. A cabinet is included for placing bottles with mobile phases. Control and programming of the gradient is done from the Clarity data station.<figure class="image"><img style="aspect-ratio:800/600;" src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_Streamline_P1q_HPLC_Pump_PEEK_c4ca5fdaa4.jpg" alt="Watrex: Streamline™ Binary High Pressure Gradient system, PEEK" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Watrex_Streamline_P1q_HPLC_Pump_PEEK_c4ca5fdaa4.jpg 208w," sizes="100vw" width="800" height="600"></figure><h3>PUMP FEATURES</h3><ul><li>Each pump has a single stepper motor driven, dual head positive displacement pump (pump heads 180° out of phase)</li><li>PEEK pump heads and fluid path</li><li>Incorporates a diaphragm-type pulse damper, which reduces pulsation in the system by as much as 90% and includes an isolated pressure transducer (i.e., the transducer adds no dead volume).</li><li>Ruby/Sapphire Check Valves (1/16” ball)</li><li>Front panel flow adjustment in 0.001 mL/min increments</li><li>Upper and Lower Pressure Limits: Automatically turns the pump OFF if the system pressure exceeds the maximum pressure limit, or drops below minimum pressure limit</li><li>Microprocessor advanced control with advanced pre-compression algorithm and user calibration feature</li><li>Back panel USB communications port for complete control and status monitoring; Clarity Driver available</li><li>Automatic piston wash (self-flush)</li></ul><h3>TECHNICAL SPECIFICATION</h3><ul><li>Flow Rates: 0.001 ml/min – 10 ml/min with step 0.001 ml/min</li><li>Pressure: 35 MPa/5000 psi</li><li>Pulsation: ± 1% @ from 7 MPa to 42 MPa</li><li>Pressure Accuracy: ± 2% of full-scale, with IPA</li><li>Flow Accuracy:&nbsp;better than ± 1% @ 10mL/min</li><li>Flow Precision: better then 0.1% RSD or 0.2 min SD, whichever is greater, across the full flow range, 20 MPa, with degassed methanol</li><li>Remote control: USB</li><li>I/O connector:&nbsp;Start, Stop, Status, Error</li></ul>You can also visit this product on the <a target="_blank" rel="noopener noreferrer" href="https://watrex.com/obchod/chromatography/pumps/gradient-pumps/streamline-binary-high-pressure-gradient-system-peek/?utm_source=labrulez&amp;utm_medium=propagace&amp;utm_campaign=labrulez_produkty">Watrex website</a>.

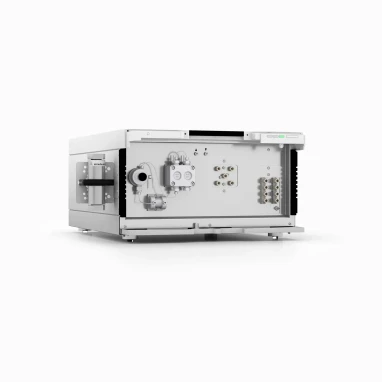

KNAUER High Precision AZURA P 6.1L HPLC Pump

KNAUER AZURA P 6.1L HPLC pump with up to 1000 bar, precise gradient control, and low pulsation for reliable UHPLC workflows.

The KNAUER AZURA P 6.1L is a high-precision analytical HPLC pump designed for accurate and reproducible solvent delivery in both HPLC and UHPLC applications.The pump combines essential features of a modern pumping system, including low pulsation, high pressure capability, precise gradient formation, and flexible configuration. It is available in both HPG (high-pressure gradient) and LPG (low-pressure gradient) versions, with a flow range up to 50 mL/min.The system uses a dual serial piston mechanism with active pulsation compensation, ensuring excellent flow stability under all conditions. A low-dead-volume microfluidic mixer enables efficient and precise solvent mixing.Different pump heads are available:<ul><li>up to 10 mL/min at 862 bar</li><li>up to 5 mL/min at 1000 bar</li></ul>Optional configurations include biocompatible materials (PEEK, ceramic, titanium) and specialized setups for normal phase applications (e.g., hexane, heptane).<h4>Key Features</h4><ul><li>High-precision analytical HPLC/UHPLC pump</li><li>Pressure up to 1000 bar</li><li>Flow rates up to 50 mL/min</li><li>Dual piston system with low pulsation</li><li>Active pulsation compensation</li><li>HPG and LPG gradient configurations</li><li>Microfluidic mixer (50–600 µl)</li><li>RFID pump head detection</li><li>Optional degasser</li><li>Biocompatible configurations available</li><li>Robust operation with demanding solvents</li></ul><h3>Technical Specifications</h3><h4>Solvent Delivery</h4><ul><li>Pump type: analytical HPLC pump</li><li>Mechanism: dual serial piston</li><li>Flow range: 0.001 – 50 mL/min</li><li>Max pressure: up to 1000 bar</li><li>Flow accuracy: ± 0.25%</li><li>Precision: ≤ 0.04% RSD</li></ul><h4>Gradient</h4><ul><li>Range: 0–100% (0.1% steps)</li><li>HPG accuracy: ± 0.3%</li><li>HPG precision: &lt; 0.1% RSD</li><li>LPG accuracy: ± 0.3% to ± 2%</li><li>LPG precision: &lt; 0.5% RSD</li></ul><h4>Mixing</h4><ul><li>Microfluidic mixer</li><li>Volumes: 50 / 100 / 200 / 400 / 600 µl</li><li>Low dead volume</li></ul><h4>Degasser (optional)</h4><ul><li>2–4 channels</li><li>Max flow: 10 mL/min per channel</li><li>Residual O₂: &lt; 0.5 ppm</li><li>Membrane: fluoropolymer</li></ul><h4>Materials</h4><ul><li>PEEK, Tefzel®, Systec AF</li><li>Optional biocompatible materials (titanium, ceramic)</li></ul><h4>Control &amp; Communication</h4><ul><li>LAN, analog inputs</li><li>Event outputs (TTL, relay)</li><li>Optional mobile control</li><li>RFID pump head detection</li></ul><h4>Operating Conditions</h4><ul><li>Temperature: 4–40 °C</li><li>Humidity: &lt; 90% non-condensing</li></ul><h4>Dimensions &amp; Power</h4><ul><li>Dimensions: 361 × 208 × 523 mm</li><li>Weight: 14.1 kg</li><li>Power supply: 100–240 V, 50–60 Hz</li><li>Power consumption: max 100 W</li></ul>

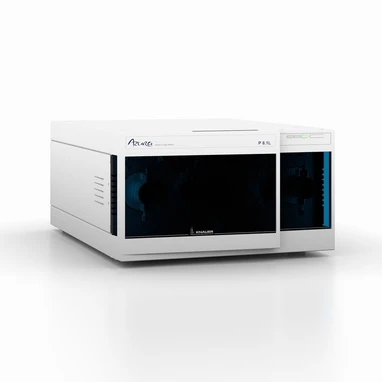

KNAUER High Precision AZURA P 8.1L UHPLC Pump

KNAUER AZURA P 8.1L UHPLC pump with up to 1240 bar, adaptive pulsation compensation, and high precision for demanding UHPLC applications.

The KNAUER AZURA P 8.1L is a high-performance UHPLC pump designed for ultra-fast and high-resolution chromatographic applications. With a maximum pressure of 1240 bar (124 MPa) and flow rates up to 5 mL/min, it meets the demands of modern UHPLC workflows.The pump features a dual serial piston mechanism combined with adaptive pulsation compensation, which operates independently of flow rate, pressure, and solvent type through real-time monitoring of eluent compressibility and variable piston stroke.Together with KNAUER’s advanced piston drive technology, this results in exceptional flow reproducibility under all operating conditions. High-precision in-house manufacturing ensures long piston seal lifetime and maximum system uptime.<h4>Key Features</h4><ul><li>UHPLC pump up to 1240 bar</li><li>Flow rates up to 5 mL/min</li><li>Dual serial piston system</li><li>Adaptive pulsation compensation</li><li>Excellent flow reproducibility</li><li>HPG gradient capability</li><li>Integrated 4-channel degasser</li><li>RFID pump head detection</li><li>Low baseline noise</li><li>High durability and long lifetime</li><li>Compatible with UHPLC and LC-MS systems</li></ul><h3>Technical Specifications</h3><h4>Solvent Delivery</h4><ul><li>Pump type: analytical UHPLC pump</li><li>Mechanism: dual serial piston</li><li>Max pressure: 1240 bar</li><li>Flow rate: up to 5 mL/min</li><li>Flow accuracy: ± 0.25%</li><li>Precision: ≤ 0.04% RSD</li></ul><h4>Gradient</h4><ul><li>Type: HPG (high-pressure gradient)</li><li>Range: 0–100% (0.1% steps)</li><li>Accuracy: ± 0.3%</li><li>Precision: &lt; 0.1% RSD</li></ul><h4>Degasser</h4><ul><li>Channels: 4</li><li>Max flow: 5 mL/min per channel</li><li>Residual O₂: &lt; 0.5 ppm</li><li>Technology: fluoropolymer membrane</li></ul><h4>Connections</h4><ul><li>Inlet: UNF 1/4-28 (1/8” tubing)</li><li>Outlet: UNF 10-32 (1/16” capillary)</li></ul><h4>Materials</h4><ul><li>PEEK, Tefzel®, Systec AF</li><li>Compatible with most solvents (except HCl and halogenated hydrocarbons)</li></ul><h4>Control &amp; Communication</h4><ul><li>LAN, analog inputs</li><li>Event outputs (TTL, relay)</li><li>Optional mobile control</li><li>RFID pump head detection</li></ul><h4>Safety &amp; Operating Conditions</h4><ul><li>Leak sensor</li><li>Soft start and programmable pressure limits</li><li>Temperature: 4–40 °C</li><li>Humidity: &lt; 90% non-condensing</li></ul><h4>Dimensions &amp; Power</h4><ul><li>Dimensions: 361 × 208 × 523 mm</li><li>Weight: 26.7 kg</li><li>Power supply: 100–240 V, 50–60 Hz</li><li>Power consumption: max 310 W</li></ul>

Products from category HPLC pumps - page 1
