Alltesta™ Ultra High Pressure Mini Syringe Pump is designed to produce a steady, high pressure, pulsation-free flow, so there is no need for bulky dampeners, mixers, and precision check valve arrangements. It can refill prior to each run in less than a minute, and can produce flow rates from as low 1 μL/min to as fast as 4000 μL/min with pressure up to 4000 psi (285 bar).
The Mini Syringe Pump allows for several communication options via its USB/Serial port. Just like the rest of our Alltesta™ line of devices, our serial protocol allows to control and automate every function of the device. We also provide free Windows-based software allowing full control of the device.
Specifications
- Syringe volume: 5.8 mL
- Power Requirements 24 VDC
- Current Requirements Up to 1.5 A
- Dimensions (WHL) 63x167x128 mm / 2.48×6.57×5.04 in
- Weight 1.65 kg / 3.7 lb
- Flow Rate Range 0.001 to 4 mL/min
- Speed Accuracy 1% of full-scale
- Linearity Full Range 0.001 to 4.0 mL/min
- Pressure 4000 psi (285 bar) continuous
- Pressure accuracy ±1 psi
- Operating Temperature 0 to 40° C, non-condensing
- Inlet/Outlet Thread 10-32 UNF compression type
- Materials in contact with liquid SS316, PTFE, PEEK
- Communication USB virtual serial port
Software
The Mini Syringe Pump can be controlled:
- directly through your software via serial commands (Alltesta™ protocol available upon request, please contact us at [email protected]),

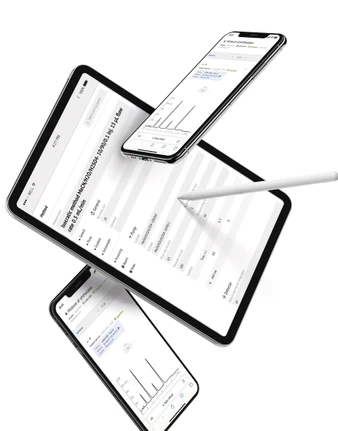

- remotely through our cloud software (as a part of Alltesta™ Gradient Automated Analyzer and Alltesta™ Cromite Analyzer.),
- directly via our demo software, allowing to learn the whole functionality of the unit (Windows 10, 32/64bit, 5Mb; Windows 7, 32/64bit, 126Mb)
Serial Communication Drivers are available here.
Available Custom Options
Metal-free version of the pump includes no metal contact pump head and can be operated up to 4000 psi.
