The Thermo Scientific™ Nicolet™ iG50 FTIR Spectrometer combines the analytical performance of a research-grade FTIR system with the robustness required for industrial environments. Designed for process monitoring, OEM integration, and demanding analytical applications, it offers a compact, configurable platform that can be easily integrated into manufacturing and process control systems.
The modular design supports a variety of optical components, detectors, and sampling interfaces, allowing the system to be tailored to specific application requirements. Its rack-mountable construction, stainless-steel enclosure, and built-in diagnostic capabilities make it suitable for continuous operation in industrial settings while maintaining excellent analytical performance.
The Nicolet iG50 provides high spectral resolution, excellent signal-to-noise performance, and rapid scan speeds for the characterization of complex gas mixtures and fast transient events. Dynamic optical alignment, automated performance verification, and user-replaceable components help maximize uptime and minimize maintenance requirements.

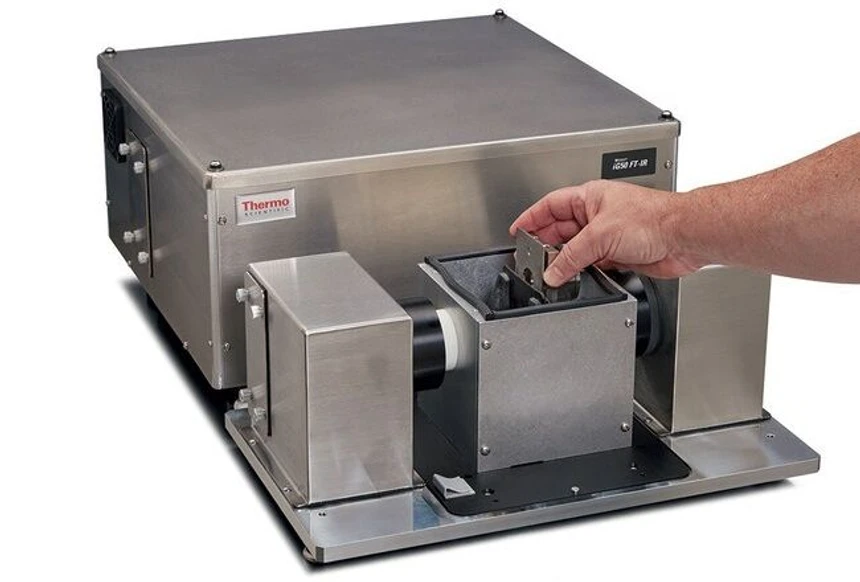

Thermo Scientific Nicolet iG50 FTIR Spectrometer
Key Features
- Research-grade FTIR performance in a rugged industrial platform

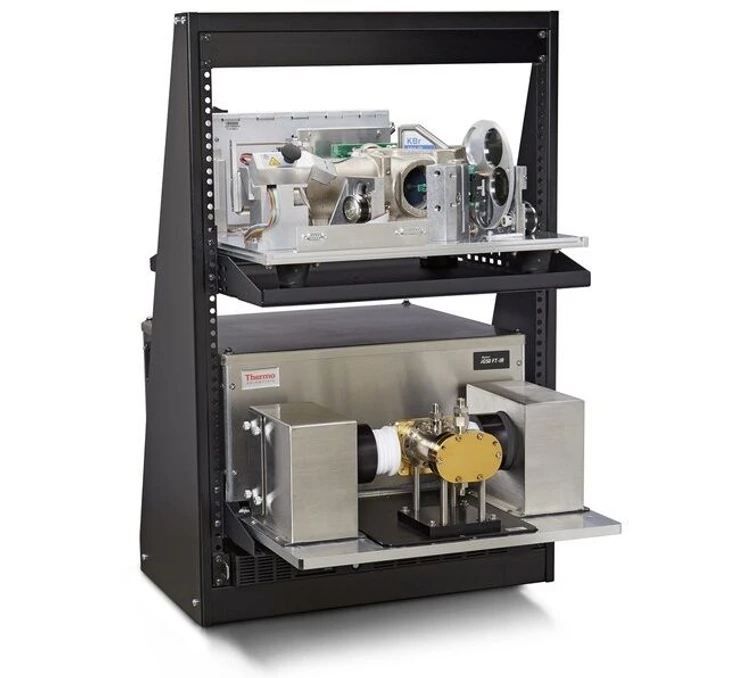

- Compact, rack-mountable design for OEM and process integration
- High spectral resolution for resolving complex gas spectra
- Excellent signal-to-noise ratio for low-level detection
- Rapid scanning capabilities for monitoring transient processes
- Support for dual-detector configurations
- Dynamic optical alignment for enhanced long-term stability
- Built-in diagnostics and automated performance verification
- Continuous on-board hardware monitoring
- User-replaceable source, laser, detector, power supply, and electronics modules
- Configurable front or side beam output options
- Thermo Scientific™ OMNIC™ Software included

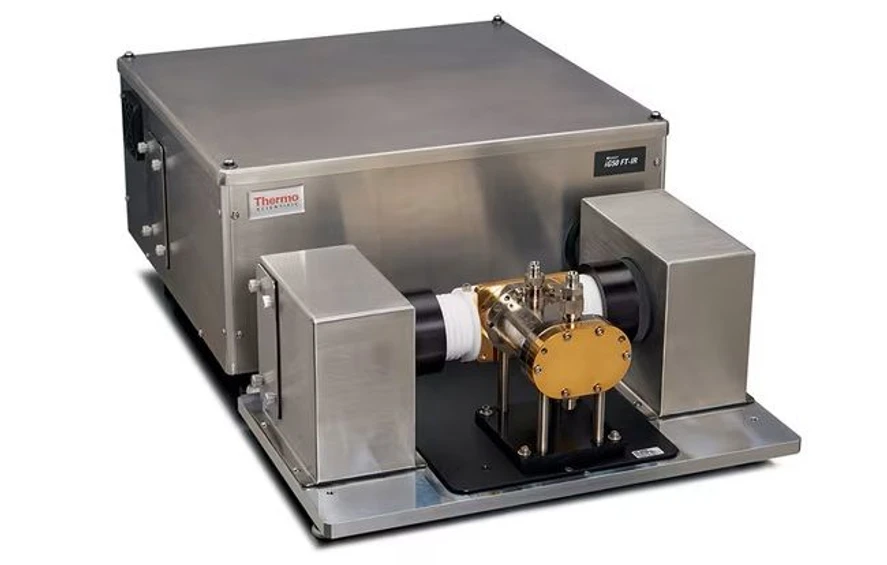

Thermo Scientific Nicolet iG50 FTIR Spectrometer
Applications
- Process gas analysis
- Process liquid monitoring
- Volatile organic compound (VOC) analysis
- Continuous emissions monitoring (CEM)
- Chemical process monitoring
- At-line film analysis
- Quality control laboratories
- Polymer and plastics analysis
- Pharmaceutical testing
- Forensic analysis
- Gemstone and materials analysis

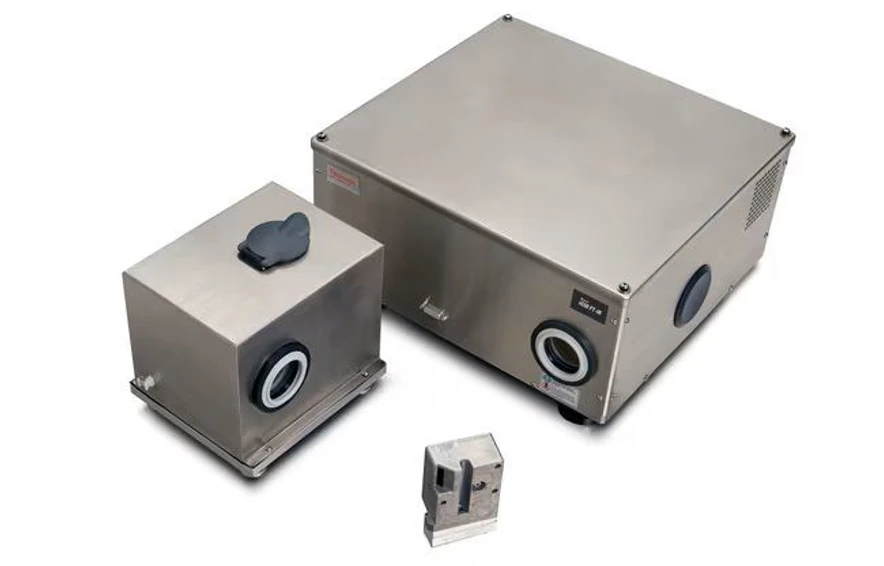

Thermo Scientific Nicolet iG50 FTIR Spectrometer
Technical Specifications
- Spectral range: 7800–350 cm⁻¹ (KBr beamsplitter), 6000–650 cm⁻¹ (ZnSe beamsplitter)
- Spectral resolution: 0.5 cm⁻¹
- Beam splitter options: Ge/KBr or ZnSe
- Detector options: TE-cooled DLaTGS detectors
- Source: Polaris™ high-stability, long-life IR source
- Wavenumber precision: Better than 0.01 cm⁻¹
- Interferometer: 90° Michelson dynamically aligned interferometer
- A/D converter: 24-bit
- Interface: USB 2.0
- Power requirements: 100/240 V, 50 Hz, 2.5 A
- Dimensions (W × D × H): 45 × 42 × 25 cm
- Weight: 29 kg

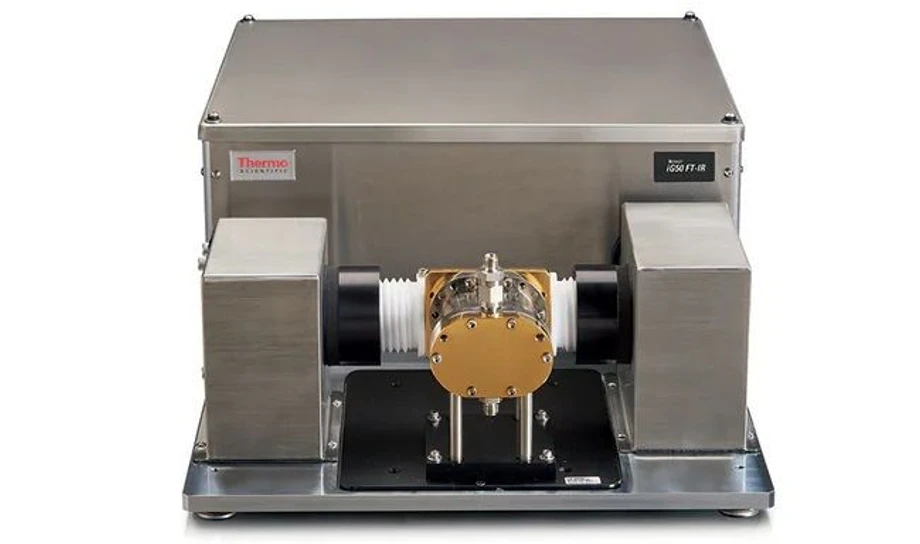

Thermo Scientific Nicolet iG50 FTIR Spectrometer
Standard Features
- 90° Michelson dynamically aligned interferometer
- Polaris™ high-stability, long-lifetime mid-IR source
- 1.5 in (38 mm) collimated front output beam
- Continuously variable iris aperture
- Aluminum-coated mirrors
- Validation/attenuation wheel
- 24-bit A/D converter
- Helium-Neon (HeNe) reference laser
- Configurable front or side beam output
- Automated performance verification testing
- Continuous hardware status monitoring
- Thermo Scientific™ OMNIC™ Software included
