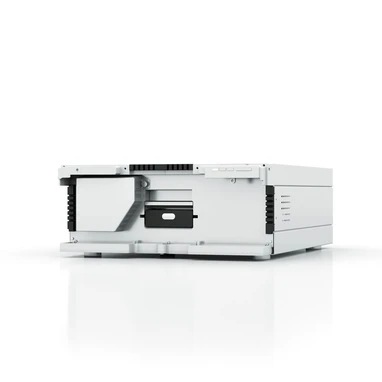

The KNAUER AZURA® DAD 6.1L is a high-end diode array detector designed for analytical, semi-preparative, preparative, and process liquid chromatography applications. Featuring an extended wavelength range of 190–1000 nm, KNAUER Polka-Dot optical technology, and a 1024-diode array, it delivers exceptional sensitivity, spectral resolution, and baseline stability.
The detector combines a high-brightness deuterium lamp and tungsten-halogen lamp to provide seamless UV and visible light detection. Optional LightGuide flow cells based on total internal reflection technology maximize light throughput while minimizing peak dispersion. An optional fiber-optic adapter enables physical separation of the flow cell from the detector, increasing safety when working with hazardous, explosive, or toxic compounds and protecting the detector from potential leaks at high flow rates.
Key Features
- High-end diode array detector for HPLC, UHPLC, and process chromatography
- Extended wavelength range from 190 to 1000 nm
- 1024-diode array with 0.8 nm pixel pitch
- KNAUER Polka-Dot optical technology for maximum sensitivity
- LightGuide flow cell technology for superior signal-to-noise ratio
- Wide range of analytical, semi-preparative, and preparative flow cells
- Optional fiber-optic adapter for remote flow cell positioning
- High-brightness deuterium and halogen lamps
- Internal holmium filter for wavelength verification
- Integrated leak sensor
- Front-access lamp replacement
- Compatible with ClarityChrom®, OpenLAB®, Chromeleon™, PurityChrom®, and Mobile Control
- Suitable for both laboratory and process applications
Technical Specifications
Detection System
- Detector type: Diode Array Detector (DAD)
- Number of diodes: 1024
- Pixel pitch: 0.8 nm per diode
- Detection channels:
- 8 digital channels
- 4 analog channels
- Light source:
- High-brightness deuterium lamp
- Tungsten-halogen lamp
- Wavelength range: 190–1000 nm
- Spectral resolution: <3.5 nm (FWHM)
- Slit width: 2.5 nm
- Wavelength accuracy: ±1 nm
- Wavelength repeatability: ±0.1 nm
Performance
- Noise: ±3.5 µAU at 254 nm
- Drift: 300 µAU/h at 254 nm
- Linearity: >2.5 AU at 274 nm
- Maximum data rate:
- 100 Hz via LAN
- 12.5 Hz via analog output
Flow Cells
- Flow cells sold separately
- Stainless-steel and bio-inert configurations available
- Optional LightGuide total-reflection technology
Control and Communication
- LAN (RJ-45)
- USB service interface
- Analog inputs and outputs
- Mobile Control stand-alone operation
- Full software integration with chromatography data systems
GLP Functions
- Lamp identification
- Lamp operating hours
- Lamp ignition count
- Comprehensive GLP reporting
Power and Dimensions
- Power supply: 100–240 V, 50–60 Hz
- Power consumption: 75 W
- Dimensions (W × H × D): 361 × 158 × 523 mm
- Weight: 13.8 kg
