The NiGen GC/HC is available in both a basic and HC version which completely removes hydrocarbons using a Pt/Pd catalyzer. It is capable of distributing 500 mL/min with greater than 99.9995% purity. It's designed to be connected to a dedicated AirComp compressor (can be purchased separately).
Parallel connection allows for up to 4 generators to be stacked in a tower configuration. It features a CPU with touch screen display, which can be linked to a generator using CAN-BUS. This enables monitoring of the operating status and provides access to the maintenance menu, alarm reports, and functional parameters. It is capable of supporting up to 12 FIDs or NPDs with makeup gas or up to 7 ECDs.

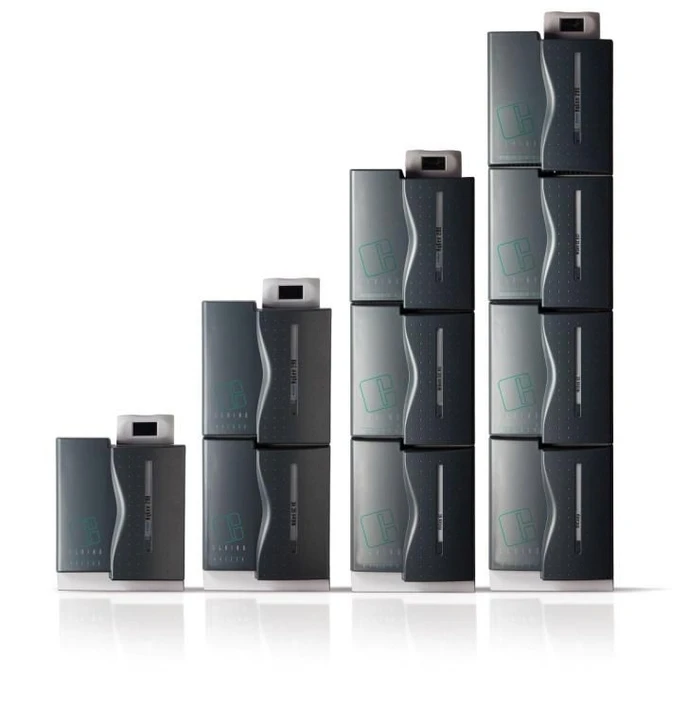

Organomation: NiGen GC - Modular configuration
Standard features
- Modular configuration
- Capacity to supply up to 12 FIDs/NPDs with makeup gas, or up to 7 ECDs or 5 S/S
- Easy, "plug and play" integration with the dedicated Brezza series air compressor AirComp
- Included Fast Start technology guarantees UHP after only 30 minutes
- HC model includes Pt/Pd to remove up to .1ppm of THC
- CPU with Touch Screen Display (connectable with CAN BUS) allows you to monitor the operational status
- CPU also has an Ethernet output for PC connection
Specification
Key Features:
- Flow Rate: 500 mL/min
- Output Pressure: 0 – 87 PSI (0 – 6 bar)
- Purity: > 99.9995%
- Total Hydrocarbons: < 0.1 ppm (HC model only)
Air Input Requirements:
- Particulates: ≤ 0.01 mm
- Oil Vapors: ≤ 0.01 mg/m³
- Moisture: ≤ 3 °C dew point (ATP)
- Minimum Pressure: 8 bar
- Flow Rate: 6 L/min
Electrical Requirements:
- NiGen GC: 115/230 V ±10%, 50–60 Hz, 50 W
- NiGen GC HC:
- 115 V ±10%, 60 Hz, 200 W
- 230 V ±10%, 50 Hz, 200 W
Additional Specifications:
- Protection Index: IP20
- Noise Level:
- < 50 dBA for 98% of operation
- < 60 dBA briefly during cycling
- Operating Temperature: 40 °F to 100 °F (5 °C to 40 °C)
- Environmental Humidity: Max 90% (non-condensing)
- Maximum Altitude: 2000 m (6561.68 ft)
Dimensions & Weight:
- GC Model:
- Height: 15.8" (40 cm)
- Weight: 63 lbs (28 kg)
- GC HC Model:
- Height: 18.6" (47 cm)
- Weight: 70.5 lbs (32 kg)
- Width: 14.9" (38 cm)
- Depth: 20.8" (53 cm)
Pneumatic Connections:
- Compressed Air Inlet: G 1/8” female
- Nitrogen Outlet: G 1/8” female
Warranty: 2 years
Accessories
- AirComp oil free compressor
- CPU: User interface with touch screen display Brezza version
- Installation kit
- Maintenance kit for 8,000 or 16,000 running hours
