XSelect CSH Phenyl-Hexyl columns provide you with alternative analyte selectivity compared to traditional reversed-phase columns and are a valuable tool for method development. The trifunctionally bonded C6 phenyl-ligand is a robust, low bleed sorbent that selectively retains polyaromatic compounds through pi-pi interactions. Packed in ultra-low dispersion hardware, 2.5 µm eXtended Performance [XP] columns enable exceptional separation performance, robustness and throughput for HPLC assays while enabling a seamless transition path toward UPLC adoption.

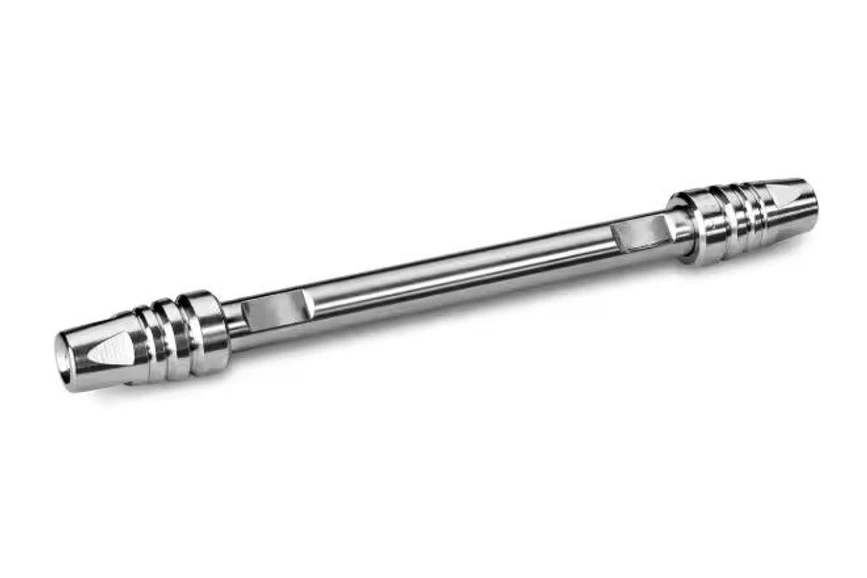

Waters: XSelect CSH Phenyl-Hexyl HPLC Column
Specifications
- Chemistry: Phenyl
- Separation Mode: Reversed Phase
- Particle Substrate: Hybrid
- pH Range Min: 1 pH
- pH Range Max: 11 pH
- Maximum Pressure: 10000 psi (690 Bar)
- Endcapped: Yes
- Bonding Technology: Phenyl-Hexyl
- Silanol Activity: Low
- Particle Shape: Spherical
- Pore Size: 130 Å
- System: UHPLC, UPLC
- Particle Technology: CSH
- USP Classification: L11
- Carbon Load: 14 %
The Waters XSelect CSH Phenyl-Hexyl HPLC Column is also available as:
Waters XSelect CSH Phenyl-Hexyl HPLC Column with eConnect Column Tag
- This column comes equipped with an electronic eConnect column tag containing unique column-specific information. These NFC-enabled device-tagged columns were developed to automatically identify, track and digitally trace column use history. eConnect columns can be used on any HPLC, but its advantages are unlocked when used with the Waters Alliance iS System running Empower software.
Waters: XSelect CSH Phenyl-Hexyl HPLC Column with eConnect Column Tag

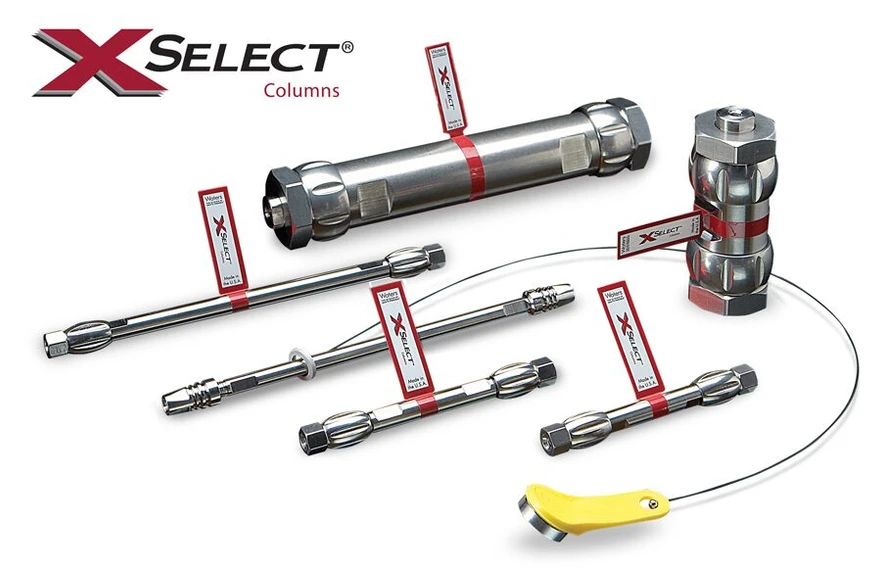

XSelect Columns
Achieve unmatched reproducibility with a wide range of selectivity
Quickly and easily develop robust methods compatible with all modern chromatographic detection modes and transfer them from lab to lab with the XSelect Column family.
Designed to help you achieve reproducible and highly selective chromatographic separations, the XSelect Column family features two base particles technologies, Charged Surface Hybrid (CSH) and High Strength Silica (HSS). With XSelect Columns, method development scientists like you can achieve a wide range of selectivities across all application areas, without compromising performance.
Overview
- Designed for selectivity and stability at low pH
- Superior peak shape for basic compounds
- Highest analyte mass loading available
- Excellent batch-to-batch reproducibility
- Ideal for rapid method development
- CSH Column chemistries: C18, Fluoro-Phenyl (PFP), and Phenyl-Hexyl, available in 2.5 XP, 3.5, 5 μm analytical and 10 μm OBD preparative sizes
- HSS Column chemistries: HSS C18, C18 SB, and T3, available in 2.5 XP, 3.5, and 5 μm particle sizes
- Prolonged column lifetimes with optional VanGuard Cartridges specifically designed using XSelect stationary phases
- Recommended Use: For improving selectivity, peak shape, and retentivity in methods development.
Waters: XSelect Columns
