Compact, versatile system for SEC and GPC applications
The AZURA SEC Compact systems offer an outstanding price-to-performance ratio and are the perfect solution for every laboratory entering the analytical world of GPC/SEC, for process control applications, or for limited-budget and educational laboratories.

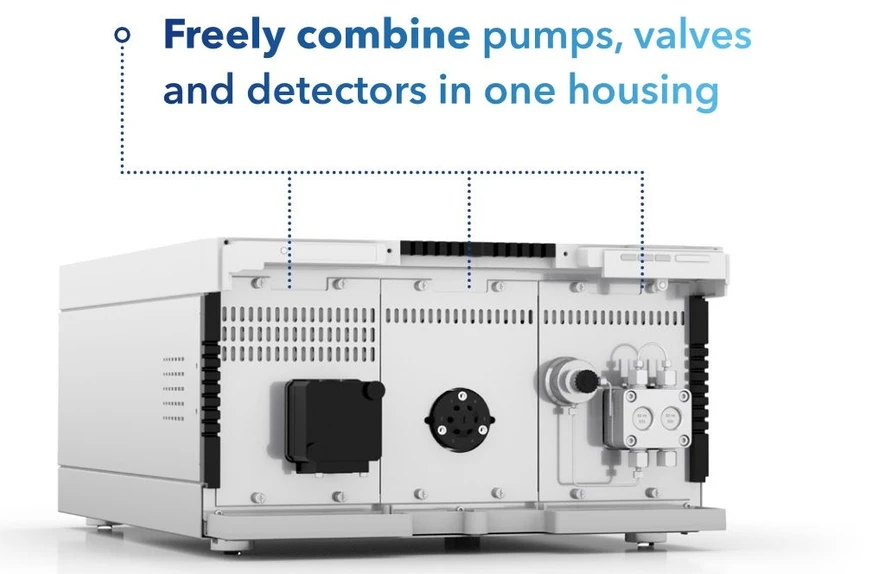

The heart of the systems is the Assistant ASM 2.2L is a docking station for three compact devices. Valves, pumps and UV detectors can be combined in one housing. Routine maintenance work e.g. replacing the lamp of a detector is easily performed by the user.
Thanks to its modular concept the systems can be extended with additional components at any time later.

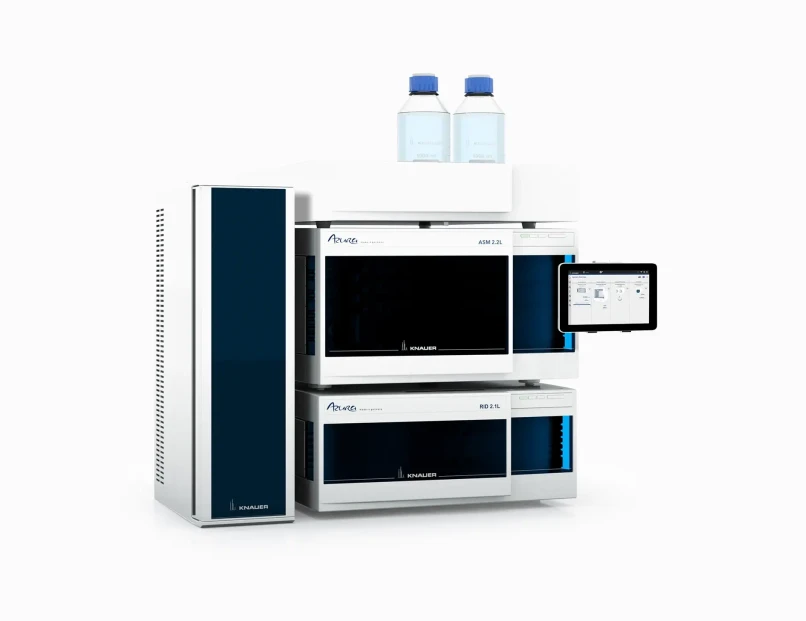

KNAUER: AZURA® SEC Compact System.
Key Features
- Flow rate: 0.001–10 ml/min
- Pressure: Up to 400 bar
- Intuitive operation with maximum precision
- Injection via valve drive for minimal pressure spikes
- Supports a wide range of SEC and GPC columns
- Dedicated SEC/GPC ClarityChrom® add-on for in-depth data evaluation
- Expandable, space-saving design
- Suitable for organic and aqueous eluents
System Components & Configurations
- Isocratic pump
- UV and RI detectors
- Column thermostat
- Automatic injection (optional)
- ClarityChrom® add-on for in-depth data evaluation
- Choose a hardware version for aqueous SEC of biomolecules or organic GPC of polymers
Detection Options
- RI, UV, ELSD, PDA, FLD, MS
Upgrade Options
- Automatic solvent recycle valve (cost-saving feature)
- Degasser
- Autosampler
- Additional detectors (RI, UV, ELSD, PDA, FLD, ECD)
KNAUER: AZURA® SEC Compact System.
