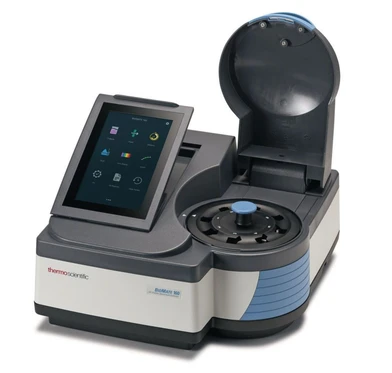

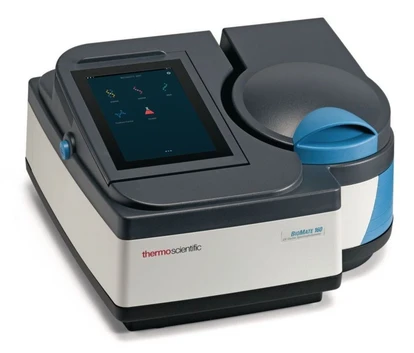

Perform quantitative measurements in life science laboratories with the automated and network-capable Thermo Scientific™ BioMate™ 160 UV-Visible Spectrophotometer. The BioMate 160 Spectrophotometer offers pre-programmed assay methods for nucleic acid and protein concentration as well as cell culture measurements. Optimized for usability and performance, this platform features a high-resolution color touchscreen, optional Wi-Fi networking, and a rugged design.
The BioMate UV-Vis Spectrophotometer provides automation for high-throughput options and room-light resistance, allowing lid-open operation for improved speed and convenience. Software includes pre-programmed life science methods such as Nucleic Acid A260; Protein A280 and A205; Protein Colorimetric assays and OD600.
A full line of accessories, including automated cell changers and cell holders, sipper, and fiber optic probes are designed to simplify sampling and accommodate high throughput measurements and temperature control.
Features:
- 7-inch high-resolution touchscreen user interface
- Pre-programmed life science methods
- Networking capable (Wi-Fi adaptor available)
- Room light resistance for 'open-lid' operation
- Sipper accessory
- Removable, washable sample compartment liner with magnetic placement and hold-down
- Accommodates cells up to 100 mm pathlength
- (Optional) 8-position cell changer with switchable turret
- (Optional) 4-position cell changer (long path cells)
- (Optional) Peltier-thermostatted single cell holder (20 °C - 60 °C)
Designed for:
- Advanced teaching labs
- R&D departments
- Applications requiring high throughput or temperature control
Specifications
Instrument Type: UV-Visible Spectrophotometer
Optical Design: Dual beam
Wavelength Range: 190–1100 nm
Spectral Bandwidth: 2 nm
Photometric Range: –2 A to +3.5 A
Photometric Accuracy: ±0.002 A at 0.5 A, ±0.004 A at 1.0 A, ±0.008 A at 2.0 A
Photometric Repeatability: ±0.001 A at 1 A (546 nm)
Photometric Display: –3 A to +5 A
Noise (RMS at 500 nm):
- ≤0.00020 A at 0 A
- ≤0.00030 A at 1 A
- ≤0.00040 A at 2 A
Drift: <0.0005 A/hr at 500 nm after 1-hour warmup
Baseline Flatness: ±0.002 A
Stray Light: - <1.0%T at 198 nm (KCl)
- <0.05%T at 220 nm (NaI)
- <0.03%T at 340 nm (NaNO₂)
Wavelength Performance
- Accuracy: ±0.5 nm
- Repeatability: ±0.2 nm
- Data Interval Options: 0.2, 0.5, 1, 2, 5 nm
- Scan Speed: Slow, medium, fast (up to 1600 nm/min)
Display & User Interface
- Touchscreen: 7 in. high-definition color, tiltable (800 × 1280 px)
- Keypad: Touchscreen interface
Connectivity & Data Handling
- Connections: Single USB-A, Duplex USB-A
- Data Export: USB, Ethernet, Wi-Fi adaptor (optional)
- Printer Support: Snap-on printer (optional), USB/Ethernet/Wi-Fi printing available
Sample Compartment Compatibility (Optional Accessories)
- 8-position or 4-position cell changers
- Long path cell changer
- Peltier thermostatted cell holder (20–60 °C)
- Sipper accessory
- Fiber optic probe coupler
General Specifications
- Lamp Life: >5 years typical, 3 years guaranteed
- Detector Type: Dual silicon photodiodes
- Dimensions (L × W × H): 35.5 × 38.5 × 19.5 cm
- Weight: 7.5 kg
- Power Requirements: 100–240 V, 50/60 Hz (auto-selecting via external AC–DC converter)
- Certifications: Certificate of Analysis (COA), Certificate of Conformance (COC)
- Warranty: 2 years standard + 1-year extension upon registration
- Unit Size: Each
