GENESYS - developed for users, designed for results
Built on the foundation of 60 years of spectroscopy experience, the next generation Thermo Scientific™ GENESYS™ family of Vis/UV-Vis spectrophotometers provides exceptional performance with a contemporary design.
- Start taking measurements immediately with the simple-to-use, high-resolution, color-display start menu
- Exchange samples with ease with large, accessible sample compartment
- Save your data fast any way you want it with multiple data-export options
There is a GENESYS spectrophotometer you can count on to provide accurate, reproducible results for your application requirements.

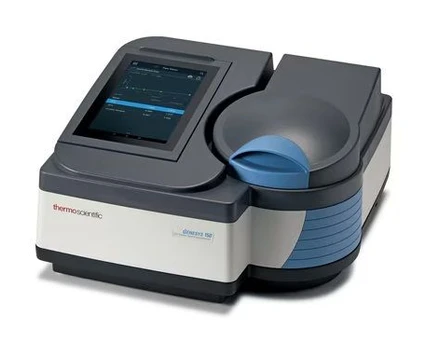

GENESYS 150 UV-Vis Spectrophotometer
For advanced teaching labs, R&D, research and life science applications requiring higher throughput or temperature control.
Elite performance, enhanced capabilities
- 7-inch, high-resolution touchscreen interface
- Local control increases speed and reliability for routine analysis
- Large sample compartment with front access simplifies sample handling
- Wi-Fi ready - save data and methods, print results from on-board control
Designed for
- Chemistry labs
- Routine measurements
- Moderate throughput requirements

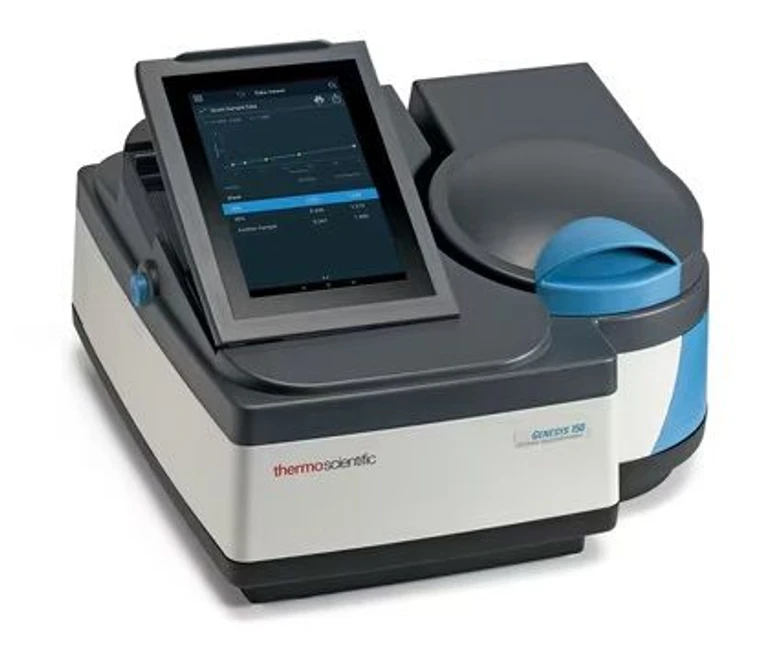

Thermo Scientific™ GENESYS™ 150 Uv-Vis Spectrophotometer
Walk-up convenience
Simple-to-use, touchscreen user interface features the methods and applications most important to you.
Thermo Scientific: Genesys spectrophotometers
Flexible computer control
Optional VISIONlite software offers complete control from a Microsoft ® Windows ® computer providing applications for:
- Scanning
- Quantitative analysis
- Kinetics
- Fixed wavelength measurements
GENESYS 150 UV-Vis Spectrophotometer Specifications
- Baseline Flatness: ±0.002 A
- Compartments: Accommodates (optional):

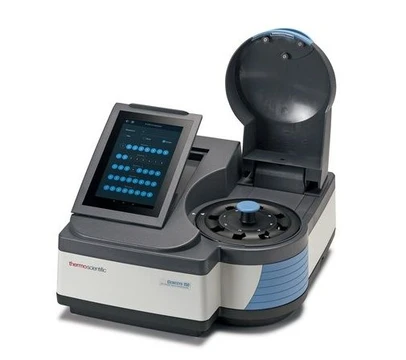

- 8-position cell changer
- 4-position cell changer (long path cells)
- Peltier thermostatted cell holder (20–60 °C)
- Sipper accessory
- Fiber optic probe coupler
- Connections:
- Single USB-A
- Duplex USB-A
- Export data to network or PC via USB, Ethernet, or Wi-Fi USB adaptor, available
- Print via USB, Ethernet or Wi-Fi USB adaptor available
- Dimensions (L x W x H): 35.5 x 38.5 x 19.5 cm
- Drift: (At 500 nm after 1 hour warmup) <0.0005 A/hr.
- Electrical Requirements: External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/240 V, 50/60 Hz
- Includes: Genesys 150 Spectrophotometer
- Keypad: Touchscreen
- Lamp Life: > 5 years typical, 3 years guaranteed
- Noise: (RMS at 500 nm 60 consecutive measurements)
- ≤0.00020A at 0A at 260 and 500 nm
- ≤0.00030A at 1A at 260 and 500 nm
- ≤0.00040A at 2A at 260 and 500 nm
- Optical Design: Dual Beam
- Photometric Accuracy: ±0.002A at 0.5A, ±0.004A at 1.0A, ±0.008 A at 2.0 A
- Photometric Display: -3A to +5A
- Photometric Range: –2A to +3.5A
- Photometric Repeatability: ±0.001 A at 1 A measured at 1.0 A at 546 nm
- Printer Included: Snap-on printer available
- Scan Speed: Slow, medium and fast – up to 1600 nm/min.
- Stray Light: < 1.0%T 198 nm (KCl) , <0.05%T at 220 nm (NaI), <0.03%T at 340 nm (NaNO2)
- Warranty: 2 yrs std + 1 yr ext upon reg
- Wavelength Accuracy: ±0.5 nm
- Wavelength Data Interval: 0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm
- Wavelength Repeatability: < ±0.2 nm
- Weight (Metric): 7.5 kg
- Detector Type: Dual Silicon Photodiodes
- Display: 7 in. High Definition Color Touchscreen, Tiltable, 800 x 1280 pixels
- Spectral Bandwidth: 2 nm
- Wavelength Range: 190 to 1100 nm
- Unit Size: Each
