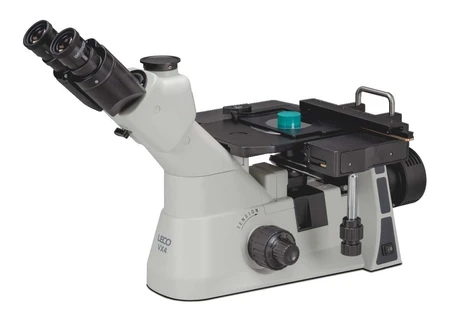

LECO VX4 Compact Inverted Microscope

LECO VX4 is a compact inverted metallurgical microscope delivering high-resolution imaging, polarized light, and advanced optics for precise microstructural analysis in materials and educational labs.

<p><strong>The LECO VX Series metallurgical microscopes are advanced microscopy solutions designed for materials laboratories that require high-resolution imaging, reliable performance, and consistent metallographic results. Built with a strong focus on precision, repeatability, and ease of operation, the VX Series supports a wide range of applications across automotive, aerospace, academic research, and quality assurance laboratories.</strong></p><p>From routine microstructural evaluation to detailed failure investigations, the VX Series delivers the optical quality and robustness professionals expect. Integrated digital imaging systems and compatibility with LECO’s analytical software tools ensure efficient workflows, clear documentation, and scalable solutions for laboratories of all sizes. The <strong>VX3, VX4, and VX5 models</strong> allow laboratories to select the configuration that best matches their technical and budgetary requirements.</p><h4><strong>Why the VX Series Is Ideal for Metallography</strong></h4><p>LECO metallographic microscopes play a critical role in examining the microstructure of metals and alloys. This essential step in metallographic analysis enables detailed evaluation of grain size, phase distribution, and structural features, helping users identify defects and assess material quality. The high level of detail provided by the VX Series supports quality control, failure analysis, and materials inspection across a broad range of industries.</p><h4><strong>LECO VX4 Compact Inverted Microscope</strong></h4><p>The LECO VX4 is a compact yet powerful inverted microscope designed for metallurgical and educational laboratories. It features a bright LED polarized light source suitable for both mounted and unmounted samples, delivering excellent contrast and image clarity. Engineered for strong optical performance and intuitive operation, the VX4 combines modern imaging technology with automated functionality to support demanding material investigations.</p><p>The VX4 is well suited for microstructural analysis such as <strong>grain size determination</strong>, <strong>pearlite/ferrite evaluation</strong>, <strong>nodularity assessment, dendrite arm spacing measurements</strong>, and <strong>advanced failure analysis</strong>. Full compatibility with LECO’s analytical software enhances efficiency in image capture, analysis, data management, and reporting, making the VX4 a practical and future-ready solution for metallography and materials characterization.</p><h4><strong>Key Features of the VX4</strong></h4><ul><li>Variable LED light source with built-in lever condenser, including field and aperture diaphragms</li><li>Trinocular viewing head with 10× / 22 mm adjustable focusing eyepieces</li><li>Revolving nosepiece accommodating up to five objectives</li><li>Standard objectives: 5×, 10×, 20×, and 50×</li><li>Optional 100× objective available</li><li>Brightfield observation with 360° polarizer/analyzer</li><li>Coaxial coarse and fine focus controls for precise adjustment</li><li>Ergonomic mechanical XY stage for smooth sample positioning</li></ul>

Thermo Scientific DXR3xi Raman Imaging Microscope

High-performance Raman imaging microscope offering fast, non-destructive 2D and 3D chemical imaging with intuitive workflows, automated calibration, and advanced data visualization.

<p><strong>The Thermo Scientific™ DXR3xi Raman Imaging Microscope delivers research-grade Raman imaging faster than ever before. Enhanced software features combined with higher spatial resolution allow users to instantly obtain detailed visual and chemical information. Advanced imaging capabilities, minimal sample preparation, and intuitive software provide researchers with the power of Raman spectroscopy at the speed modern research demands.</strong></p><h3><strong>Key features and benefits</strong></h3><ul><li><strong>Simple operation</strong> suitable for users of all skill levels</li><li><strong>Faster data visualization</strong> enabled by advanced imaging software<ul><li>Advanced particle analysis for rapid identification and analysis of microscopic contaminants</li><li>3D confocal imaging for non-destructive, non-invasive three-dimensional chemical and molecular investigations</li><li>Terrain Mapping to characterize uneven sample surfaces and easily acquire in-focus Raman images</li></ul></li><li><strong>Intuitive workflow</strong> designed for demanding applications to maximize sample throughput</li><li><strong>Automated calibration</strong> to improve efficiency</li><li><strong>High measurement accuracy</strong> supported by:<ul><li>Automatic alignment and calibration with no tools required</li><li>Automatic background compensation</li></ul></li><li><strong>Rapid system reconfiguration</strong> within seconds – pre-aligned lasers, filters, and gratings can be changed without tools</li><li><strong>Fast spectral analysis and interpretation</strong> using powerful <strong>Thermo Scientific™ OMNIC™xi Software</strong></li><li><strong>Advanced autofocus and morphological analysis</strong> to track positions across uneven surfaces</li><li><strong>Visualization tools</strong> for extracting chemical contrast and identifying and ranking features of interest</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Thermo_Scientific_DXR_3xi_Raman_Imaging_Microscope_8_9021ee32c0.jpg" alt="Thermo Scientific DXR3xi Raman Imaging Microscope " srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Thermo_Scientific_DXR_3xi_Raman_Imaging_Microscope_8_9021ee32c0.jpg 234w," sizes="100vw" width="650" height="433"></p><h3><strong>Laser safety</strong></h3><ul><li>Microscope designed and independently certified as <strong>Class 1 laser safe</strong></li><li>Optional fiber optic accessories and selected components are <strong>Class 3b laser devices</strong>, requiring appropriate laser safety measures and protective eyewear</li><li>Laser path is physically blocked from the visual viewing path to prevent eye exposure during observation</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Thermo_Scientific_DXR_3xi_Raman_Imaging_Microscope_4_73e61c6ef9.jpg" alt="Thermo Scientific DXR3xi Raman Imaging Microscope " srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Thermo_Scientific_DXR_3xi_Raman_Imaging_Microscope_4_73e61c6ef9.jpg 236w," sizes="100vw" width="650" height="430"></p><h3><strong>Applications</strong></h3><ul><li>Nanotechnology</li><li>Microplastics analysis</li><li>Polymer and chemical analysis</li><li>Electronics</li><li>Materials science</li><li>Academic research</li><li>Pharmaceutical research</li><li>Geology</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Thermo_Scientific_DXR_3xi_Raman_Imaging_Microscope_9_5d3708416c.jpg" alt="Thermo Scientific DXR3xi Raman Imaging Microscope " srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Thermo_Scientific_DXR_3xi_Raman_Imaging_Microscope_9_5d3708416c.jpg 156w," sizes="100vw" width="650" height="650"></p><h3><strong>Specifications</strong></h3><ul><li><strong>Electrical Requirements</strong>: 100/240 V, 47/63 Hz</li><li><strong>Electronic Records and Signatures</strong>: 21CFR Part 11</li><li><strong>For Use With (Application)</strong>: Nanotechnology, Material science, Academic research, Pharmaceutical, Geology, Microplastics, Polymer/Chemical and Electronics</li><li><strong>Laser Power</strong>: Fine Laser Power Control: Power controlled and reported at samples in 0.1 mW increments</li><li><strong>Model</strong>: DXR3xi Raman Imaging Microscope</li><li><strong>Operating Temperature Range</strong>: 16°C to 27°C</li><li><strong>Resolution</strong>: Spatial: 0.5 µm; Confocal Depth: 2 µm</li><li><strong>Software Details</strong>: Data analysis and spectral interpretation with powerful Thermo Scientific™ OMNIC™xi Software</li><li><strong>Wavelength Range</strong>: 455 nm; 532 nm high brightness; 532 nm high power; 633 nm high brightness; 633 nm high power; 780 nm</li><li><strong>Type</strong>: Raman Imaging Microscope</li><li><strong>Unit Size</strong>: Each</li></ul>

Thermo Scientific DXR3 Raman Microscope

The Thermo Scientific DXR3 Raman Microscope is an easy-to-use confocal Raman system with automated calibration, high stability, and flexible laser options for a wide range of applications.

<p><strong>The </strong><span><strong>Thermo Scientific</strong></span><strong>™ DXR3 Raman Microscope is a modern, easy-to-use point-and-shoot Raman microscope designed to provide faster, more reliable access to Raman data than ever before. Advanced imaging capabilities combined with automated system calibration deliver exceptional stability, reproducibility, and confidence in Raman measurements—even for non-specialist users.</strong></p><p>Thanks to Automated X-axis Calibration, the DXR3 system maintains long-term accuracy and reliability while minimizing user intervention. With a flexible choice of lasers and gratings, the DXR3 Raman Microscope is ideally suited for applications across pharmaceutical research, academia, advanced polymers, microplastics, and many other demanding fields.</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Thermo_Scientific_DXR_3_Raman_Microscope_6_1dd5de4a21.jpg" alt="Thermo Scientific DXR3 Raman Microscope" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Thermo_Scientific_DXR_3_Raman_Microscope_6_1dd5de4a21.jpg 245w," sizes="100vw" width="650" height="299"></p><h3><strong>Key capabilities</strong></h3><ul><li>New <strong>Particle Analysis</strong> functionality for rapid identification and analysis of microparticles</li><li>High-performance <strong>confocal Raman microscopy</strong> in a robust, fully integrated design</li><li>Fully automated <strong>alignment and calibration</strong> with no tools or manual procedures required</li><li>Real-time preview, automated fluorescence correction, auto-exposure, and cosmic ray rejection</li><li>System status indicator providing at-a-glance confirmation that the instrument is optimized and ready for data acquisition</li><li>Three-path fine-beam autoalignment to maintain peak performance and sampling integrity</li><li>Active laser power regulation ensuring consistent sample excitation throughout the lifetime of the laser</li><li>Advanced spectrograph design with no moving parts for simplified operation and highly robust detection and calibration</li><li>Pre-aligned, lock-in-place components with automatic recognition and stored alignment, enabling system reconfiguration in seconds</li><li>Interchangeable lasers and components shared across the DXR3 Raman family</li><li>Optional automated <strong>polarized Raman spectroscopy</strong> for structural information complementary to chemical data</li><li>Add new excitation wavelengths without tools or service engineer intervention</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Thermo_Scientific_DXR_3_Raman_Microscope_2_e366caa151.jpg" alt="Thermo Scientific DXR3 Raman Microscope" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Thermo_Scientific_DXR_3_Raman_Microscope_2_e366caa151.jpg 204w," sizes="100vw" width="631" height="483"></p><h3><strong>Laser safety</strong></h3><ul><li>Microscope independently certified as <strong>Class 1 laser safe</strong><br><i>(Note: optional fiber-optic accessories and certain other optional components are Class 3B laser devices and require appropriate laser safety precautions and eyewear)</i></li><li>Laser is physically blocked from the visual viewing path, preventing eye exposure during sample observation</li></ul><h3><strong>Validation and compliance</strong></h3><ul><li>Complete <strong>DQ/IQ/OQ/PQ validation</strong> package available, including extensive documentation and automated software protocols</li><li><strong>OMNIC™ D/S software</strong> supports compliance with <strong>21 CFR Part 11</strong></li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Thermo_Scientific_DXR_3_Raman_Microscope_3_62f6baad12.jpg" alt="Thermo Scientific DXR3 Raman Microscope" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Thermo_Scientific_DXR_3_Raman_Microscope_3_62f6baad12.jpg 178w," sizes="100vw" width="630" height="553"></p><h3><strong>Exceptional analytical performance</strong></h3><ul><li>Spatial resolution down to <strong>540 nm</strong> on ideal samples</li><li>Confocal depth resolution as fine as <strong>1.7 µm</strong> on ideal samples</li><li>Full spectral range of <strong>3500–50 cm⁻¹</strong> captured in a single CCD exposure, eliminating stitching artifacts</li><li>Extended spectral range up to <strong>6000 cm⁻¹</strong> available with the 532 nm laser</li><li>Support for multiple excitation lasers: <strong>455, 532, 633, and 785 nm</strong> (high-brightness and high-power options)</li><li>Automatic fluorescence correction available for all excitation lasers</li><li>Research-grade <strong>Olympus</strong> viewing optics</li><li>Automatic intensity correction enabling spectral comparability between instruments and across different excitation lasers</li><li>Multidimensional wavelength calibration ensuring accurate calibration across the entire spectral range</li><li>Proprietary <strong>Triplet spectrograph</strong> delivering exceptional peak shape and maintaining focus at all wavelengths</li><li>Software-controlled switching between confocal and high-energy collection modes</li><li>Proprietary algorithms for automated cosmic ray rejection and high-quality laser line filters for artifact-free spectra</li><li>Depolarized lasers to eliminate confusing sample orientation effects</li><li>Active laser power monitoring ensures reproducible excitation power over the laser lifetime and after laser replacement</li><li>Optimized gratings for each excitation laser, avoiding performance compromises associated with shared gratings</li><li>Proprietary autoalignment maintains the system in like-new condition</li><li>Smart-Backgrounds technology automatically removes the CCD dark energy profile</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Thermo_Scientific_DXR_3_Raman_Microscope_5_ca01560747.jpg" alt="Thermo Scientific DXR3 Raman Microscope" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Thermo_Scientific_DXR_3_Raman_Microscope_5_ca01560747.jpg 210w," sizes="100vw" width="633" height="471"></p><h3><strong>Recommended applications</strong></h3><ul><li><strong>Forensics</strong> – trace evidence analysis and illicit drug identification</li><li><strong>Pharmaceuticals</strong> – polymorphism studies, particulate contamination, and diffusion analysis</li><li><strong>Art restoration and conservation</strong> – identification and characterization of pigments, resins, glazes, and inks</li><li><strong>Archaeology</strong> – characterization of horn, shell, bone, and ceramic artifacts</li><li><strong>Solar materials</strong> – silicon crystallinity and photovoltaic material characterization</li><li><strong>Polymers</strong> – inclusions, gel defects, weathering effects, laminate layers, and crystallinity</li><li><strong>Failure analysis</strong> – characterization of particulates and small surface features</li><li><strong>Gemology</strong> – rapid identification of colored stones, differentiation of natural and synthetic diamonds, characterization of inclusions and adulterants</li><li><strong>Nanotechnology</strong> – graphene, carbon nanotubes (CNTs), DLC coatings, and other nanostructures</li><li><strong>Academic research</strong> – materials science, biological studies, and a wide range of applied research fields</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Thermo_Scientific_DXR_3xi_Raman_Imaging_Microscope_9_5d3708416c.jpg" alt="Thermo Scientific DXR3 Raman Microscope" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Thermo_Scientific_DXR_3xi_Raman_Imaging_Microscope_9_5d3708416c.jpg 156w," sizes="100vw" width="650" height="650"></p><h3><strong>Specification</strong></h3><ul><li><strong>Depth (Metric):</strong> 68 cm</li><li><strong>Description:</strong> DXR3 Raman Microscope</li><li><strong>Electrical Requirements:</strong> 100/240 V, 47/63 Hz</li><li><strong>Electronic Records and Signatures:</strong> 21CFR Part 11</li><li><strong>For Use With (Application):</strong>&nbsp;<ul><li>Pharmaceutical</li><li>Microplastics</li><li>Forensics</li><li>Polymer/Chemical</li><li>Petrochemical</li><li>Material Science</li><li>Nanomaterials</li><li>Academia</li><li>Energy Storage</li><li>Art Restoration/Conservation</li></ul></li><li><strong>Height (Metric):</strong> 61 cm</li><li><strong>Laser Power:</strong> Fine Laser Power Control: Power controlled and reported at samples in 0.1 mW increments</li><li><strong>Model:</strong> DXR3</li><li><strong>Operating Temperature Range:</strong> 16°C to 27 °C</li><li><strong>Resolution:</strong>&nbsp;<ul><li><strong>Spatial:</strong> 1 µm</li><li><strong>Confocal Depth:</strong> 2 µm</li></ul></li><li><strong>Wavelength Range:</strong>&nbsp;<ul><li>455 nm</li><li>532 nm high brightness</li><li>532 nm high power</li><li>633 nm high brightness</li><li>633 nm high power</li><li>780 nm</li></ul></li><li><strong>Weight (Metric):</strong> 66.5 kg</li><li><strong>Width (Metric):</strong> 94 cm</li><li><strong>Type:</strong> Microscope</li><li><strong>Unit Size:</strong> Each</li></ul>

Products from category Microscopy - page 1
