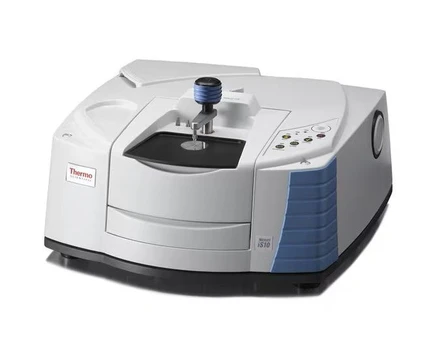

Thermo Scientific Nicolet iS 10 FTIR Spectrometer

Nicolet iS10 FTIR spectrometer for mid-IR analysis with high resolution, DTGS detector, sealed optics, and broad accessory compatibility.

<p>The <strong>Thermo Scientific Nicolet™ iS™ 10 FTIR Spectrometer</strong> is a <strong>high-performance infrared spectrometer</strong> designed for <strong>routine and advanced analytical applications</strong> in <strong>QA/QC, pharmaceuticals, polymers, forensics, and petrochemical analysis</strong>.</p><p>The system is optimized for the <strong>mid-infrared (mid-IR) region</strong>, utilizing a <strong>KBr/Ge beamsplitter</strong>, with optional <strong>XT-KBr/Ge extended range optics</strong>. It is equipped with a <strong>fast recovery DTGS detector</strong>, providing <strong>high sensitivity and stability without the need for liquid nitrogen cooling</strong>.</p><p>A <strong>sealed optical bench</strong> ensures resistance to ambient humidity, supporting reliable long-term operation. The <strong>modular design</strong> allows integration with a wide range of accessories including <strong>SMART accessories, microscopes, and TGA-IR systems</strong>.</p><h4><span><strong>Key Features</strong></span></h4><ul><li>FTIR spectrometer optimized for mid-IR analysis</li><li>Spectral range up to 11,000–350 cm⁻¹ (XT optics)</li><li>High resolution &lt; 0.4 cm⁻¹</li><li>DTGS detector (no liquid nitrogen required)</li><li>KBr/Ge beamsplitter (standard)</li><li>Sealed optics for humidity resistance</li><li>Dual source (Ever-Glo + tungsten/halogen)</li><li>Compatibility with wide accessory range (SMART, microscopy, TGA-IR)</li><li>USB connectivity</li><li>ASTM E1421 compliant (ISO/GLP)</li></ul><h3><span><strong>Technical Specifications</strong></span></h3><h4><span><strong>Optics and Performance</strong></span></h4><ul><li><strong>Spectral range:</strong><ul><li>7800–350 cm⁻¹ (standard KBr)</li><li>11,000–375 cm⁻¹ (XT-KBr extended range)</li></ul></li><li><strong>Spectral resolution:</strong> &lt; 0.4 cm⁻¹</li><li><strong>Laser:</strong> HeNe</li><li><strong>Beamsplitter:</strong><ul><li>KBr/Ge (standard)</li><li>XT-KBr/Ge (optional)</li></ul></li></ul><h4><span><strong>Detection and Sources</strong></span></h4><ul><li><strong>Detector:</strong><ul><li>DTGS (standard)</li><li>MCT (optional, LN₂ cooled)</li></ul></li><li><strong>Source:</strong><ul><li>Mid-IR Ever-Glo</li><li>Tungsten/halogen</li></ul></li></ul><h4><span><strong>Construction and Compatibility</strong></span></h4><ul><li><strong>Optical system:</strong> sealed</li><li><strong>Compatible with:</strong><ul><li>SMART Accessories</li><li>Continuum microscope</li><li>TGA-IR</li><li>Photoacoustic modules</li><li>standard FTIR accessories</li></ul></li></ul><h4><span><strong>Interface</strong></span></h4><ul><li>USB 2.0</li></ul><h4><span><strong>Dimensions and Weight</strong></span></h4><ul><li>Width: 570 mm</li><li>Height: 250 mm</li><li>Depth: 550 mm</li><li>Weight: 33 kg</li></ul><h4><span><strong>Validation</strong></span></h4><ul><li>ASTM E1421</li><li>ISO / GLP compliance</li></ul>
