Reliable, budget-friendly ion chromatography for routine anion and cation analysis
Simplify ion analysis in your laboratory with the Dionex™ Aquion™ IC system, a compact and easy-to-operate platform designed for routine applications in environmental, food safety, and academic labs. Ideal for budget-conscious operations, the Aquion system delivers dependable performance, quick startup, and low operating costs.
Key system features
- Chemically inert PEEK flow path
- Serial dual-piston pump
- Flow rate: 0.01–5.0 mL/min
- Pressure: up to 5000 psi
- High-pressure pulse dampener
- Electrically actuated, PEEK, 6-port Rheodyne injection valve
- Conductivity detection with digital signal processing
- Range: 0–15,000 μS
- Temperature-controlled conductivity cell for signal stability
- Support for electrolytic or chemical suppressors
- Optional column heater
- Built-in inline vacuum degasser
Benefits of electrolytic suppression
- Lower background conductivity and reduced detection limits
- Faster system startup
- Superior sensitivity for both anion and cation analysis
- No need for manual regenerant preparation
Optimized detection with conductivity
The Aquion system is optimized for conductivity detection using a thermostated high-performance cell that ensures stability against ambient temperature fluctuations. Digital signal control offers a wide dynamic range for simultaneous detection of analytes with varying concentrations.
Seamless control with Chromeleon™ CDS software
Included in every system bundle, Thermo Scientific™ Chromeleon™ Chromatography Data System (CDS) software provides intuitive instrument control, automated workflows, and streamlined data handling:
- eWorkflows: auto-load instrument conditions and processing templates
- Calibration Wizard: step-by-step guidance for method setup and quantification
- Wellness Trending: monitor system performance over time for predictive maintenance
Anion and Cation System Bundles
Each bundle includes everything needed to get started:
Included in all system bundles:
- Dionex Aquion IC System with power cable
- Dionex Aquion Analysis Kit (anion or cation specific)
- Chromeleon SE software and license
- 3-year warranty (parts-only coverage in years 2 and 3)
→ Optional extended warranty available including labor and travel in years 2 and 3
Anion Analysis Kit includes:
- Dionex IonPac AG22 (4 × 50 mm) guard column
- Dionex IonPac AS22 (4 × 250 mm) analytical column
- Dionex AERS 500 Carbonate (4 mm) suppressor
- Combined Seven Anion Standard II
Note: Eluent concentrate must be ordered separately.
Cation Analysis Kit includes:
- Dionex IonPac CG12A (4 × 50 mm) guard column
- Dionex IonPac CS12A (4 × 250 mm) analytical column
- Dionex CDRS 600 (4 mm) suppressor
Note: Eluent concentrate and standards must be ordered separately.
Why choose Dionex Aquion?
- Proven IC platform with straightforward operation
- Reliable results and stable performance
- Full compatibility with standard and microbore column formats (2–5 mm)
- Low cost of ownership with high-quality support and service
- Ideal entry point for labs new to ion chromatography

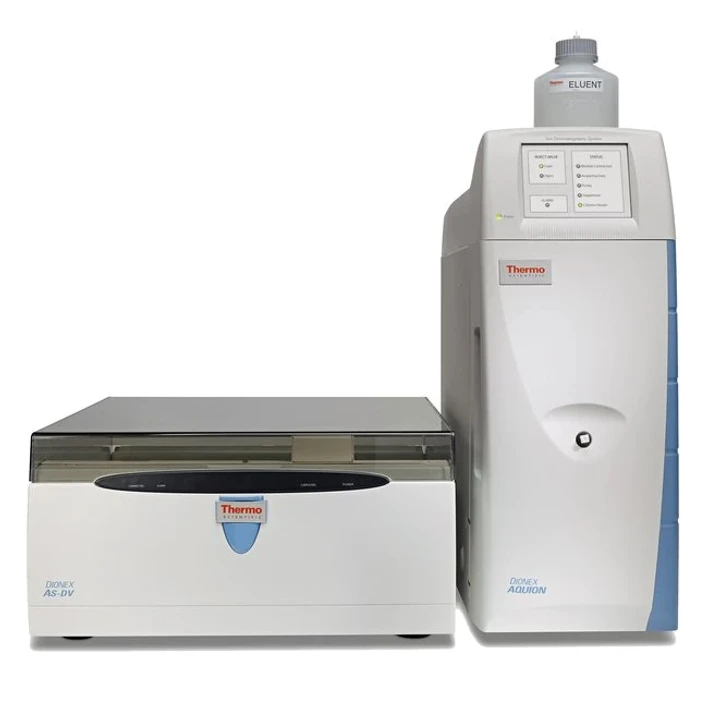

Thermo Scientific™ Dionex™ Aquion™ Ion Chromatography (IC) System
