The GT SCIEN TOGA® Fridge Smart Premium is an advanced laboratory refrigerator combining patented refrigeration technology, intelligent IoT reagent management, and TOGA® toxic gas filtration. Designed for the safe storage of temperature-sensitive chemicals, it maintains uniform temperatures throughout the refrigerated compartment while helping prevent harmful gases and unpleasant odors from escaping into the laboratory environment.
With a temperature uniformity of ±1 °C, a 7-inch IoT touch panel, and support for RFID-based reagent tracking, the system combines precise refrigeration with efficient chemical inventory management. Its ductless design also eliminates the need for external exhaust connections.
Key Features and Benefits
- Precise Temperature Control: Patented refrigeration technology maintains temperature uniformity of ±1 °C throughout the storage compartment.
- Optimized Air Circulation: A specially designed airflow system distributes cooled air through perforated shelves to maintain consistent storage temperatures.
- Advanced TOGA® Filtration Technology: Removes toxic gases and unpleasant odors released by stored laboratory chemicals.

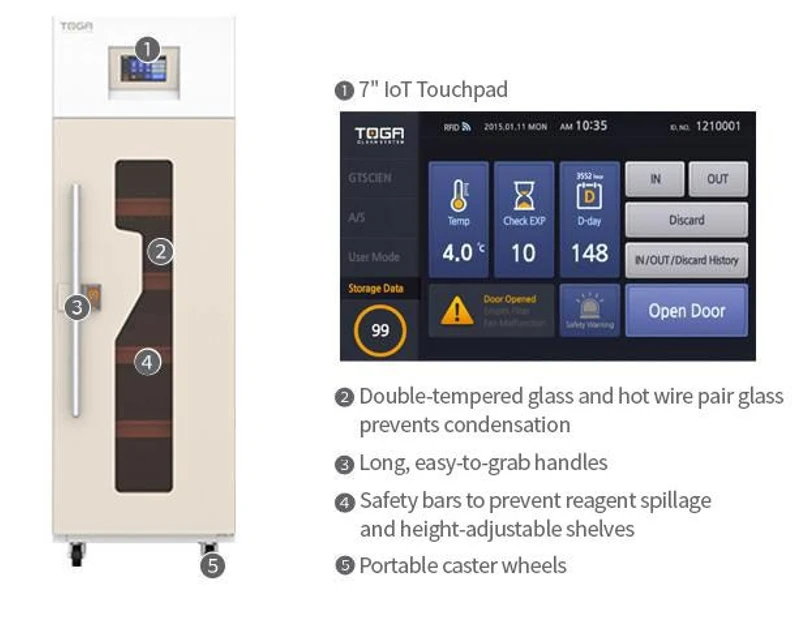

- 7-Inch IoT Touch Panel: Provides convenient access to temperature controls, operating information, and supported reagent management functions.
- Intelligent Reagent Management: Supports RFID-based inventory tracking, reagent expiration management, and monitoring of chemical usage.
- Remote Monitoring: Enables access to reagent information through web and mobile applications when integrated with the IoT management platform.
- Condensation Prevention: Double-tempered glass and heated glazing help prevent condensation on the refrigerator door.
- Safe and Flexible Storage: Height-adjustable shelves and integrated safety bars accommodate different reagent containers while reducing the risk of accidental spills.
- Convenient Operation: An ergonomic door handle and caster wheels facilitate everyday use and repositioning within the laboratory.
- Ductless Design: Requires no external exhaust ductwork, helping reduce installation requirements and energy losses.
- Extended Filter Service Life: The recommended filter replacement interval is approximately one year, depending on the type and concentration of gases.
GT SCIEN TOGA Fridge Smart Premium – Premium IoT Reagent Refrigerator
Patented Refrigeration Technology
The TOGA® Fridge Smart Premium features an optimized airflow system designed to maintain uniform temperatures across all storage levels.
Fan-driven cooled air is directed vertically toward the right side of the storage compartment and circulated horizontally from right to left through the perforated shelving structure.
This arrangement minimizes temperature differences between shelves and maintains a specified temperature uniformity of ±1 °C within an operating range of 2–12 °C.
GT SCIEN TOGA Fridge Smart Premium – Premium IoT Reagent Refrigerator

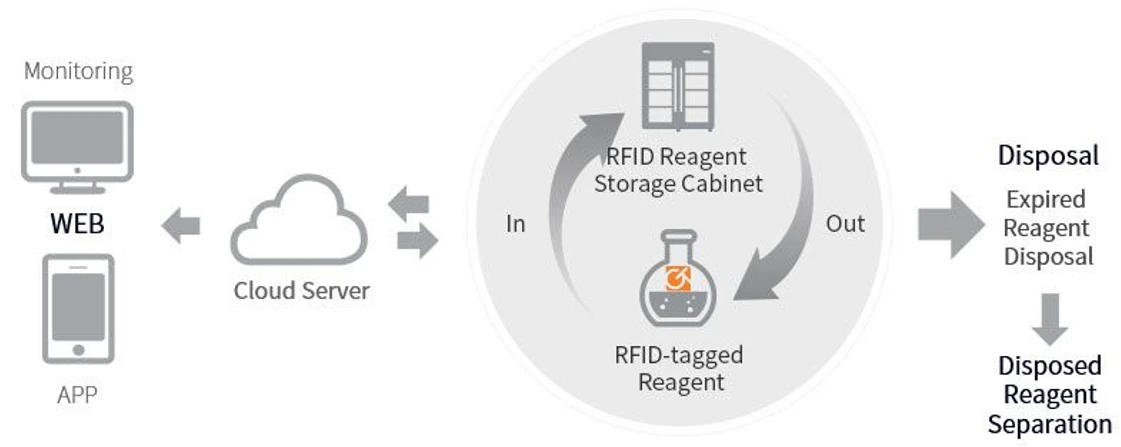

Intelligent IoT Reagent Management
The refrigerator features a 7-inch IoT touch panel and supports integration with GT SCIEN's Reagent Safety Prevention Management System (RSPMS).
When configured with the reagent management platform, the system provides:
- RFID Reagent Tracking: Monitoring of reagent movement, usage, and inventory.
- Reagent Database: Access to information on more than 20,000 reagents.
- Expiration Management: Tracking of reagent expiration dates and disposal records.
- Remote Monitoring: Access to reagent information through web and mobile applications.
- User Management: Control of user permissions and independent management for laboratory teams.
- Safety Notifications: Alerts concerning reagent storage and chemical safety.
These functions help improve reagent traceability, inventory management, and laboratory operating efficiency.
GT SCIEN TOGA Fridge Smart Premium – Premium IoT Reagent Refrigerator
TOGA® Triple Action Filtration Technology
The integrated TOGA® filtration system removes harmful gases and unpleasant odors generated by stored chemicals.
GT SCIEN's patented Triple Action Technology™ combines three purification mechanisms:
- Physical Adsorption: Captures gaseous contaminants on the filtration material.
- Chemical Reactions: Contribute to the removal of harmful gaseous substances.
- Neutralization Reactions: Neutralize acidic and basic gases.
The TOGA® filtration technology is specified to remove over 90% of toxic gases. Its combined purification mechanisms help minimize contaminant breakthrough and maintain filtration performance over extended periods.
The filtration process is designed to operate without generating ozone or other harmful byproducts.
GT SCIEN TOGA Fridge Smart Premium – Premium IoT Reagent Refrigerator
Technical Specifications
- Model: TOGA-UGSR01
- Exterior Dimensions (W × D × H): 880 × 795 × 2070 mm
- Interior Dimensions (W × D × H): 660 × 560 × 1450 mm
- Volume: 536 L
- Temperature Distribution: ±1 °C
- Temperature Range: 2–12 °C
- Refrigerant: R-134a
- Compressor: 1/3 HP
- Condenser: 1/2 HP
- Evaporator: 1/2 HP
- Defrosting: Automated defrosting
- Controller: 7-inch IoT touchpad
- Reagent Management System: Possible
- Voltage, Frequency: AC 220 V, 60 Hz
- Power Consumption: 1.1 kW
- Filter Replacement Period (Recommended): 1 year (dependent upon type and concentration of gases)
- Frame: White foam
- Number of Shelves: 5
- Weight: 300 kg
