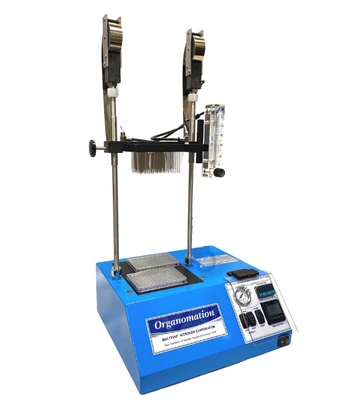

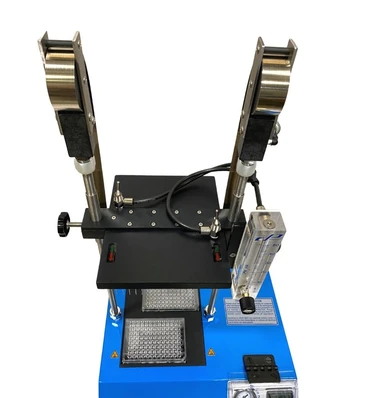

The Dual Microplate Evaporator with Digital Timer is designed for efficient evaporation of samples in two 96-well microplates simultaneously. Based on the proven MULTIVAP dry block platform, the system combines precise temperature control, an integrated digital timer, and a built-in gas pressure gauge to provide reliable and reproducible evaporation performance.
A height-adjustable manifold allows convenient starting and stopping of evaporation for both plates at the same time, while spring-assisted lifting ensures smooth and effortless operation. The programmable timer enables semi-attended operation by automatically stopping heat and gas flow when the preset evaporation time has elapsed.
Specifications
Dual Microplate Evaporator with Digital Timer
- Instrumental Catalog Number: 11802
- Number of Sample Plates: 2
- Overall Dimension (w × d × h): 16 × 14 × 22 in; 41 × 36 × 56 cm
- Gas Manifold Layout: Dual 8 × 12 array
- Microplate Dimensions (w × d): 3.375 × 5.0 in; 8.5 × 13 cm
- Stainless Steel Needles (Length × Gauge): 2.0 in × 19 ga; 51 mm × 19 ga
- Hoist Assembly: Spring-assisted
- Integrated Control Box with Timer for Nitrogen & Heat: Standard
- Built-in Gas Regulator Input: 50–110 psig
- Acid Resistant Coating (Option Code –RT): Optional
Heating Device Specs
- Bath Model Number: 9156
- Heating Medium: Aluminum dry block
- Outside Dimensions (w × d × h): 16 × 14 × 6.5 in; 41 × 36 × 15 cm
- Total Wattage: 900 W
- Bath Temperature Range: 30–120 °C
- Temperature Controller Type: Digital Electronic with LED Display
- Controller Accuracy: ±2 °C
