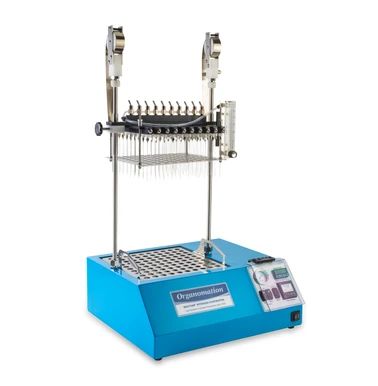

Teflon-free MULTIVAP nitrogen evaporators are designed for high-throughput PFAS sample preparation and concentration. Constructed entirely without PTFE or other fluoropolymers, they help minimize the risk of contamination during evaporation while enabling simultaneous processing of large sample batches.
Available in 64- and 100-position configurations, these systems are suitable for laboratories using EPA Methods 533, 537.1, and 1633. A gas distribution manifold provides uniform nitrogen flow to all samples, while row-specific controls allow unused positions to be switched off to reduce nitrogen consumption.
The evaporators feature a heated water bath with a temperature range of 30–100 °C and customized sample racks designed for specific tube dimensions, ensuring efficient and reproducible solvent evaporation.
For laboratories requiring maximum throughput and consistent PFAS sample preparation, Teflon-free MULTIVAP evaporators provide a reliable and contamination-conscious solution.
- Capacity: Evaporate batches of up to 64 or 100 samples, with outside diameters of up to 30 mm
- Precise: Digital controls allow exact temperature regulation
- Teflon-Free Guarantee: Made with PTFE-free materials to avoid contamination of PFAS
- Consistent: Uniform evaporation across all samples with no adjustment needed between runs
Standard features
- Adjustable flow meter
- Dual band hoist spring assembly
- High temperature limit switch for safety
- Safety control cover plate
- Digital temperature controller
- Electronic timer
- Nitrogen filter
- Gas distribution manifold
- Built-in pressure reducing regulator
- Needle guide
Options (Add to main Cat# when purchasing)
- 220v wiring harness (Option Code# -2)
- 64 position model: Cat# 11364-NT-2
- 100 position model: Cat# 11300-NT-2
Specifications
- Bath Type: Water
- Instrumental Catalog Number:
- Teflon-Free 64p MULTIVAP: 11364-NT
- Teflon-Free 100p MULTIVAP: 11300-NT
- Number of Sample Positions:
- Teflon-Free 64p MULTIVAP: 64
- Teflon-Free 100p MULTIVAP: 100
- Standard Dimensions (w x d x h): 19 x 17 x 34 in / 48 x 43 x 86 cm
- Sample Holder Layout: Square
- Gas Manifold Layout:
- Teflon-Free 64p MULTIVAP: 8 x 8 array
- Teflon-Free 100p MULTIVAP: 10 x 10 array
- Center to Center Spacing Between Positions:
- Teflon-Free 64p MULTIVAP: 1.3125 in / 3.33 cm
- Teflon-Free 100p MULTIVAP: 1.0 in / 2.54 cm
- Test Tube Diameter:
- Teflon-Free 64p MULTIVAP: 11–30 mm OD
- Teflon-Free 100p MULTIVAP: 11–22 mm OD
- Gas Flow Control On/Off Valve:
- Teflon-Free 64p MULTIVAP: Every row of 8
- Teflon-Free 100p MULTIVAP: Every row of 10
- Gas Flow Meter Range:
- Teflon-Free 64p MULTIVAP: 0–30 L/min
- Teflon-Free 100p MULTIVAP: 0–50 L/min
- Stainless Steel Needles (Length x Gauge): 4.0 in x 19 ga / 102 mm x 19 ga
- Needle Guide: Standard
- Hoist Assembly: Dual Pulley & Band Springs
- Built-in Gas Regulator Input: 30–110 psig
Heating Device Specs
- Model Number: 11196
- Inside Dimensions (Diameter x Depth): 11 x 11 x 5.5 in / 28 x 28 x 14 cm
- Outside Dimensions (w x d x h): 19 x 17 x 7 in / 48 x 43 x 18 cm
- Total Wattage: 1100 W
- Bath Temperature Range:
- Teflon-Free 64p MULTIVAP: 30–110 °C
- Teflon-Free 100p MULTIVAP: 30–100 °C
- Temperature Controller Type: Digital Electronic with LED Display
- Controller Accuracy: +/- 2 °C
Accessories
- Custom sized racks for 64 position model (cat# NA1360)
- Custom sized racks for 100 position model (cat# NA1361)
- Nitrogen generator (cat# NA1935)
- Pasteur pipette adapters (cat# NA0636, cannot be used with needle guide)
- Luer plugs (cat# NA1307)
- Pressure reducing regulator 0-160 psi (cat# NA0630-NT)
- Various needle sizes and gauges
