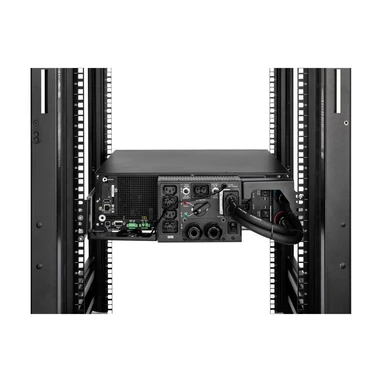

The Eaton HotSwap MBP 6000i G2 is a maintenance bypass designed to ensure power continuity during UPS servicing or replacement.
The unit allows the UPS to be disconnected without interrupting power to connected equipment. With a 3U form factor, it is suitable for standard 19" rack installations.
The HotSwap MBP provides IEC outlets (C13 and C39) and a hardwired output connection. It does not include outlet control or communication interfaces.
Key Features
- Maintenance bypass for UPS
- Ensures power continuity during UPS servicing
- 2× IEC C13 + 3× IEC C39
- 1× hardwired output
- 3U form factor for 19" rack
- Rack mounting kit included
- No outlet control
- No communication interfaces
Technical Specifications
General
- Product name: Eaton HotSwap MBP maintenance bypass
- Catalog number: MBP6KIG2
- Model code: Eaton HotSwap MBP 6000i G2
- EAN: 3553340684746
- Rack size: 3U
- Construction type: 482.6 mm (19 inch) device
- Dimensions (D × H × W): 125 × 130 × 177 mm
- Weight: 2 kg
- Compliances:
- LVD Directive (CB)
- EMC Directive
- RoHS Directive
- REACH
- WEEE Directive
- Packaging Directive
- Certifications:
- IEC/EN 62040-1
- IEC/EN 62040-2
- IEC/EN 62040-3
- CE
- UKCA
- Cm
- Ukr
- RCM
Application & accessory
- Type of accessory: bypass
- Used with: 9PX Gen2 (5/6 kVA) / 9SX Gen2 (5/6 kVA)
Output
- Receptacle: (2) C13, (3) C39
- Number of outputs hardwired: 1
Mounting
- Rack mounting kit: yes
- Mounting dimension (standardized): 482.6 mm (19 inch)
Operating conditions
- Temperature range: 0° to 40°C (32° to 104°F)
Package contents
- Maintenance bypass
- Connection cable to the UPS
- Rack mounting kit
- Quick start guide
