The Eaton 9SX8KIG2 is an online double-conversion UPS designed to protect critical equipment in IT, industrial, and laboratory environments. It delivers 8000 VA / 8000 W with unity power factor (PF 1.0) for maximum usable power.
The online topology ensures continuous voltage and frequency regulation, protecting against power disturbances. The UPS features an internal bypass, ensuring power continuity in case of overload or fault.
Advanced battery management (ABM) extends battery life, and the system supports external battery modules for longer runtime. Communication options include USB, RS232, and Eaton Brightlayer software compatibility.

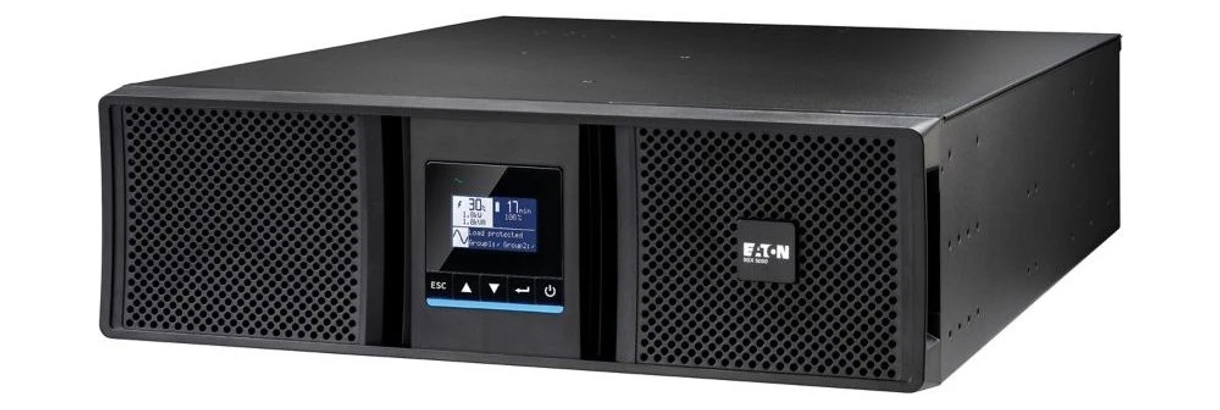

Eaton 9SX 8000i G2 UPS
Key features
- Online double-conversion topology
- 8000 VA / 8000 W with unity power factor
- High efficiency up to 97.3% (up to 99% in Eco mode)
- Internal bypass
- Pure sine wave output for sensitive equipment
- Advanced battery management (ABM)
- Expandable runtime with external battery modules (EBM)
- Multiple communication interfaces (USB, RS232, dry contacts)
- Multilingual graphical LCD display

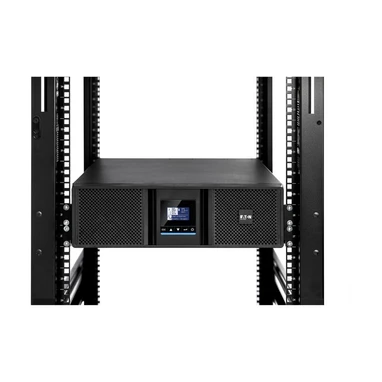

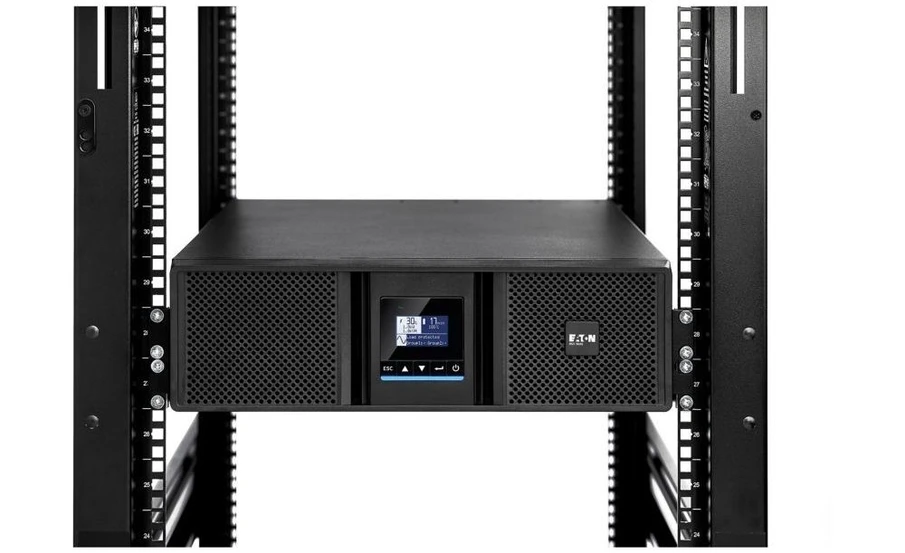

- Flexible tower/rack deployment
Eaton 9SX 8000i G2 UPS
Technical specifications
General
- Model: Eaton 9SX8KIG2
- Model code: Eaton 9SX 8000i G2
- Form factor: free-standing model (tower, 4U)
- Color: black
- Efficiency: up to 97.3% (up to 99.3% in eco mode)
- Internal bypass: yes
- Certifications:
- IEC/EN 62040-1
- IEC/EN 62040-2
- IEC/EN 62040-3
- ENERGY STAR
- CE, cULus, UKCA, RCM, KC, BSMI
- Package contents:
- UPS
- (3) cable glands
- (2) IEC-IEC output cables (1.2 m)
- USB cable (1.8 m)
- supports for tower installation
- safety instructions
- quick start guide
Electrical input
- Input voltage: 176–276 V (100–276 V with derating)
- Input frequency: 40–70 Hz
- Nominal frequency: 50/60 Hz
- Input power factor: >0.99
Electrical output
- Power: 8000 VA / 8000 W
- Output voltage: 230 V (200/208/220/230/240 V)
- Power factor: 1.0
- Waveform: sine wave
- Output voltage distortion (linear load): max. 1%
- Topology: online / double conversion

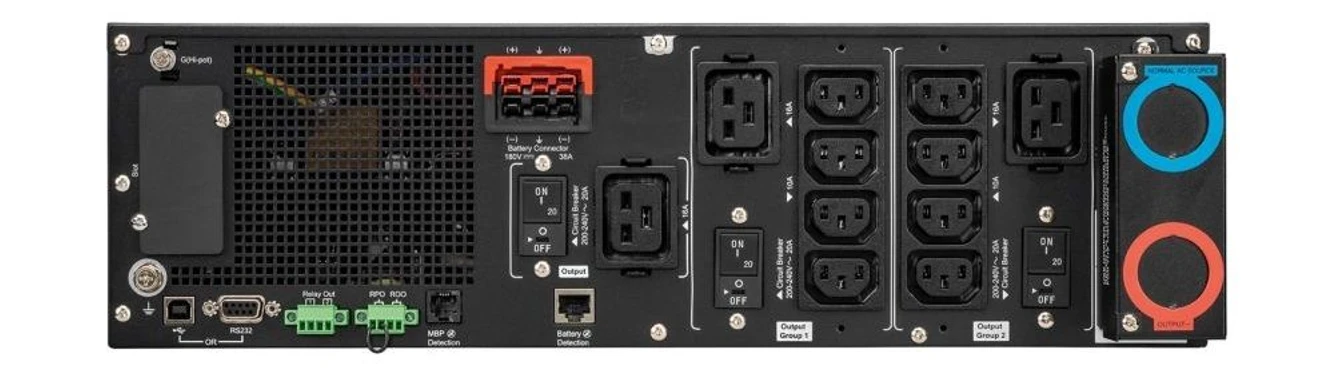

- Outlets: 8× IEC C13, 4× IEC C19, hardwired
Battery
- Type: sealed lead-acid (VRLA)
- Quantity: 20 × 12 V / 7 Ah
- Management:
- ABM+ (predictive battery life) with temperature-compensated charging
- automatic battery test
- deep discharge protection
- automatic recognition of external battery modules
- Extended runtime: external battery modules (EBM)
- Replacement: hot-swappable
- Runtime:
- 10.6 min (50% load)
- 3.5 min (100% load)
- Runtime graph: runtime graph
Communication
- USB: Yes (HID compliant)
- RS232: Yes
- RPO (remote power off): Yes
- ROO (remote on/off): Yes
- Dry contacts: Yes (2 outputs, 1 input)
- Expansion slot: 1
- Software: Eaton Brightlayer
Physical parameters
- Dimensions (D × H × W): 684 × 130 × 440 mm
- Weight: 43.1 kg
Operating conditions
- Noise level: <40 dB
- Temperature: 0–40 °C
- Humidity: 0–95% non-condensing
- Altitude: up to 3000 m
