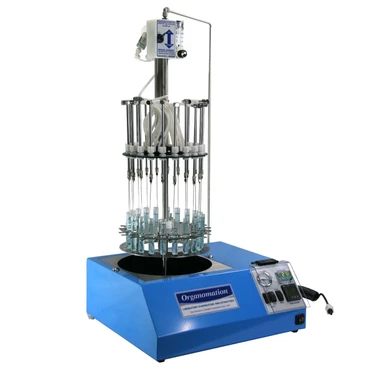

The Organomation 20 Position Auto N-EVAP is the most advanced nitrogen evaporator developed by Organomation. It combines the classic N-EVAP system with timed automation and optional nitrogen self-generation.
The instrument operates in both automatic and manual modes using an integrated pneumatic system. In automatic mode, samples are removed from the heating bath at the end of the cycle, reducing the risk of sample loss or damage.
A digital control system provides precise control of gas flow and bath temperature, ensuring safe and reproducible evaporation of up to 20 samples simultaneously.
Key Features
- Automatic and manual operation modes
- Capacity of up to 20 samples
- Automatic sample removal after cycle completion
- Digital control of temperature and timing
- Nitrogen flow up to 25 L/min
- Built-in pressure reducing regulator
- Dual nitrogen filtration system
- Pneumatic sample lift (gas piston)
- Safety cover and circuit breaker
- Precision needle valve control
- Phthalate-free high-pressure tubing
- Reduced risk of sample loss through automation
Available Model
Automatic 20 Position N-EVAP – Water Bath
- Catalog number: 11220-A
- Bath type: Water
- Number of positions: 20
- Dimensions: 49 × 46 × 92 cm
- Temperature range: 30–100 °C
- Total wattage: 1100 W
Standard Features
- Adjustable flow meter: 0–25 L/min
- Built-in pressure reducing regulator
- Dual nitrogen filters
- Digital temperature controller (LED)
- Electronic timer
- High temperature limit switch
- Safety cover
- Circuit breaker
- High-pressure phthalate-free tubing
- Precision variable valve technology
- Gas piston lift mechanism
- Set of 20 needles (4" × 19 gauge)
Options
- 220v wiring harness
- Z-Purge / positive pressure purge case
- Acid resistant coating on instrument and needles
Technical Specifications
General
- Number of positions: 20
- Sample holder layout: Circular
- Gas manifold: Single Ring
- Gas flow rate: 0–25 L/min
- Sample size range: 10–30 mm OD
- Nitrogen input pressure: 30–110 psig
- Acid resistant coating: Optional
Needles
- Size: 102 mm × 19 ga (4")
- Material: stainless steel with plated brass hub
Sample Lift Mechanism
- Type: Gas piston
- Function: automatic lifting/removal of samples
Control System
- Digital temperature control (LED display)
- Electronic timer for gas and heating
Heating Specifications
- Model: 11196
- Medium: Water
- Inside dimensions: 11 × 11 × 5.5 in
- Outside dimensions: 49 × 46 × 18 cm
- Power: 1100 W
- Temperature range: 30–100 °C
- Controller: digital electronic
- Accuracy: ±2 °C
Accessories
- Nitrogen generator (20 L/min)
- Pasteur pipette adapters
- Pressure reducing regulator 0–160 psi
- High temperature silicone fluid
- Various needle sizes and gauges
Replacement Parts
- NA1955 – Nitrogen generator
- NA0603 – Needles 4" × 19 ga
- NA0636 – Pasteur pipette adapter
