Streamline™ binary gradient HPLC system consists of two P1 pumps, static mixer, CT1 column thermostat, PDA1 diode-array detector, AS1 auto-sampler, and Clarity PDA datastation.
FEATURES
- Optimized pump mechanics with parallel piston design offers excellent flow rate accuracy and gradient composition at all solvents ratios
- Variable volume injection range 0.1 - 999.9 μl, high precision and reproducibility, and low carryover AS1 autosapler
- Excellent signal-to-noise ratio of the PDA2 detector
- Data acquisition, processing and instrument control is by Clarity Chromatography Station*
COMPONENT SPECIFICATION
- Gradient solvent delivery system consisting of two P1 HPLC pumps

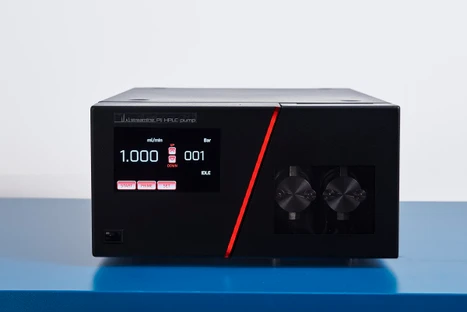

COMPONENT P1 HPLC pumps
- Flow Rates: 0,01 ml/min – 9,99 ml/min with step 0.01 ml/min (analytical)
- Flow Rates: 0,10 ml/min – 40,0 ml/min (preparative)
- Pressure: 42 MPa/6000 psi (analytical, stainless steel)
- Pressure: 35 Mpa/5000 psi (analytical, PEEK)
- Pressure: 10 Mpa/1500 psi (preparative)
- Flow precision: ± 0,2% RSD @ 1mL/min. and 1,000 psi (analytical)
- Flow accuracy: ± 1% @ 1mL/min. and 1,000 psi (analytical)
- Pressure accuracy: ± 2% of full-scale, with 80:20 H2O/IPA @ 1000psi
- Pulsation: better than ± 0.5% @ 1mL/min. and 1,000 psi (analytical)
- Remote control: USB
- Remote control: Start, Stop, Status, Error
COMPONENT - PDA1 detector
- Wetted Materials: Stainless Steel/ PEEK*, teflon, Glass (*depending on configuration)
- Light Source: Deuterium Lamp, Tungsten Lamp
- Wavelength Range: 190 – 720 nm
- Number of Diodes: 256
- Baseline Noise: ± 1 x 10-5 AU (@240 nm, 2 sec. risetime)
- Baseline Drift: less than 3 x 10-4 AU/h
- Wavelength Accuracy: 0.5 nm
- Mean Pixel Pitch: 2.2 nm
- Resolution: 7 nm
- Linearity: higher than 2.0 AU
- Data Rate: 1 Hz – 100 Hz
COMPONENT - CT1 Column thermostat
- Temperature range: 10 °C above ambient temperature to 100 °C
- Temperature accuracy: max. 0,5 % of actual temperature
- Temperature stability: RSD < 0,4 %
- Settability: 0,1 °C
- Internal dimensions: 320 x 50 x 30 mm (L x W x H)
- Compartment material: PTFE coated metal
- Compartment connection: USB
- Control: build-in color touch panel, datasystem
COMPONENT - AS1 autosampler: X-Y-Z-Operation; motor driven syringe, Capacity: 60 vials, Sample Loop: standard, 20μl, Reproducibility: Fix Volume: < 0.5%, Variable Volume: <1.0%, Carry-over: <0.01% , Programmable wash.
COMPONENT - Clarity™ Chromatography Station: PDA data acquisition and evaluation, gradient, and autosampler control with pre-set methods for experimental settings. PC Win 10 Professional with LCD monitor .
Ordering information:
PN/Component:
- SSG101-001 Streamline™ binary HPLC system (Includes P1m+P1s pumps, PDA1 detector, CT1 thermostat, AS1 autosampler, solvent rack, Clarity PC station)
Optional configurations:
- SPDA99-201 Remove PDA1 diode-array detector from system
- ST99-001 Remove CT1 column thermostat from system
- SAS99-001 Remove AS1 autosampler from system
- SUV90-001 Add UV1 Variable UV/Vis detector to system
- SFC90-001 Add FC1 Fraction collector to system
- SCT90-002 Add CT1i column thermostat with manual injector from system
