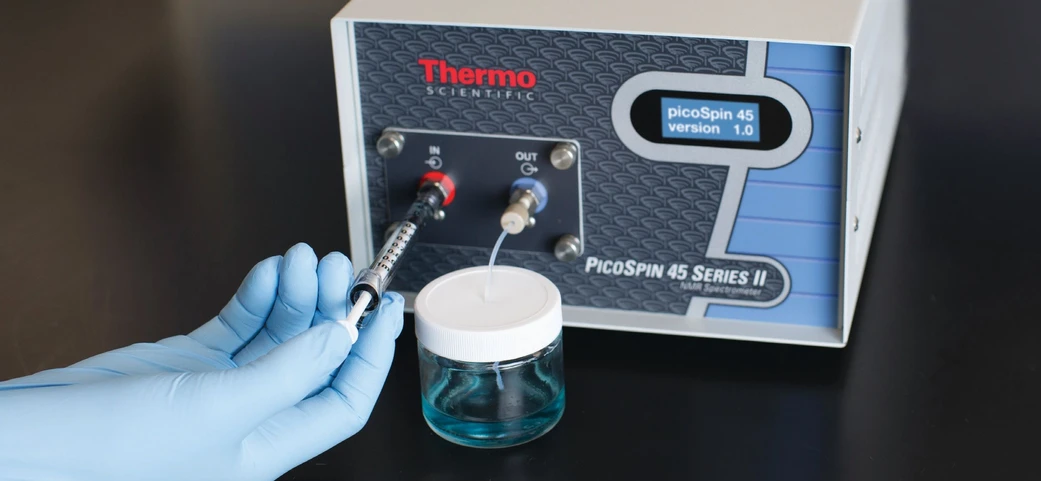

Get a dedicated NMR spectrometer for your research, manufacturing process, or classroom with the affordable Thermo Scientific™ picoSpin™ 45 Series II NMR Spectrometer. A true breakthrough in chemical instrumentation, the picoSpin 45 occupies only a fraction of the space of a conventional NMR system and requires no specialized training to operate. Simply inject 30 microliters of liquid sample into the internal capillary via front-panel fittings to obtain a high-quality spectrum.
The Series II model offers streamlined workflows, a modern web-based interface, automatic shimming, and customizable methods — ideal for both novice and experienced users.
A temperature-stabilized permanent magnet ensures consistent, maintenance-free performance with no need for cryogens. NMR data is generated in the industry-standard JCAMP-DX format, compatible with common NMR analysis software. The internal capillary is housed in a replaceable cartridge, allowing users to easily swap it out if blocked or contaminated.

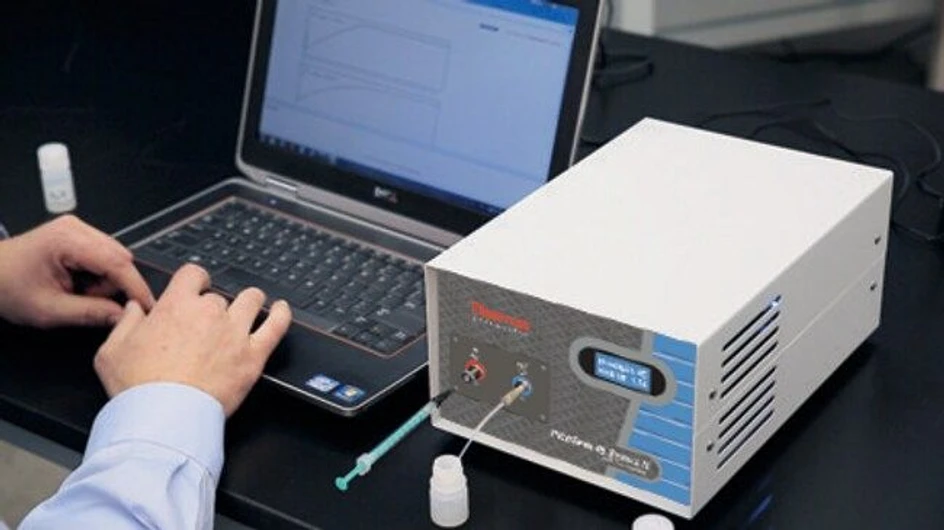

Thermo Scientific™ picoSpin™ 45 Series II NMR Spectrometer
Key Features:
- High-performance, high-resolution, compact, and portable design
- Easy to use — no specialized training required
- Replaceable capillary cartridge
- Microcoil capillary probe
- Fully programmable pulse sequencer
- Ethernet connectivity
- Web-based graphical user interface
- Includes a one-year license for Mnova™ NMR software
- Sample volume: 30 μL
Specifications:
- Capillary Cartridge: 400 µm ID, 30 µL volume, 1/16 in. fittings, user-replaceable
- Electrical Requirements: 100/230 V, 50/60 Hz, 150 W
- Environment: No cryogens or compressed gases required; standard lab environment
- Magnet: Rare earth permanent magnet, 1.1 Tesla, temperature stabilized
- Performance: Larmor Frequency 45 ± 1 MHz (proton), chemical shift resolution ≤ 40 ppb (FWHM)
- Data Output: JCAMP-DX format, compatible with standard NMR programs
- Sample Introduction: Syringe injection
- Dimensions (W × D × H): 14.6 × 17.8 × 29.2 cm (5.75 × 7 × 11.5 in.)
- Weight: 4.8 kg (10.5 lb)
- Unit Size: Each
