Identify ionic salts in seconds with minimal sample preparation. The Thermo Scientific™ IonicX™ Portable XRF Analyzer provides:
- Fast and accurate verification of ionic salt raw materials
- High sample throughput for pharmaceutical and biopharmaceutical manufacturers
Cut testing time and costs by replacing:
- time-consuming
- resource-intensive
- wet chemistry and benchtop methods
with a ✅ non-destructive, ✅ non-contact, ✅ portable XRF analyzer for ionic salts.
⚙️ Key Features
- Portable verification of a wide range of ionic salts in seconds
- Compliant with 21 CFR Part 11:
- electronic signatures
- user access control
- audit trails
- Non-destructive testing of raw materials
- Minimal sample preparation
- Simple operation, no extensive operator training required
- Lightweight and compact design for easy portability
- Wi-Fi enabled
- Hot Swap Battery
- IP54 Certified – splash and dust proof

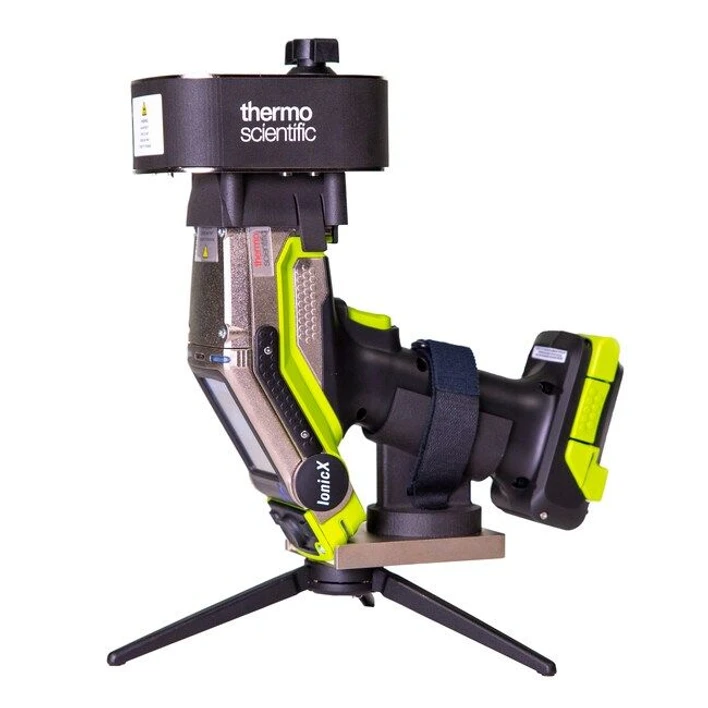

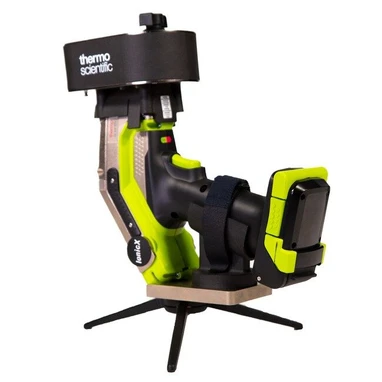

Thermo Scientific™ IonicX Portable XRF Analyzer
📏 Specifications
- Bluetooth: Supports print functionality and barcode reader
- Camera:
- Macro Camera: Integrated CCD macro camera for capturing overview images of parts and tagging measurement locations
- Micro Camera: Integrated CCD micro camera for locating and recording measurement positions
- Certifications/Compliance:
- EN 55011:2010
- EN 61326:2013
- FCC 47 CFR Part 15
- Safety EN 61010; 2010 (3rd Ed) with national deviations for US and Canada
- RoHS EN 50581; 2012
- Data Entry:
- Touchscreen keyboard
- User customizable data entry
- Optional wireless remote barcode reader
- Data Storage:
- 512 MB internal system memory/16 GB industrial grade storage
- Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved)
- Data Transfer: Wi-Fi, USB
- Dimensions: 12 × 12 × 8 in. (30.48 × 30.48 × 20.32 cm)
- Display Type: Tilting, color, resistive touchscreen display
- IP Rating: IP54 (splash and dust proof)
- Languages: English
- Licensing: Varies by region; Contact your local distributor
- Operating Environment:
- Temperature: 0°C to 50°C (external fan recommended when ambient temperature is greater than 33°C)
- Humidity: 10% to 90% relative humidity non-condensing
- Operating System: Linux
- Optional Accessories:

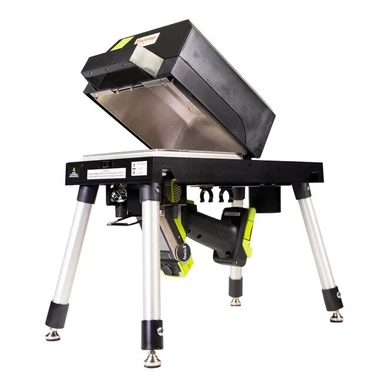

- Thermo Scientific portable test stand
- Thermo Scientific mini test stand
- Power Consumption: 12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply
- Security Features: Password-protected user security
- Software: IonicX PC software
- Spot Size: Standard: 8 mm collimation
- Standard Accessories:
- Locking shielded carrying case
- Two (2) lithium-ion battery packs
- One (1) 110/220 VAC battery charger/AC adaptor
- Check samples
- Safety lanyard
- PC connection cable (USB)
- System Details: Built-in standardization via automatic system check
- Weight (English): 5.8 lbs. with battery and test stand
- Weight (Metric): 2.6 kg with battery and test stand
- X-Ray Source Type:
- X-Ray Tube: Ag anode (6–50 kV, 0–500 μA, 5W max)
- Dynamically adjustable current for optimal sensitivity on every analysis
- Applications: Raw Material Testing
- Detector Type: Proprietary Large Area Drift Detector
- Tube Voltage: 6 to 50 kV
- Unit Size: Each
