Keep up with production demands with automated XRF analysis. When different types of material have to be processed in parallel, the Thermo Scientific™ ARL OPTIM'X™ WDXRF Spectrometer with the Thermo Scientific™ ARL™ SMS-Omega XRF Instrument is the solution. Automatic sample preparation and handling without user intervention, combined with rapid analysis, provide high-quality results. This innovative solution has a compact footprint of less than 1 m², so it can be installed in centralized laboratories or on production shop floors, wherever fully automated industrial production control is needed.
This cost-effective system is a unique combination of Thermo Scientific XRF and automation technology for fully automated sample preparation and analysis of one material type.
Main Features
- Unattended instrument monitoring and integrated audit trail functions

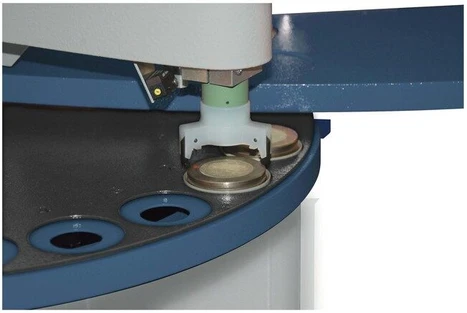

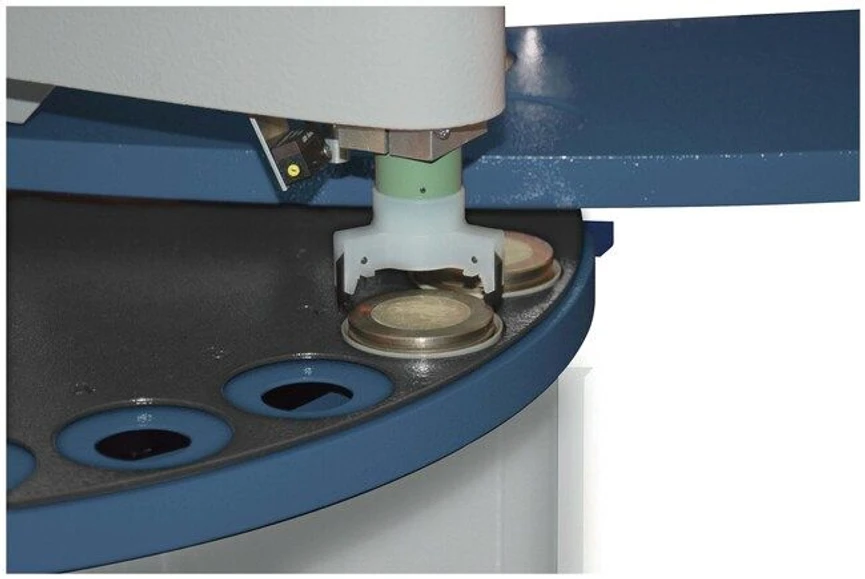

- Sample handling arm equipped with a suction device (metals version) or a gripper (oxide version) loads samples for analysis.
- Samples processed under strict identical and reproducible conditions
- Fixed circular magazine
- XRF functionality provided by the flexible and compact Thermo Scientific™ ARL™ OPTIM'X WDXRF Instrument
Thermo Scientific™ ARL™ SMS-Omega XRF Instrument
Features of the OPTIM'X WDXRF Instrument
- WDXRF platform with sequential and/or simultaneous capabilities
- Configurable to cover all elements from fluorine (F) to uranium (U) in sequential mode
- Fast analysis of solids, liquids and loose powders with superior spectral resolution
- No water cooling or gas supply required (depending on configuration)
- Closely coupled optics for increased intensity (50% higher than conventional geometry)

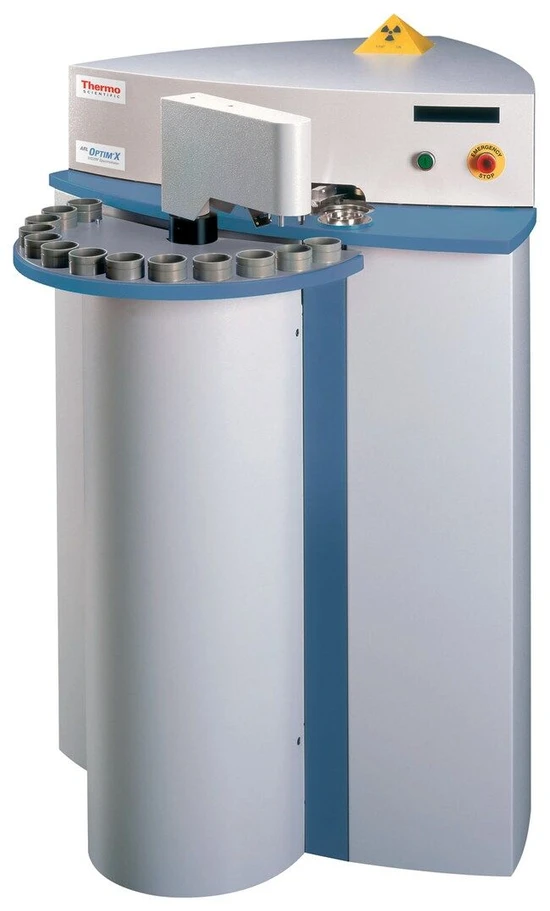

Thermo Scientific™ ARL™ OPTIM'X WDXRF Spectrometer

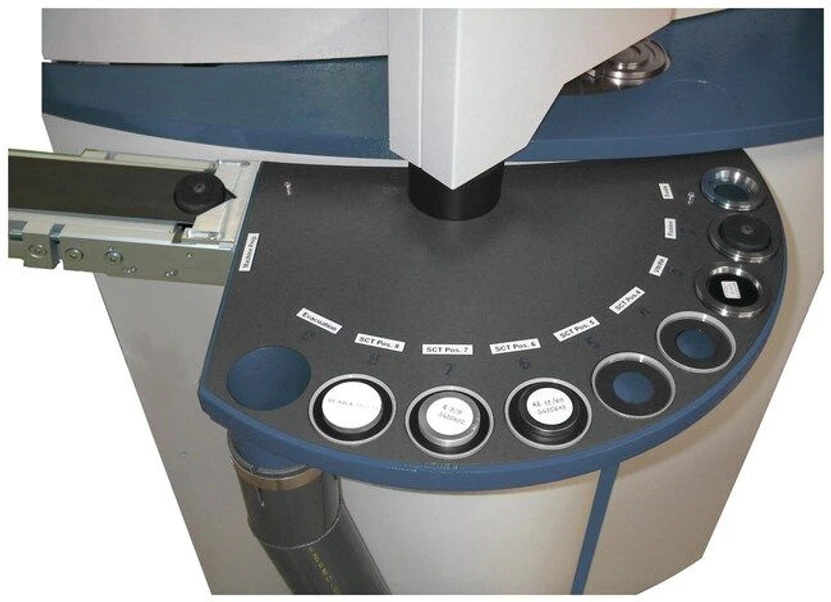

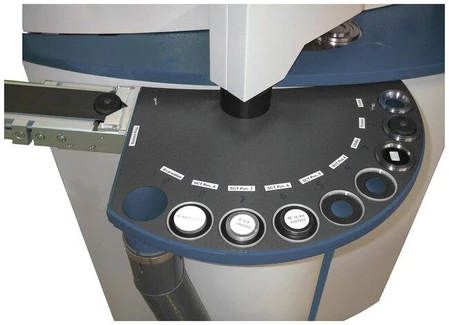

Features of the Fixed Circular Magazine
- Eight positions for storing reference standards
- Allows occasional manual introduction of prepared samples
- One additional position dedicated to filing production samples following analysis
- The complete system can also be supplied within a Thermo Scientific™ ARL™ QuantoShelter container for in situ analysis closer to the process.
Thermo Scientific™ ARL™ SMS-Omega XRF Instrument
