Industries from mining and exploration to scrap metal recycling depend on fast, accurate elemental analysis. The Thermo Scientific™ Niton™ XL3t GOLDD+ XRF Analyzer provides reliable, real-time data for sample identification and positive material identification for even difficult-to-analyze light elements, without helium purging or vacuum pumps.
The Niton XL3t GOLDD+ Analyzer delivers a feature-rich package enhanced with Geometrically Optimized Large Area Drift Detector (GOLDD™) technology for improved light element (Mg-S) analysis, the lowest limits of detection and fastest measurement times.
⚡ Performance:
GOLDD Technology: When low detection limits and high sample throughput are critical, the Niton XL3t GOLDD+ XRF analyzer delivers measurement times up to 10-times faster than conventional Si-PIN detectors and up to 3-times more precise than conventional smaller silicon drift detectors (SDD) - without helium purge or vacuum. For further enhancing light element analysis, a helium purge option is available. Niton analyzers also feature the highest performance X-ray tube and speed detector available on the market.
🧪 Wide Range of Applications:
- Scrap Metal Recycling:
- Sorts aluminum, titanium and bronze alloys, and achieves superior performance for tramp and trace element analysis.
- Mining Exploration:
- Fast, accurate analysis of light elements.
- Identifies anomalies near the averages naturally found in the earth's crust.
- Facilitates advanced exploration and soil analysis, concentrate measurement, ore blending, precious metal identification and lab analysis prequalification.
- Environmental:
- Detects contaminants such as chlorine and sulfur in sediment and arsenic in soil.

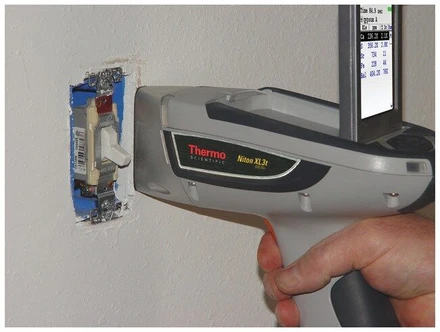

- Identifies environmental hazards in residential, commercial and industrial settings, such as toxic drywall.
⚙️ Features
- Standard analytical range: Up to 30 elements from Mg to U (varies by application).
- Most powerful x-ray tube on the market for handheld XRF analysis.
- Point and shoot simplicity- very easy to use even by nontechnical personnel.
- Rugged design for real-world industrial environments.
- Nondestructive analysis with near instantaneous results.
- Sealed against moisture and dust.
- Ergonomically designed.
- Daylight-readable icons.
- Incorporates multi-language options.
- Color, touch-screen display.
🔗 Connectivity
- Integrated USB and Bluetooth™ communications provide direct data transfer to your PC or networked storage device.
- Standard Thermo Scientific™ Niton Data Transfer (NDT™) PC software allows you to:
- Set operator permissions
- Generate custom reports
- Print certificates of analysis
- Remotely monitor and control the instrument from your PC
- Optional accessories: Bluetooth barcode reader, Bluetooth printer, Bluetooth GPS

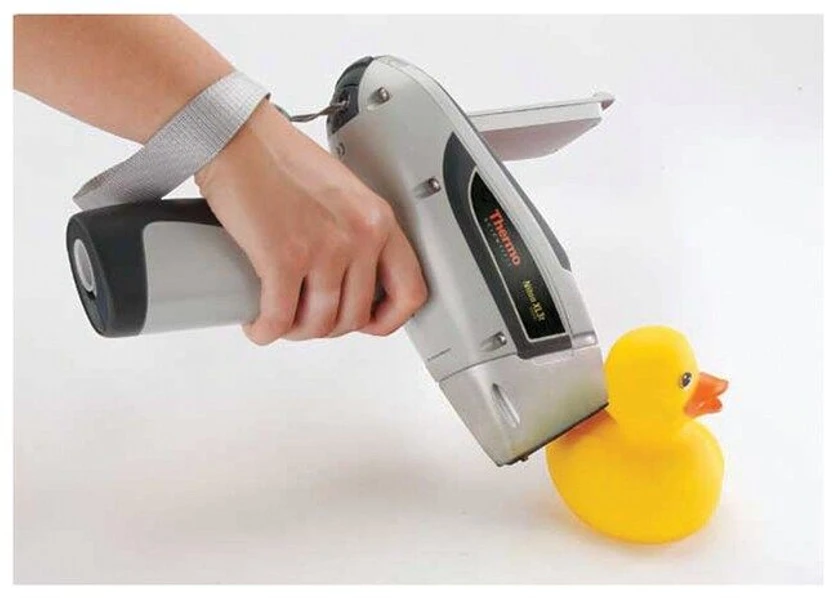

Thermo Scientific™ Niton™ XL3t GOLDD+ XRF Analyzer
📏 Specifications
- Analytical Range: Up to 30 elements from Mg to U (varies by application)
- Available Analytical Modes: Varies by application
- Alloy Modes: Metal Alloy, Electronics Alloy, Precious Metals
- Bulk Modes: Soil, Mining, TestAll
- Plastic Modes: RoHS Plastics, Toy and Consumer Goods, Plastics, TestAll, Painted Products
- Custom Modes: Upon request
- Certifications/Compliance: CE, RoHS
- Data Entry: Touch-screen keyboard, user-programmable pick lists, optional wireless remote barcode reader
- Data Memory: 32MB internal system memory / 128 MB internal user storage
- Data Storage: Internal >10,000 readings with spectra
- Data Transfer: USB, Bluetooth and RS-232 serial communication
- Description: Niton XL3t GOLDD+ XRF Analyzer
- Dimensions (L × W × H): 9.6 × 9.05 × 3.75 in. (244 × 230 × 95.5 mm)
- Display Type: Tilting, color, touch-screen display
- Height (English): 3.75 in.
- Height (Metric): 95.5 mm
- Item Description: XL3t GOLDD+ XRF Analyzer
- Length (English): 9.6 in.
- Length (Metric): 244 mm
- Licensing: Varies by region. Contact your local distributor.
- Max. Power: 2W
- Operating System: Ownership
- Optional Accessories:
- 3mm small-spot collimation
- Portable test stand
- Stationary (benchtop) test stand
- Mobile test stand
- Field Mate
- Thermo Scientific™ Extend-a-Pole™
- Welding mask
- Thermo Scientific™ HotFoot™ hot surface adapter
- Soil testing guard
- Power Consumption: 0 to 200 μA
- Security Features: Password-protected user security
- Standard Accessories:
- Integrated CCD camera for locating and storing images
- Locking shielded carrying case
- Shielded belt holster
- Two lithium-ion battery packs
- Spare battery pack
- 110/220 VAC battery charger/AC adaptor
- PC connection cables (USB and RS-232)
- Thermo Scientific™ Niton Data Transfer (NDT™) PC software
- Safety lanyard
- Check samples/standards
- System Electronics: 533 MHz ARM 11 CPU, 300 MHz dedicated DSP, 80 MHz ASICS DSP for signal processing
- Tube Type: Ag anode 50 kV and 200 μA
- Voltage: 6 to 50 kV
- Weight (English): 3 lb.
- Weight (Metric): 1.3 kg
- Width (English): 9.05 in.
- Width (Metric): 230 mm
- Applications: Sample Identification, Positive Material Identification
- Detector Type: Geometrically Optimized Large Area Drift Detector
- Tube Voltage: 6 to 50 kV
- Unit Size: Each

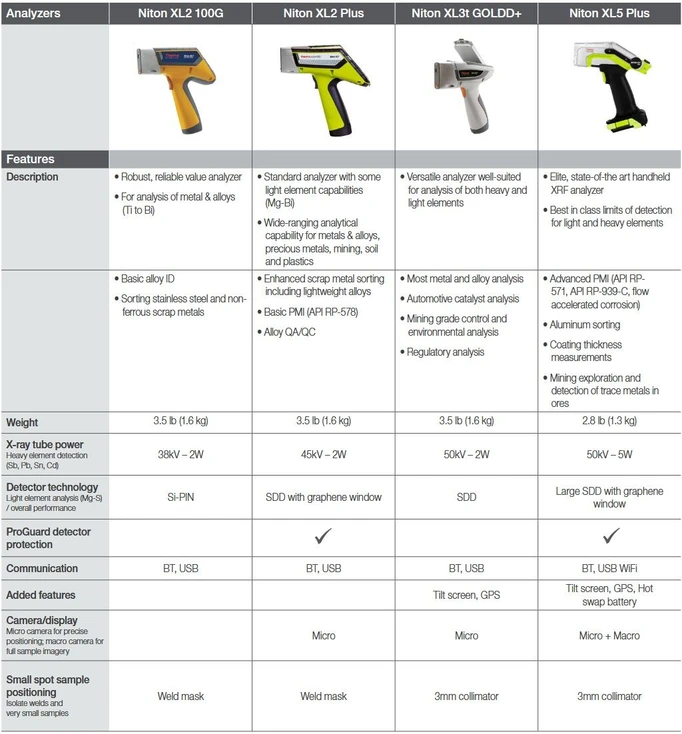

Which analyzer for your application?
