Be absolutely sure of the value of the precious metals you buy and sell with a fast, simple nondestructive solution for gold analysis. Quickly distinguish between gold plating and solid gold and determine the accurate karat (K) weight of gold jewelry with the Thermo Scientific™ Niton™ DXL Precious Metal Analyzer.
Designed specifically for countertop use in retail environments, the Niton DXL analyzer, with Thermo Scientific™ AuDIT™ gold-plating detection technology, delivers fast, reliable results for gold testing and metal analysis with just the push of a button.
Just a few seconds is all it takes to measure the exact precious metal content in jewelry, coins, and other valuable products using the Niton DXL Precious Metal Analyzer.
⚙️ Features
- Standard analytical range: 22 elements including all precious metals.
- Nondestructive analysis with near instantaneous results.
- Exceptionally fast, easy to use – see results in seconds on a bright, touch-screen color display.
- No harsh chemicals or acids that can burn your fingers, ruin clothing, and damage countertops.
- Easier, faster, more accurate than nitric acid test methods.
- Faster, more comprehensive analysis than fire assay, with comparable accuracy.
- Compact, elegant, ergonomic design for countertop placement in retail environments.
- Measure the content of all gold and precious metals without manually changing the calibration.
- Precisely determine the presence and concentration of other trace alloying elements and dangerous heavy elements, which could impact valuation and future refining needs.
- Built-in CCD camera makes precise sample positioning effortless.
- Optional small‑spot focus allows isolation and testing of small components.

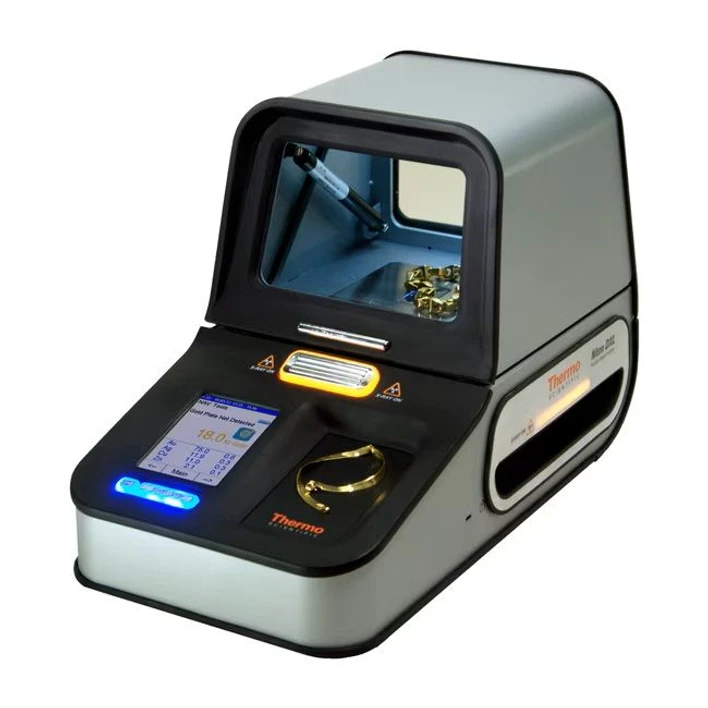

Thermo Scientific™ Niton™ DXL Precious Metal Analyzer
📏 Specifications
- Applications: Non-destructive method to test the purity and chemistry of precious metals
- Data Memory: 64MB internal system memory/128MB internal user storage
- Data Storage: Internal >10,000 readings with spectra
- Data Transfer: USB
- Description: Niton DXL Precious Metal Analyzer
- Detector Type: High-performance Si-PIN semiconductor
- Display Type: Color touch-screen display
- Item Description: Niton DXL Precious Metal Analyzer
- Height (English): 10.4 in.
- Height (Metric): 265 mm
- Length (English): 15.6 in.
- Length (Metric): 396 mm
- Width (English): 8.1 in.
- Width (Metric): 206 mm
- Length (English) Chamber: 6.9 in.
- Length (Metric) Chamber: 172 mm
- Height (English) Chamber: 5.2 in.
- Height (Metric) Chamber: 133 mm
- Width (English) Chamber: 7.2 in.
- Width (Metric) Chamber: 184 mm
- Optional Accessories:
- 3mm small-spot focus feature
- Additional battery pack
- External battery charger
- Locking shielded carrying case
- Power Consumption: 80µA
- Security Features: Password-protected user security
- Standard Accessories:
- One 7.2V 4-cell lithium-ion battery pack (charges in the instrument while on external power)
- 110/220V AC adapter; USB PC connection cable
- Thermo Scientific™ Niton Data Transfer (NDT™) PC software
- 8mm measurement area; Internal CCD camera for precise sample positioning
- Adhesive Tack for stabilization of samples
- Spare puncture-resistant x-ray windows
- Tube Type: Ag anode 45kV maximum, 80µA maximum
- Tube Voltage: 45 kV
- Weight (English): 17 lb.
- Weight (Metric): 7.7 kg
- Voltage: 45 kV
- System Electronics:
- 400MHz ARM 11 CPU
- 300MHz dedicated DSP
- 80MHz ASICS DSP for signal processing
- 4096 channel MCA
- Data Entry: Touch-screen keyboard, user-programmable pick lists
- Licensing: Varies by region. Contact your local distributor
- Dimensions (L × W × H): 15.6 × 8.1 × 10.4 in. (396 × 206 × 265 mm)
- Certifications/Compliance: CE, RoHS
- Unit Size: Each
