The Thermo Scientific™ ARL™ 9900 IntelliPower Series spectrometer is a powerful and versatile WDXRF analyzer with optional integrated XRD, designed for high-performance, real-time process control in demanding industrial environments. It enables rapid, precise, and fully automated elemental and phase analysis of solid samples such as metals, cement, and minerals.
With up to 32 fixed monochromators and one to three gearless goniometers, the ARL 9900 performs both simultaneous and sequential elemental analysis across a wide range—from boron to americium (Z=5–95). It can be enhanced with a compact X-ray diffraction (XRD) module to deliver phase-specific data, such as free lime content, clinker phases, and iron compounds in DRI processes.
Thermo Scientific™ ARL™ 9900 IntelliPower Series: Integration of XRF and XRD in the same instrument: one sample, one instrument, one analysis for two techniques.
Applications
- Metals: iron, steel, aluminum, copper, zinc, nickel, titanium, magnesium alloys, slags, and sinters
- Cement: raw meal, clinker, free lime, clinker phases, limestone, additives
- Mining & Minerals: ores, rocks, beach sands, sediments, industrial minerals
- Other Materials: ceramics, glass, polymers, soils
- By-products: process residues and waste materials
Key Features
- Fully integrated simultaneous and sequential WDXRF analysis in one instrument
- Configurable with up to 24 fixed channels and one or more goniometers for ultra-fast, high-precision analysis
- Rapid and reliable sample introduction system with multiple automation levels
- Wide detection range: from parts per million (ppm) to 100% concentration
- LoVap™ X-ray tube with 50 μm Be window for long-term stability and enhanced performance
- Modular IntelliPower platform available in 1500 W, 2500 W, and 4200 W configurations
- Ultra-low detector gas consumption
- Optional integrated XRD module for qualitative and quantitative phase analysis
- Scalable design to meet evolving analytical requirements
- Factory calibration ensures fast commissioning and immediate operational readiness

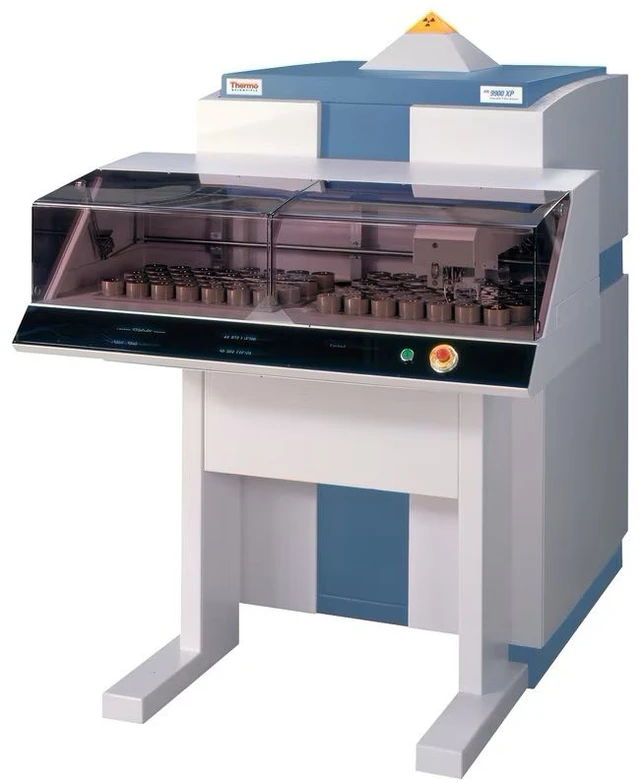

Thermo Scientific™ ARL™ 9900 IntelliPower Series
X-ray System
- X-ray tube mounted above the sample: protects the system from fragile or damaged samples
- Thermostatically regulated spectrometer: ensures consistent analytical conditions and excellent measurement stability
Fixed Monochromators
- Up to 32 fixed channel monochromators for full simultaneous operation
- Compact slit-crystal geometry: optimized for low detection limits and rapid analysis of dedicated elements
XRF Goniometers
- Programmable for both quantitative and qualitative analysis
- Moiré fringe technology ensures fast, gearless sequential X-ray spectrometry with excellent angular precision
- SmartGonio: compact system covering F to Am with up to 3 crystals
- Universal goniometer: extended coverage from B to Am with up to 9 crystals and 4 collimators
Calibration Options
- Fully factory-calibrated for a broad range of sample types including:
cast irons, steels, brasses, bronzes, copper, aluminum, zinc, tin, magnesium, nickel, titanium, cobalt, ferro-alloys, cement, minerals, slags, limestone, ceramics, glass, soils, sediments, rocks, and polymers - XRD calibrations available for:
free lime, clinker phases (C3S, C2S, C3A, C4AF), amorphous content in clinker, DRI phases, and more
Automation
- Fast and dependable sample introduction with scalable automation
- Compatible with ARL SMS systems for fully automated online process control, including integrated sample preparation
