S-EVAP-RB 8 Position 250ml
The mechanical thermostat 8 position S-EVAP-RB large scale solvent evaporator (Cat# 12060) can evaporate up to 8 samples at once with a capacity of up to 250 ml (Cat# GS2162) at each sample position. Smaller glassware accommodating up to 125 ml (Cat# GS2161) may also be used with the purchase of adapter rings (Cat# XA2286).

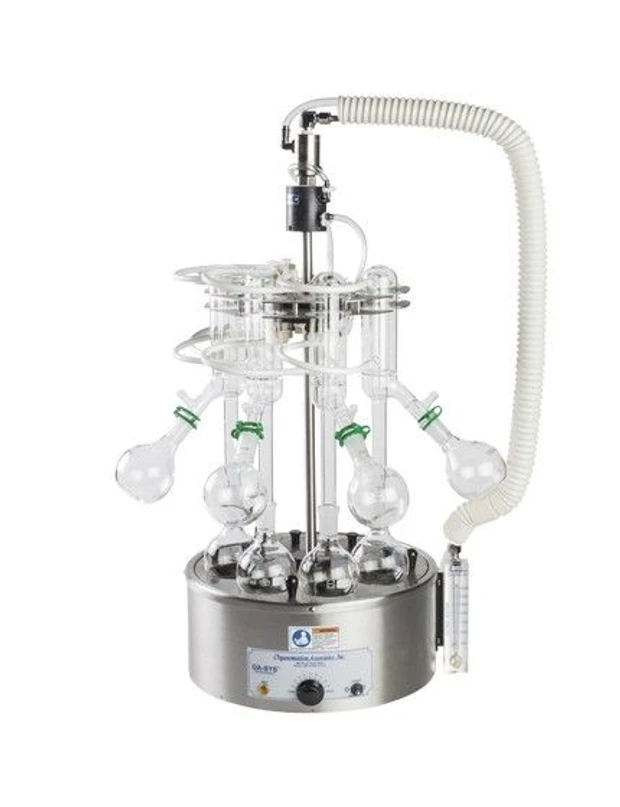

Organomation: S-EVAP-RB Solvent Evaporator - 8 position
S-EVAP-RB 10 Position 250ml
The digitally controlled 10 position S-EVAP-RB large scale solvent evaporator (Cat# 12090) can evaporate up to 10 samples at once with a capacity of up to 250 ml (Cat# GS2162) at each sample position. Smaller glassware accommodating up to 125 ml (Cat# GS2161) may also be used with the purchase of adapter rings (Cat# XA2286).
Organomation: S-EVAP-RB Solvent Evaporator - 10 position
Standard features (S-EVAP-RB 8 Position and S-EVAP-RB 10 Position)
- Mechanical thermostat with temperature control +/- 2°C / Digital electronic temperature control +/- 2°C (S-EVAP-RB 8 Position / S-EVAP-RB 10 Position)
- Manifold for holding solvent recovery condensers
- Flow meter and rigid supply tube for condenser water supply
- Condenser water supply/drain manifold connects to a bench cold-water tap, or a refrigerated water chiller for improved control of condenser temperature and water conservation
- Parallel water supply/drain manifolds with quick disconnect tube fittings
- Bath temperature range 30°C - 100°C
- Evaporate solvents with boiling points up to 65°C
Advantages (S-EVAP-RB 8 Position and S-EVAP-RB 10 Position)
- Solvent recovery: recover up to 97% of starting solvent volume with individual collection glassware
- Conserves valuable bench space: all samples are arranged in a circle
- Easy sample access: the instrument rotates allowing all samples to be accessed from the front
- Fewer connections: one water supply line in, one drain line out
OPTIONS (Add to main Cat# when purchasing)
S-EVAP-RB 8 Position
- Positive pressure type Z purged bath (Option Code -Z), Cat# 12060-Z
- 240V wiring and plug (Option Code -2), Cat# 12060-2
- Nitrogen purge manifold (Option Code -N), Cat# 12060-N
S-EVAP-RB 10 Position
- Positive pressure type Z purged bath (Option Code -Z), Cat# 12090-Z
- 240V wiring and plug (Option Code -2), Cat# 12090-2
- Nitrogen purge manifold (Option Code -N), Cat# 12090-N
ACCESSORIES (S-EVAP-RB 8 Position and S-EVAP-RB 10 Position)
- 250 ml individual collection glassware set Cat# GS2162
- 125 ml individual collection glassware set Cat# GS2161
- Adapter rings for 3.0 in hole Cat# XA2286
- Cover for 3.0 in disk holes Cat# XA2282
- Cover for 2.125 in disk holes Cat# XA3283
- Boiling grids Cat# GA2245
- Chiller
Specification
Model Options
- S-EVAP-RB 8-Position (250 mL)
- Catalog Number: 12060
- Number of Sample Positions: 8
- Bath Model: 9125
- Power: 900 W
- Temperature Control: Mechanical thermostat
- Bath Size (Inside): 12 × 4.5 in (30.5 × 11.4 cm)
- System Dimensions: 24 × 22 × 30 in (61 × 56 × 76 cm)
- S-EVAP-RB 10-Position (250 mL)
- Catalog Number: 12090
- Number of Sample Positions: 10
- Bath Model: 16165
- Power: 1600 W
- Temperature Control: Digital controller with LED display
- Bath Size (Inside): 16 × 4.5 in (40.6 × 11.4 cm)
- System Dimensions: 26 × 24 × 30 in (66 × 61 × 76 cm)
Shared Features
- Application: Round-bottom flasks with shallow bath
- Sample Flask Type: Round-bottom with flat base, 250 mL
- Required Glassware: GS2162
- Condenser Type: Inverted Hopkins with 24/40 sidearm
- Collection Flask Type: 250 mL round with flat bottom
- Heating Medium: Water
- Bath Temperature Range: 30–100 °C
- Temperature Accuracy: ±2 °C
- Bath Outside Dimensions (W × D × H):
- Model 9125: 18 × 16 × 7 in (46 × 41 × 18 cm)
- Model 16165: 24 × 19 × 6 in (61 × 48 × 15 cm)
