S-EVAP-KD 8 Position 500ml
The digitally controlled 8 position S-EVAP-KD large scale solvent evaporator (Cat# 12018) can evaporate up to 8 samples at once with a capacity of up to 500 ml at each sample position. Glassware sets can be purchased for individual solvent collection (Cat# GS2153), or central solvent collection (Cat# GS2153-C with Cat# GS2158-C8).
Smaller glassware accommodating up to 250 ml can be purchased for individual solvent collection (Cat# GS2152), or central solvent collection (Cat# GS2152-C with Cat# GS2158-C8). Smaller glassware is accommodated with the use adapter rings (Cat# XA2284).

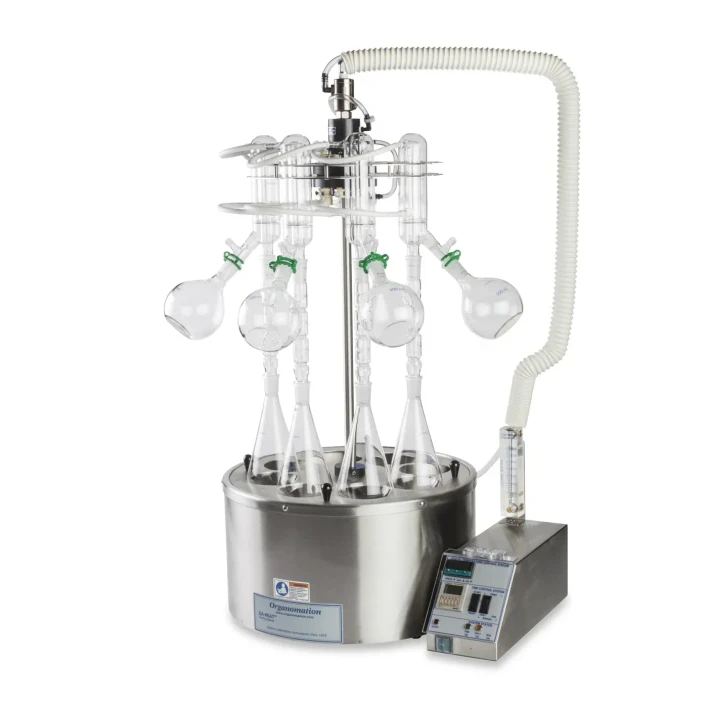

Organomation: S-EVAP-KD (8 positions) Solvent Evaporator
S-EVAP-KD 10 Position 250ml
The digitally controlled 10 position S-EVAP-KD (Cat# 12010) large scale evaporator can evaporate up to 10 samples at once with a capacity of up to 250 mL at each sample position. Glassware sets can be purchased for individual solvent collection (Cat# GS2152), or central solvent collection (Cat# GS2152-C with Cat# GS2158-C10).

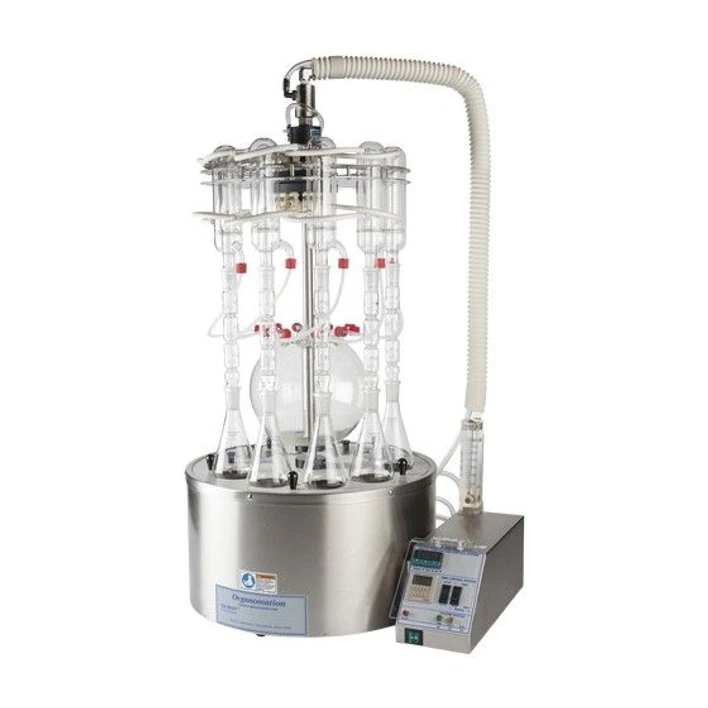

Organomation: S-EVAP-KD (10 position) Solvent Evaporator
Standard features (S-EVAP-KD 8 Position 500ml and S-EVAP-KD 10 Position 250ml)
- Condenser holder assembly for solvent recovery condensers
- Flow meter and rigid supply tube for condenser water supply
- Condenser water supply/drain manifold connects to a bench cold-water tap, or a refrigerated water chiller for improved control of condenser temperature and water conservation
- Parallel water supply/drain manifolds with quick disconnect tube fittings
- Bath temperature range 30°C - 100°C
- Evaporate solvents with boiling points up to 65°C
- Digital electronic temperature control +/- 2°C
Advantages (S-EVAP-KD 8 Position 500ml and S-EVAP-KD 10 Position 250ml)
- Solvent recovery: recover up to 97% of starting solvent volume with individual or central solvent collection
- Conserves valuable bench space: all samples are arranged in a circle
- Easy sample access: the instrument rotates allowing all samples to be accessed from the front
- Fewer connections: one water supply line in, one drain line out
- Protects delicate samples: Organomation vacuum insulated concentrator tubes keep delicate samples safe
- Gentle concentration: water bath is gentler than jacketed concentration tubes in traditional KD set-up
OPTIONS (Add to main Cat# when purchasing)
S-EVAP-KD 8 Position 500ml
- Positive pressure type Z purged bath (Option Code# -Z), Cat# 12018-Z
- 240V wiring and plug (Option Code# -2), Cat# 12018-2
- Reduced height system, 32 inches tall for KD flasks/deep bath
S-EVAP-KD 10 Position 250ml
- Positive pressure type Z purged bath (Option Code -Z), Cat# 12010-Z
- 240V wiring and plug (Option Code -2), Cat# 12010-2
- Reduced height system, 32 inches tall for KD flasks/deep bath
ACCESSORIES
S-EVAP-KD 8 Position 500ml
- 500 ml individual collection glassware set Cat# GS2153
- 500 ml central collection glassware set Cat# GS2153-C with Cat# GS2158-C8
- 250 ml individual collection glassware set Cat# GS2152
- 250 ml central collection glassware set Cat# GS2152-C with Cat# GS2158-C8
- KD rack for 250/500 ml flasks, 8 pos Cat# XA2290
- Adapter rings for 3.875 in hole Cat# XA2284
- Cover for 3.875 in disk holes Cat# XA2283
- Cover for 3.0 in disk holes Cat# XA2282
- Chiller
S-EVAP-KD 10 Position 250ml
- 250 ml individual collection glassware set Cat# GS2152
- 250 ml central collection glassware set Cat# GS2152-C with Cat# GS2158-C10
- Cover for 3.0 in disk holes Cat# XA2282
- KD rack for 250/500 ml flasks, 8 pos Cat#XA2290
- Chiller
REPLACEMENT PARTS (S-EVAP-KD 8 Position 500ml and S-EVAP-KD 10 Position 250ml)
- Buna O-ring set Cat# P1332
- White silicone tubing, 10 ft Cat# P2616
Specification
Model Options
- S-EVAP-KD 8-Position (500 mL)
- Catalog Number: 12018
- Required Glassware: GS2153 (individual), GS2153-C + GS2158-C8 (central)
- Sample Flask Size: 500 mL
- Collection Flask Size: 500 mL (individual), 4.0 L (central, 8-port)
- S-EVAP-KD 10-Position (250 mL)
- Catalog Number: 12010
- Required Glassware: GS2152 (individual), GS2152-C + GS2158-C10 (central)
- Sample Flask Size: 250 mL
- Collection Flask Size: 250 mL (individual), 4.0 L (central, 10-port)
Common Features
- Application: Kuderna-Danish Flasks / Deep Water Bath
- Concentrator Tubes: 10 mL with insulated tips
- Snyder Columns: 3-ball design, 253 mm
- Condenser Type:
- Individual Collection: Inverted Hopkins with 24/40 sidearm
- Central Collection: Inverted Hopkins with ¼ in tube fitting
- Number of Sample Positions:
- 8 or 10 depending on model
- Collection Type: Individual or central
- Overall Dimensions (System):
- Individual Collection: 26 × 24 × 39 in (66 × 61 × 99 cm)
- Central Collection: 24 × 19 × 39 in (61 × 48 × 99 cm)
Heating Bath Specifications
- Bath Model: 16169
- Heating Medium: Water
- Inside Dimensions (Ø × Depth): 16.0 × 8.5 in (40.6 × 21.6 cm)
- Outside Dimensions (W × D × H): 24 × 19 × 10 in (61 × 48 × 25 cm)
- Temperature Range: 30–100 °C
- Temperature Controller: Digital electronic with LED display
- Controller Accuracy: ±2 °C
- Total Wattage: 1600 W
