The SX100M is an efficient benchtop sectioning machine designed to handle a wide range of materials and applications with precision and reliability. It is an ideal solution for sectioning bar stock, castings, fasteners, tungsten carbide, composite materials, electronic components, weldments, and more. With an approximate maximum sample cut diameter of 2.75 inches, the SX100M delivers dependable performance in a compact laboratory-friendly footprint.
Equipped with a powerful 3 HP (2.2 kW) motor and a 10-inch (250 mm) blade capacity, the SX100M ensures consistent cutting results even for demanding materials. An integrated electronic mechanical braking system enhances operator safety and improves workflow efficiency.

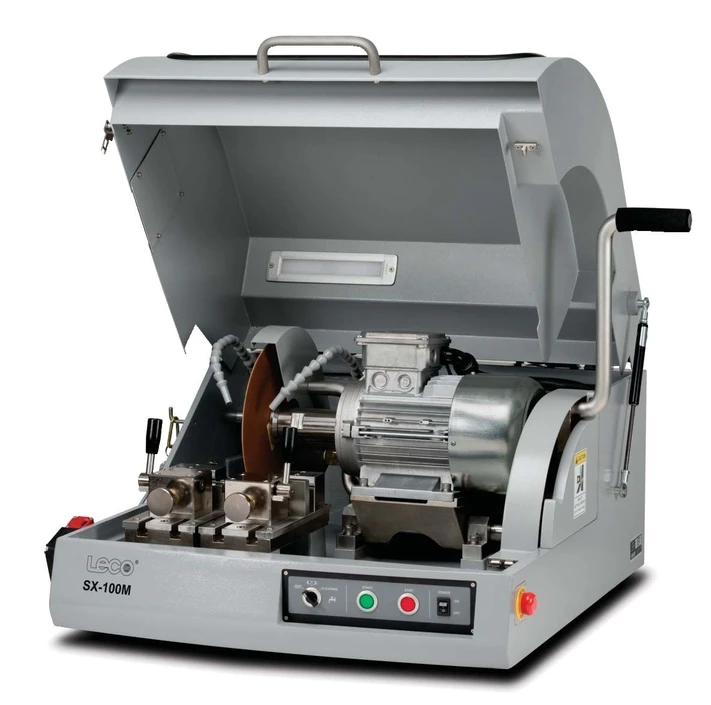

LECO: SX100 Benchtop Metallographic Saw
Key Features
- Radial arm design for manual operation with an ergonomic, user-friendly working height
- Base aluminum casting combined with a steel hood for durability and long service life
- Integrated safety lock to protect the operator during sectioning
- Built-in 6.6-gallon (25 L) recirculating coolant tank
- Sloped interior floor for efficient coolant flow and reduced debris accumulation
- Electronic mechanical braking system for rapid and safe blade stopping
Models
SX100M
- Power supply options: 230 V or 400 V
