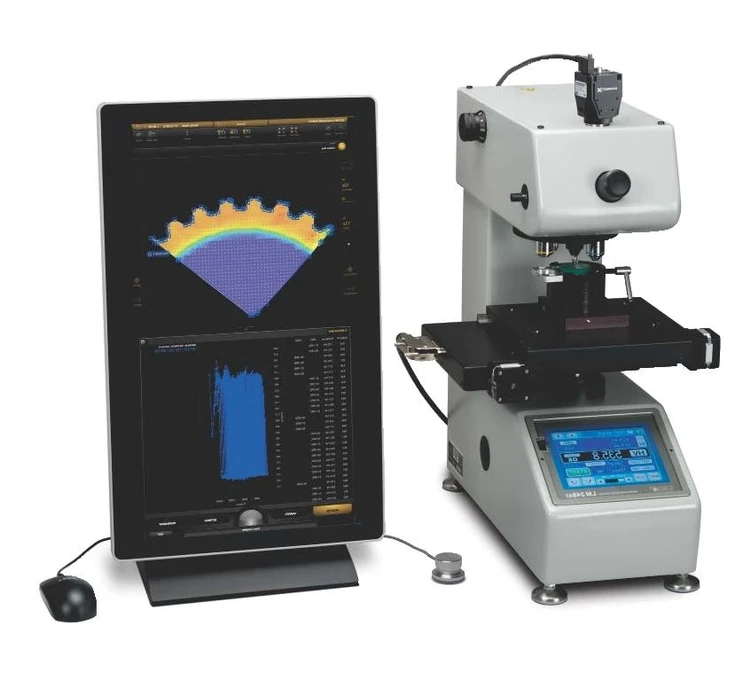

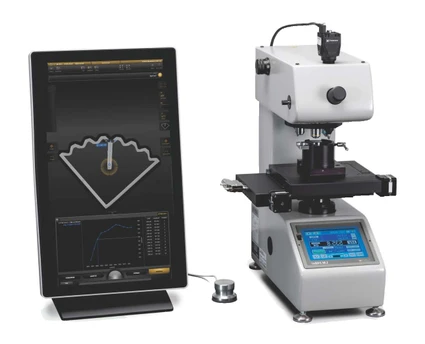

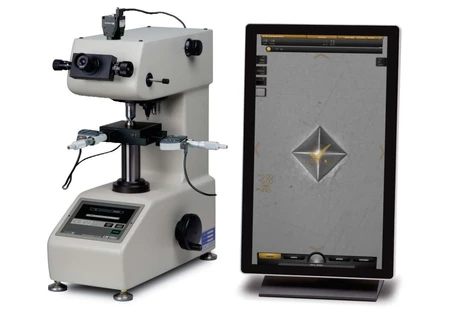

LECO’s AMH55 software is designed to maximize productivity and measurement confidence in microindentation and Macro/Vickers hardness testing. By introducing LECO’s Cornerstone® software platform to hardness testing systems, AMH55 delivers advanced automation, intuitive operation, and flexible reporting for a wide range of applications and surface conditions.
AMH55 supports fully automatic, semi-automatic, and lite configurations, enabling laboratories to tailor their hardness testing workflow to specific needs while maintaining high accuracy and repeatability. Advanced image-recognition technology ensures reliable evaluation even on challenging sample surfaces, making AMH55 a powerful solution for modern hardness testing environments.
LECO: AMH55 Software for Automated Hardness Testing
Key Features
- Advanced image-recognition technology for analysis beyond simple threshold-based methods
- Reliable measurement on scratched, etched, uneven, or variably illuminated surfaces
- Cornerstone® software with optional touch-screen interface for full control of methods, calibrations, analysis parameters, and reporting
- Flexible configurations to support automatic, semi-automatic, or manual workflows
- Customizable data reporting to match laboratory and application requirements
Configuration Options
AMH55 Automatic
- Fully automatic alignment and parfocal tools
- Automatic pixel calibration and shading correction
- Optional Advanced Analysis Module for color-contoured hardness mapping
- Fully customizable reporting
- Motorized X, Y, and Z axis movement
AMH55 Semi-Automatic
- Automatic indent location and analysis
- Automatic alignment and pixel calibration
- Customizable reporting
- Motorized X and Y axes
- Manual focus
AMH55 Lite
- Automatic indent detection and analysis within a single field of view
- Automatic pixel calibration
- Customizable reporting
- Manual X, Y, and Z axes
- Optional digital stage micrometers for position tracking
- Upgradeable to AMH55 Semi-Automatic or Automatic
Compatible Models
- AMH55 with LM110 Series microindentation systems
- AMH55 with LM248 Series microindentation systems
- AMH55 with LV110/LV810 Series Macro Vickers hardness testers
