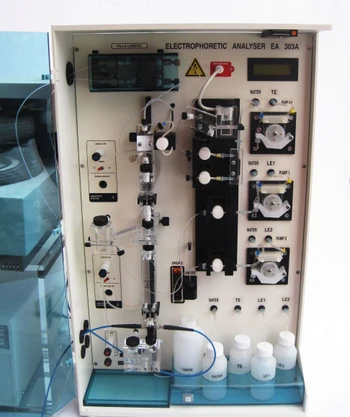

The modular arrangement of this analyser enables its application with several electrophoretic modes of operation e.g.
- isotachophoresis (ITP)
- capillary zone electrophoresis (CZE)
- or the highly efficient combination of ITP – CZE
Users can choose to work with traditional columns (employing contact conductivity detectors) or alternatively take advantage of our updated columns which employ contactless conductivity detectors (less sensitivity and a higher price but with increased lifetimes).
Columns for the first and second dimension are named ‘pre-separation' and ‘analytical' columns respectively. Pre-separation columns employ FEP capillaries (i.d 0.8 mm) and are available in several lengths (see Acessories). Each analytical column is equipped with an adapter (SMA or 2 mm JM) for connection with optical fibres to the UV detection facility. The standard package includes an in-built UV detector with 4 wavelengths, however a variable wavelength or DAD UV detector can be purchased as an optional extra.
The standard and most basic version of the instrument is equipped with an ITP injection valve, 2 columns and modules for manual filling of electrolytes.
Standard Package:
- Preseparation column with contact conductivity detectors employing FEP capillaries
- Analytical column with contact conductivity (FEP capillary) detector
- Variable column lengths: 85 mm PC CLD, 90 mm PC CD and AC CD, 140mm AC CLD, 160 – 200 mm PC CD and AC CD
- Max. voltage: 15kV
- Max. current: 500 mA
- UV detector: 200, 220, 254, 280 nm
- ITP injection valve: 30 μl
- Variable injection volume via microsyringe facility: up to 100 μl
- Dimensions: 400 x 685 x 390 mm (w x h x d)
- Weight: 25 kg
- Power supply: 230, 50 Hz, 100 W
Optional Accessories:
- Preseparation column with contactless conductivity detectors employing FEP capillaries
- Analytical column with contactless detector (FEP or quartz capillary).
- UV VIS detector (190 - 600 nm): optional
- DAD detector: optional
- CZE and micro-preparative injection valve: optional
- Education columns: clear column housing for educational purposes as zones can be directly visualised during separation
