Deliver robust, uncomplicated trace elemental analysis with the Thermo Scientific™ iCAP™ PRO ICP-OES system. This system offers easy-to-use software with pre-optimized method conditions, providing multi-element detection technology far superior to that of single-element AAS.
This compact, benchtop ICP-OES provides simultaneous analysis of trace elements in a range of samples. The vertical torch orientation system delivers excellent robustness for both radial and dual view instruments with a corrosion-resistant inner torch box. The purged echelle polychromator and Charge Injection Device (CID) array detector provide high light throughput, resulting in excellent detection limits.
The system includes
- A 3-channel, peristaltic pump for easy addition of an online internal standard or use of a hydride generation accessory.

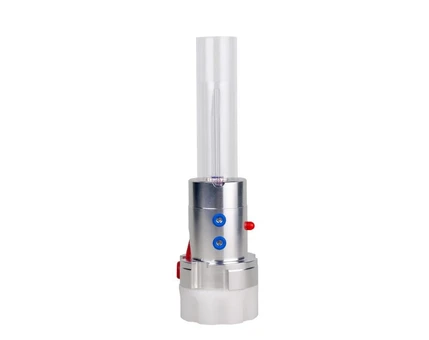

- A quick-release semi-demountable torch for easy maintenance.
- A solid-state, free-running 27.12 MHz RF generator to ensure robust plasma generation for any sample matrix.
- Three independent mass flow controllers (MFC) for precision control of the nebulizer, plasma, and auxiliary gas and to ensure long-term stability.
- An interlock drain sensor to shut down the system if a leak in the sample path is detected and to prevent samples being lost.
- An echelle polychromator that is thermostatically controlled to ensure long-term stability and reduce the need for recalibration.
- A cross-dispersing prism combined with an echelle to provide a resolution of 7 pm and minimize interferences.
- A random-access CID imager provides full wavelength coverage from 167.021 to 852.145 nm.
- Thermo Scientific™ Qtegra™ Intelligent Scientific Data Solution™ (ISDS) Software, providing an easy-to-navigate platform that allows the analyst to add wavelengths, create methods, analyze samples and post-process the data while the spectrometer is acquiring data.

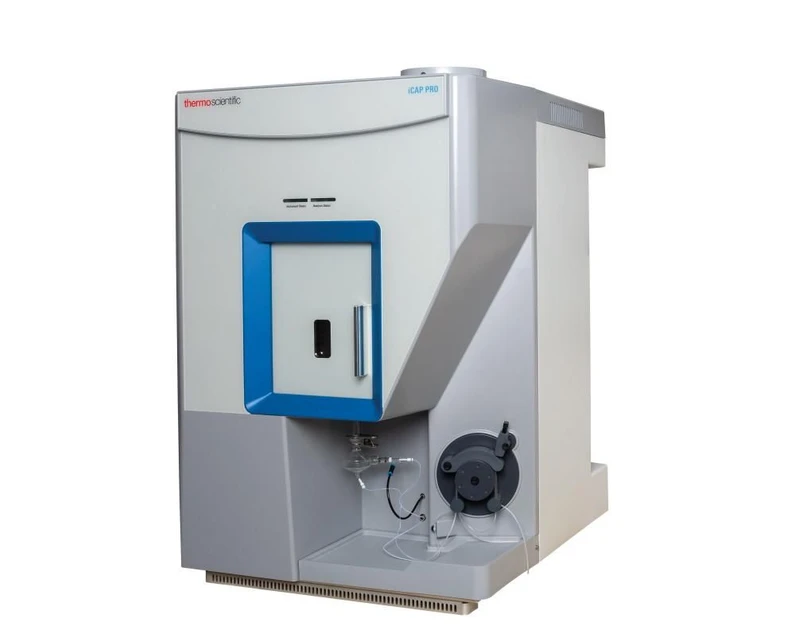

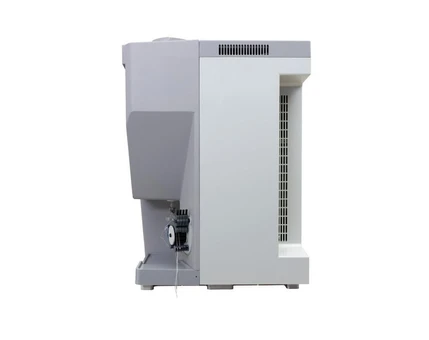

Thermo Scientific iCAP™ PRO ICP-OES Duo
Specifications
- Type: ICP-OES Duo
- Auxiliary Gas: MFC stabilized at 0.5 LPM
- Detector Type: High performance solid-state CID821
- Nebulizer Gas: MFC tunable, 0.3 to 0.8 LPM
- Peristaltic Pump: 3-channel, 0 or 45 rpm
- Plasma Gas: MFC stabilized at 12.5 LPM
- Plasma Viewing: Vertical Radial
- RF Source: 27 MHz
- Description: iCAP PRO ICP-OES Duo
- Dimensions (D x W x H): 690 x 615 x 933 mm
- Purge: 3.4 LPM
- Spectral Bandpass: 7 pm at 200 nm
- Spectrometer: Simultaneous echelle
- Standard Sampling Kit: Concentric glass nebulizer, Glass cyclonic spray chamber, Semi-demountable EMT torch, 2 mm bore quartz center tube
- Warm Up Time: 1 hr. from off
- Wavelength Range: 167 to 852 nm
- Unit Size: Each
iCAP PRO Series ICP-OES has ACT label certification
Reduce your lab's environmental impact with the iCAP PRO Series ICP-OES, recipient of the ACT label from My Green Lab. The ACT Environmental Impact Factor Label is the world's premier eco-label for laboratory products. The program ensures Accountability, Consistency, and Transparency in the reporting of environmental impact data to enable sustainable laboratory procurement. It was designed by both scientists and procurement specialists to provide clear, third-party verified information about the sustainability profile of laboratory products. By providing needed transparency around manufacturing, energy and water use, packaging, and end-of-life impacts, ACT makes it easy to choose environmentally preferable products and reduce the carbon impact of laboratory supply chains.
