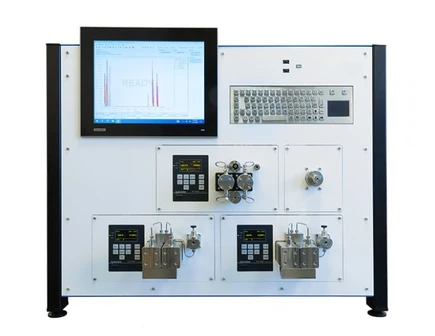

We would like to introduce an ECOM product news – a complete flash/preparative/pilot scale/production modular system with an excellent price/performance ratio.
Applications
The system can be used e.g. in:
- high-capacity systems or with centrifugal liquid/liquid chromatography systems, like in pharmaceutical purification of plant extracts – e.g. cannabinoids (CBD, CBN, CBG, CBC, THC, etc.), peptides, and oligonucleotides, algae extracts, oleoresins, etc.,
- Also in new molecule development or synthesis.
Main parts
Pumps
- The device has 3 pumps, 2 main ones are intended for a "high" pressure gradient (parallel pump connection), and one of them has a 6-solvent selection valve.
- An optional third pump is used for repetitive sampling of high-volume samples. The unit also has a loop sample injection valve and a switching valve for CCC/CPC applications (ascending/descending mode).
- The unit's universal PDA detector measures absorbance at four wavelengths at the same time up to 800 nm.
Software
- The ECOMAC software or Clarity software (FDA 21 CFR Part 11 compliant) is internally installed in the PC controlling the system.
Customization
- The unit is completely customizable to the application needs to meet any scale criteria–from small flash sample separation testing through pilot scale prediction to high-capacity production.
- It could work in ranges of 10 ml/min.–6000 ml/min and it can be easily and automatically switched between these scales.
