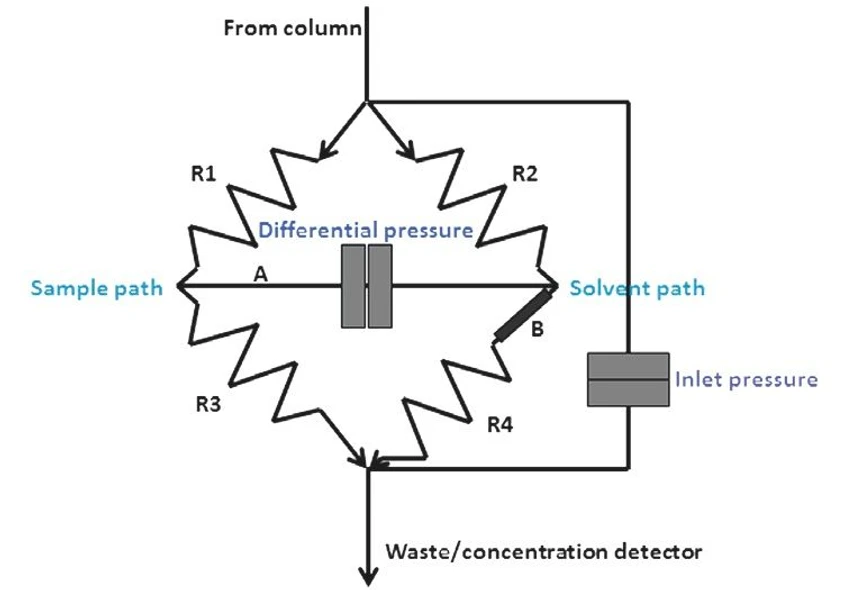

Streamline™ VD1 viscosimetric detector measures absolute intrinsic viscosity and is ideal as a detector for online monitoring in any GPC system. VD1 enables measurement of absolute molecular size using Wheatstone bridge operating principle.
FEATURES
- High sensitivity and stability
- Low-noise
- Open protocol digital data format
- Direct dual analog output
Watrex: Watrex Streamline VD1 Viscosimetric detector - Universal calibration from VD1 data 1
Watrex: Watrex Streamline VD1 Viscosimetric detector - Universal calibration from VD1 data 2
TECHNICAL SPECIFICATION
- Wavelength Range: 190 – 720 nm
- Baseline Noise: ± 1 x 10-5 AU (@240 nm, 2 sec. risetime)
- Baseline Drift: < 3 x 10-4 AU/h
- Wavelength Accuracy: ± 0.5 nm
- Wavelenghth Reproducibility: ± 0.1 nm
- Mean Pixel Pitch: 2.2 nm
- Resolution (λ FWHM): 7 nm
- Linearity: > 2.5 AU
- Wavelength Program: Programmable, 10 steps
- Analog Output (optional): 1x 1 V
- Options: Dual channel configuration, thermostated flow cell
Watrex: Watrex Streamline VD1 Viscosimetric detector - Technical specification
Ordering information:
PN/Component:
- SVD101-001 Watrex Streamline™ VD1 viscosimetric detector (Price 19 741 € ex VAT)
You can also visit this product on the Watrex website.
