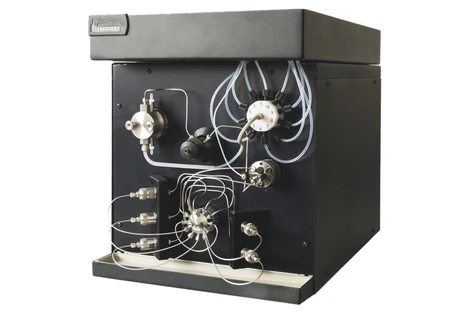

Watrex Streamline OLE 200 On-line SPE system

An automatic on-line solid-phase extraction (SPE) and pre-concentration unit with a 10-port selection valve processes up to 7 samples through 7 SPE cartridges. After washing, the eluted components are directed into an HPLC system via a sample valve.

Automatic on-line SPE/pre-concentration unit equipped with 10 port selection valve for samples and washing solvents, high pressure cartridge selector for 7 cartridges, high pressure pump, and injection valve connected to HPLC instrument.The pump sucks through 10 port selection valve up to 7 samples to 7 SPE cartridges. Then collected components are washed with one or two slushing eluents, and eluted via sample valve into a HPLC system.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_Watrex_Streamline_OLE_200_On_line_SPE_system_Principle_of_online_SPE_by_OLE_200_e40db78c8f.jpg" alt="Watrex - Watrex Streamline OLE 200 On-line SPE system - Principle of online SPE by OLE 200"><h3>TECHNICAL SPECIFICATION</h3><ul><li>Cartridge selector: twin 10-port high pressure selector, 40MPa</li><li>Cartridge dimensions: 10x4mm</li><li>Connection to HPLC instrument: Rheodyne 6 port sample valve</li><li>Selector: low-pressure 10-port selection valve IDEX</li><li>Sample load pump: high-pressure single piston ss pump</li><li>Instrument control: driver for all valves and pump controll included</li></ul><h3>Ordering information:</h3><h5>PN/Component:</h5><ul><li>D2K2062401 Watrex OLE200</li></ul>You can also visit this product on the <a target="_blank" rel="noopener noreferrer" href="https://watrex.com/obchod/laboratory-automation/streamline-ole-200/?utm_source=labrulez&amp;utm_medium=propagace&amp;utm_campaign=labrulez_produkty">Watrex website</a>.

Watrex xTrovert XT Automatic DNA/RNA extractor

Watrex xTrovert XT is an automatic DNA/RNA extractor. It streamlines the extraction process, making it more efficient and reproducible.

Automatic extractor utilises a simple principle of two pipetting heads serving a 96-well plate.Thanks to easy replacement head options of pipetting with 300 μl tips or 1000 μl tips are available. Automatic optical sensor calibration enables the use of pipetting tips and 96-well plates from virtually any supplier. The device is equipped with two magnetic arms for protocols including paramagnetic SPR beads. It also allows for thermal incubation in the range of 25 to 85 °C. In addition to internal LED lighting, the station is equipped with an integrated UV-C sterilisation unit. Intuitive control from TFT touch panel user interface facilitates easy set-up. xTrovert™ XT is a fully programmable open system where user can create their own workflow scripts downloadable as text files from USB flas disk.<h3>APPLICATIONS</h3><ul><li>Sample prep for PCR testing</li><li>NGS library prep</li><li>Sanger DNA sequencing</li></ul><h3>CURRENT PROTOCOLS</h3><ul><li>DNA/RNA extraction</li><li>DNA purification</li><li>PCR clean-up/desalting</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_Watrex_x_Trovert_XT_Automatic_DNA_RNA_extractor_Compatible_with_any_magnetic_bead_based_kit_23886eea52.jpg" alt="Watrex: Watrex xTrovert XT Automatic DNA/RNA extractor - Compatible with any magnetic bead based kit"><h3>TECHNICAL SPECIFICATION</h3><ul><li>Capacity: 16 or 32 samples/run</li><li>Volume range: 10 – 600 μl</li><li>Temperature: 25 – 85 °C</li><li>Sterilization: UV-C</li><li>Display: 3,5“ TFT touch display</li><li>Connectivity: USB 1.0/2.0</li><li>Power source: 24 V adaptor</li><li>Dimensions in cm: 65(w) x 65(h) x 34(d)</li><li>Weight: 25 kg</li></ul><h3>Ordering information:</h3><h5>PN/Component:</h5><ul><li>XTR000-001 xTrovert™ XT Universal robotic pipettor for DNA/RNA extraction &amp; handling</li><li>XTR000-003 Replaceable 8-channel 1000uL pipetting head for xTrovert™ XT</li><li>XTR000-004 Replaceable 8-channel 300uL pipetting head for xTrovert™ XT</li><li>XTR000-100 Deepwell plates (empty) for xTrovert™ XT</li><li>XTR000-220 DNA/RNA extraction kit, mgn. beads, 16-rxns per plate</li></ul>The entire system was designed and developed by Watrex Praha and is manufactured in the Czech Republic and promises a shift in the performance and efficiency of laboratory processes worldwide!You can also visit this product on the <a target="_blank" rel="noopener noreferrer" href="https://watrex.com/obchod/laboratory-automation/xtrovert-xt/?utm_source=labrulez&amp;utm_medium=propagace&amp;utm_campaign=labrulez_produkty">Watrex website</a>.

Watrex xTrovert FLEX-O automation SPE sample preparation system

FLEX-O robotic system enabling automation sample preparation on solid phase using 96-titre plates.

FLEX-O robotic system enabling automation sample preparation on solid phase using 96-titre plates. Although there are solutions for automatic SPE on classic column formats, robotic system for automation in 96-well SPE plates is not currently on the market.In addition to the 8-channel pipetting head, the robot is equipped with a gripper and a filling dispenser, which applies wash solutions to the SPE positions on the plate. Instead of filtering using classic vacuum pump, which is used for manual SPE on columns or 96plates, the <a target="_blank" rel="noopener noreferrer" href="https://watrex.com/obchod/laboratory-automation/xtrovert-flex-o/?utm_source=labrulez&amp;utm_medium=propagace&amp;utm_campaign=labrulez_produkty">xTrovert FLEX-O</a> system uses the so-called positive pressure technology when it is the reagent is pushed through the SPE membrane with a multi-channel pressure attachment. That’s it ensuring flow uniformity and reproducibility between individual samples on the plate.The robot is capable of processing up to 4 x 96-well sample plates (384 of total samples) using a protocol with up to 8 different washing and extraction reagents.The system is compatible with the Waters OligoWorks™ SPE Macroplate (96-well), Waters Oasis™ PRiME HLB, Macherey-Nagel™ SPE MULTI 96-Monoblock CHROMABOND™ and other 96-plate format SPE systems.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_x_Trovert_FLEX_O_automation_SPE_sample_preparation_system_ec3768960e.jpg" alt="Watrex xTrovert FLEX-O automation SPE sample preparation system.jpg" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Watrex_x_Trovert_FLEX_O_automation_SPE_sample_preparation_system_ec3768960e.jpg 208w," sizes="100vw" width="1433" height="1075">If necessary, the user can make modifications to the log using a simple scripting language and subsequent wireless upload to the device. Userthe interface for controlling the system is based on the integrated computer Raspberry Pi ® s 800×480 RGB LCD multi-touch touch screen and the possibility of remote wifi accessfrom an external device (e.g. mobile phone or tablet).<h4>Application</h4><ul><li>Purification of oligonucleotide synthesis products</li><li>Organic Synthesis</li><li>Environmental Analysis</li><li>Medical diagnostics</li><li>Molecular biology and biochemistry</li></ul>The entire system was designed and developed by Watrex Praha and is manufactured in the Czech Republic and promises a shift in the performance and efficiency of laboratory processes worldwide!

Watrex Streamline FC1 Fraction Collector

The fully automated fraction collector FC1 offers a universal solution for a number of applications requiring the collection of fractions, e.g. protein purification, preparative chromatography.

The fully automated fraction collector FC1 offers a universal solution for a number of applications requiring the collection of fractions, e.g. protein purification, preparative chromatography or other methods for obtaining samples by fractionation.<blockquote>Price: 4 260<bdi>&nbsp;€ ex VAT</bdi></blockquote>For advanced programming and connection to chromatography software, the device is equipped with a USB interface. FC1 is supported by the <a target="_blank" rel="noopener noreferrer" href="https://lcms.cz/products/305">Clarity Chromatography Station</a><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_schema_procesu_sberu_frakci_pomoci_frakcni_kolektor_FC_1_fa579d59f2/Watrex-schema-procesu-sberu-frakci-pomoci-frakcni-kolektor-FC1.png" alt="Watrex: Schematic of the fraction collection process using the FC1 fraction collector">The robust design of the FC1 ensures reliable X-Y displacement that carries the switching valve. Placing the fraction switch directly above the receiving vessel minimizes dead volume between fractions.Depending on the required volume of fractions, different types of test tube stands are offered with the device. Furthermore, it is also possible to use large-volume containers.The operator controls and programs the fraction collector from the touch screen on the front panel of the device using intuitively arranged screens with adjustable parameters for a given fraction collection series.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Watrex_Nastaveni_treshold_limitu_pro_sber_frakci_pomoci_sberace_frakci_FC_1_f48d645dfc/Watrex-Nastaveni-treshold-limitu-pro-sber-frakci-pomoci-sberace-frakci-FC1.jpg" alt="Watrex: Setting the treshold limit for fraction collection using the FC1 fraction collector"><h3>FEATURES</h3><ul><li>Simple operation</li><li>Color touch panel control</li><li>Optional analog input</li><li>Selection of rack types</li><li>Clarity CDS supported</li></ul><h3>TECHNICAL SPECIFICATION</h3><ul><li>Max. flow: 50 ml/min</li><li>Wetted Materials: PTFE, PEEK</li><li>User control: Color touch panel</li><li>PC connection: USB</li><li>External control: TTL (contact closure) - RUN, STOP, NEXT, COLLECT</li><li>Power supply: 24V DC external power supply</li></ul><h3>Ordering information:</h3><h5>PN/Component:</h5><ul><li>SFC101-001 Streamline™ FC1 Fraction Collector</li><li>SFC101-002 Cooling option for FC1 Fraction Collector</li><li>SFC101-003 Analog Signal Monitoring, Input for FC1 Fraction Collector</li></ul>You can also visit this product on the <a target="_blank" rel="noopener noreferrer" href="https://watrex.com/obchod/chromatography/dedicated-instruments/streamline-fc1-fraction-collector/?utm_source=labrulez&amp;utm_medium=propagace&amp;utm_campaign=labrulez_produkty">Watrex website</a>.

Products from category Sample preparation automation distributed by WATREX Prague - page 1
