SIELC Alltesta Mini HPLC Autosampler

The Alltesta™ Mini Autosampler is an affordable and dependable solution for automated sample handling in various analytical and liquid handling applications, including HPLC.

The Alltesta™ Mini Autosampler is an affordable and dependable solution for automated sample handling in various analytical and liquid handling applications, including HPLC. With its proprietary alpha/beta mechanical design, this compact autosampler offers direct and comprehensive control of its features, making integration quick and easy. Users can tailor the mini autosampler to their needs with customizable valve configurations, tray designs, and syringe volumes and pressures. Additionally, a built-in shaking feature enables sample mixing before injection and/or simple sample extraction within the vial.
This compact autosampler comes designed with original equipment manufacturer (OEM) customization in mind. Custom shape, color, and communication interfaces can be adapted to integrate with any system. Comprehensive software integration support is provided. Other options include metal-free sampling and reagent addition and mixing capabilities.
<ul>
<li>FRACTION COLLECTION CAPABILITY: A simple software modification can quickly convert this small autosampler into a fraction collector.
</li>
<li>REACTOR PROBE SAMPLER CAPABILITY: A simple software modification can quickly convert this small autosampler into a reactor probe sampler.
</li>
</ul>
This miniature autosampler can also be used as a component of our <a href="https://lcms.labrulez.com/products/1242">Alltesta™ Gradient Automated Analyzer</a> and <a href="https://lcms.labrulez.com/products/1243">Alltesta™ Cromite Analyzer</a>.
<blockquote>
<h4>The price of the Alltesta™ Mini Autosampler varies depending on the specific configuration requested.</h4>
</blockquote>
<h4>Specifications</h4>
<ul>
<li>Dimensions (WHL): 160 x 145 x 195 mm / 6.3 x 5.71 x 7.68 in</li>
<li>Weight: 3 kg / 6.6 lb</li>
<li>Power: 24 V</li>
<li>Capacity: 48 vials or 96-well plate</li>
<li>Pressure: 5000 psi</li>
<li>Needle Wash: Inside and outside</li>
<li>Syringe Capacity: 120µL high-pressure / 4000µL low-pressure stainless / 4000µL low-pressure ceramic</li>
<li>Valve options: 6×2, 7×6 and 10×9 (more details here).</li>
<li>Volume Accuracy: 0.1µL</li>
<li>Communication: RS232 Virtual COM port via USB</li>
</ul>
<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/SIELC_Alltesta_Mini_Autosampler_A_very_simple_schematic_operation_of_the_Alltesta_Autosampler_b79b0ad187.jpg" alt="SIELC: Alltesta™ Mini Autosampler - A very simple schematic operation of the Alltesta™ Autosampler."/>
<h4>Software</h4>
The Alltesta™ Autosampler can be controlled:
<ul>
<li>directly via serial commands (Alltesta™ protocol available upon request, please contact us at support@sielc.com),</li>
<li>directly via our demo software, allowing to learn the whole functionality of the unit (<a href="https://sielc.com/wp-content/uploads/2022/12/Alltesta_Autosampler_Control_Windows_10.zip">Windows 10, 32/64bit</a>, 5Mb; <a href="https://sielc.com/wp-content/uploads/2022/12/Alltesta_Autosampler_Control_Windows_7.zip">Windows 7, 32/64bit</a>, 126Mb).</li>
<li>remotely through our cloud software (as a part of Alltesta™ Analyzer or Alltesta™ Mini Analyzer),</li>
</ul>
Serial communication drivers are available <a href="https://ftdichip.com/drivers/vcp-drivers/">here</a>.

SIELC Alltesta™ Mini LHS (Liquid Handling Station)

The Alltesta™ Mini Liquid Handling Station serves as an affordable, reliable solution for automated sample handling.

The Alltesta™ Mini Liquid Handling Station serves as an affordable, reliable solution for automated sample handling. With its compact design, proprietary alpha/beta mechanical structure, and adjustable operation speeds, it offers comprehensive control for quick and seamless integration with other equipment. The station comes equipped with a built-in sample shaking feature for in-vial sample mixing and extraction, and a needle washing station capable of accommodating up to four solvents.
Designed with Original Equipment Manufacturer (OEM) customization in mind, the Alltesta™ Mini Liquid Handling Station can be tailored to fit any system’s requirements. Custom needle lengths and trays enable the device to accommodate various types of vials. An array of integrated valves and a measuring syringe can be added to the device. Additional customization options, such as metal-free flow paths and customer-specified enclosure colors, are also available.
Comprehensive software integration support is provided to ensure smooth operation and functionality.
<h4>Specifications</h4>
<ul>
<li>Dimensions (WHL): 160 x 145 x 195 mm / 6.3 x 5.71 x 7.68 in</li>
<li>Weight: 2.25 kg / 5 lb</li>
<li>Power: 24 V</li>
<li>Capacity: 48-vial tray or 96-well plate</li>
<li>Needle Wash: Inside and Outside</li>
<li>Communication: RS232 Virtual COM port via USB</li>
</ul>
<h4>Software</h4>
The Alltesta™ LHS can be fully controlled via serial commands. Alltesta™ protocol available upon request, please contact us at support@sielc.com. Serial communication drivers are available <a href="https://ftdichip.com/drivers/vcp-drivers/">here</a>.

SIELC Samplify Automated sampling system

Samplify Is a device which allows unattended sampling of a reaction mixture or bioprocess or continue in line flow by taking small amount of liquid from the monitoring mixture and collecting it in a vial or a 96 wells plate

Samplify™ Is a device which allows unattended sampling of a reaction mixture or bioprocess or continue in line flow by taking small amount of liquid from the monitoring mixture and collecting it in a vial or a 96 wells plate. It also allows to dilute the sample with assigned dilution ratio and can provide reaction quenching to preserve the sample state at time of sampling. It has two main components: an autosampler and a probe. The Samplify™ &nbsp;controlled and setup by a PC software.<h3>Description</h3>It is a common task in the lab to periodically sample a reactor or a fermenter to obtain information about reaction kinetic, completion and have a tangible representation of intermediate states of a dynamic process. This usually done manually with pipettes or syringes, using stopwatch to measure time and requires to be in the lab during the entire process.With Samplify it can be done in automated mode. When an automated sampling process is used it increases accuracy, safety, and productivity. It reduces potential samples cross contamination, and exposure of the reaction mixture to oxygen or moisture, when anaerobic or moisture free conditions are required.<ul><li>Based on a proprietary alpha/beta mechanical configuration, Alltesta Miniature Autosampler and patent pending sample probe offers affordable and reliable automation for many analytical and liquid-handling applications.&nbsp;</li><li>Small controllable volume of sample can be programmed and precisely removed from the enclosed or open system. The sample will then be transferred to a vial with inert solvent with measured volume to create a controllable dilution factor.</li><li>A quench solution can be automatically preloaded in each vial to provide termination of reaction or biological process, and preserve sample content in the time of probing.</li><li>In order to effectively mix samples with diluents or quenching reagents a shaking capability of the autosampler tray can be initiated after each sample cycle.</li><li>PC based software allows quick, but flexible, setup of the sampling experiment. Several preloaded methods can be quickly adapted to a particular needs of the user.</li><li>For temperature sensitive samples the entire autosampler can be placed in the temperature controlled environment.</li><li>The device small size allow to place it close to the reactor and use short connection lines to minimize dispersion. Also a small cooler can be used to keep samples in cold conditions after they are collected.</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/SIELC_SIELC_Samplify_Automated_sampling_system_937b70e8d2.jpg" alt="SIELC: SIELC Samplify™ Automated sampling system." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_SIELC_SIELC_Samplify_Automated_sampling_system_937b70e8d2.jpg 245w," sizes="100vw" width="1346" height="663"><h3>Specifications</h3><h4>Samplify™ Autosampler:</h4><ul><li>Syringe volume: 4.0 mL</li><li>Pressure: up to 250 psi</li><li>Valve configuration: 7×6</li><li>Power Requirements: 24 VDC</li><li>Current Requirements: Up to 1.0 A</li><li>Dimensions (WHL): 160 x 145 x 195 mm / 6.3 x 5.71 x 7.68 in</li><li>Weight: &nbsp;3 kg / 6.6 lb</li><li>Inlets/Outlets: Thread 10-32 UNF compression type</li><li>Materials in contact with liquid: SS316, PTFE, PEEK</li><li>Tray capacity: 48 vials 1.8 mL volume or 96 wells plate</li><li>Communication: USB virtual serial port</li></ul><h4>Samplify™ Probe:</h4><ul><li>Connection: requires Alltesta-Samplify autosampler</li><li>Dimensions: 1 x 1 inch, DIA ¼ inch. Immersion length up to 6 inch</li><li>Materials in contact with liquid: Stainless Steel 316 (316L), PEEK &amp; PTFE</li><li>Variable sample volume: from 5 to 500 µL</li><li>Max. working pressure: 120 psi (8 bar)</li><li>Max. working temperature: &nbsp;200 °C</li></ul><h3>Software</h3>The Samplify can be controlled:<ul><li>directly through your software via serial commands (Alltesta™ protocol available upon request, please contact us at support@sielc.com),</li><li>remotely through our cloud software (autosampler.cloud),</li><li>directly via our Samplify PC software, allowing to fully control all the parameters of the sampling operations</li></ul><h3>Available Custom Options</h3>Metal-free version of the syringe pump includes no metal contact pump head.

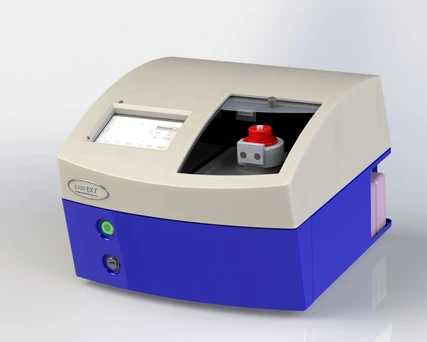

PBI Barocycler 2320EXT Sample Preparation System

The Barocycler 2320EXT is a compact, bench top instrument that can process up to 16 samples simultaneously using PCT MicroTubes.

<h4>For the PCT-HD Sample Preparation System</h4>Pressure Cycling Technology (PCT) is a unique, patented technology platform based on repeated cycles of hydrostatic pressure between ambient (14.7 psi) and ultra-high levels. These rapid changes in pressure are used to control biomolecular interactions for applications such as accelerated proteolytic digestion, and improved extraction of cellular components, including proteins and lipids. The PCT platform allows for a high degree of safety, speed, reproducibility, and convenience in modern sample preparation protocols.The PCT-HD Sample Preparation System is a proven PCT-based workflow for processing small tissue samples for proteomic and other applications. PCT-HD combines efficient, hands-off tissue homogenization and protein extraction with pressure-enhanced digestion, for rapid, efficient and reproducible generation of peptides for MS analysis. This unique workflow combines two of PBI’s innovative sample preparation tools: the Barocycler 2320EXT and our patentpending PCT MicroPestles. PCT-HD and the Barocycler 2320EXT can provide unprecedented speed and reproducibility for biomarker discovery, yielding peptides ready for clean-up and MS within 2-4 hours from the start of tissue processing.The Barocycler 2320EXT is a compact, bench top instrument that can process up to 16 samples simultaneously using PCT MicroTubes. Features that come standard with the 2320EXT include: data input and output options to accommodate validation and quality control; computer-operated control with touch screen programming and automatic data logging; and the ability to control multiple pressure cycling parameters, such as the rate of pressure increase/decrease, both the high and low pressure levels, and the shape of the pressure profile (e.g., sine wave, square wave, and others). In addition, the 2320EXT is available with a choice of two different methods for temperature control (an external circulating waterbath for heating and cooling, or a built-in electric heater).<blockquote>Patent Pending</blockquote><h4>The Barocycler 2320EXT</h4><ul><li>Computer-operated control with Touch Screen Interface</li><li>Pressure Range: ambient - 45,000psi (310 MPa)</li><li>Choice of temperature control - heating/cooling or heating only</li><li>Max Temperature: 95˚C</li><li>Min Temperature: 4˚C with circulating waterbath, ambient with electric heating</li><li>Insulated closure for easier use at high temperatures</li><li>Chamber capacity: up to 16 samples in MicroTubes</li><li>Easily accessible USB port on front panel</li><li>Requires 110psi input air pressure</li><li>Input air pressure can be provided by an air compressor, house air or nitrogen lines, air or nitrogen tanks.</li><li>Pressure medium: Distilled Water</li></ul><h4>Touch Screen Interface</h4>Pressure Profiles are programmed via an onboard touch screen, which can be connected to a network. The instrument is also equipped with a USB port that can be used to connect a mouse or keyboard to the 2320EXT.<ul><li>Pressure Mode Settings: Barocycler, Ramp, Waveform</li><li>Cycled or Static Pressure</li><li>Network Enabled</li><li>Automatic Logging of All Run Parameters</li><li>Data Output&nbsp;</li><li>Save and Record Programs</li><li>Real-time pressure display graph shows pressure and temperature throughout the run</li><li>Touch Screen Temperature Control (with electric heating option only)</li></ul><h4>MicroTubes and MicroPestles</h4>The 2320EXT comes with a full MicroTube Adapter Kit, that includes the MicroTube Cartridges, Capper Tool, and other accessories that are required when using PCT MicroTubes in the 2320EXT. PCT μPestles, used in conjunction with PCT MicroTubes in the Barocycler, are designed for rapid, hands-off homogenization and extraction when working with minute amounts of solid tissue. PCT MicroTubes and MicroPestles are an integral part of the PCT-HD workflow.<ul><li>Process up to 3mg of solid tissue in 30uL of extraction reagent</li><li>Process as few as 5 x 104 cells</li><li>MicroTubes are constructed of non-wetting, low binding FEP plastic</li><li>MicroPestles are made from inert PTFE (Teflon)</li></ul>
