The Agilent J&W HP-5 GC column is one of the most widely used columns for general-purpose gas chromatography. With a (5%-phenyl)-methylpolysiloxane stationary phase, it provides excellent performance for a broad range of applications including environmental, forensic, petrochemical, food, and pharmaceutical analyses.

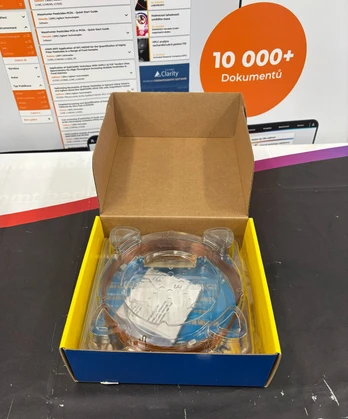

This 30 m × 0.32 mm × 0.25 µm configuration in a 7-inch cage is the standard format for Agilent GC ovens and is fully compatible with Agilent 5890, 6890, 7820, 7890, 8860, 8890 systems and virtually all non-Agilent GC systems using a similar oven size.
Key Features
- Versatile low-polarity phase (HP-5) suitable for many compound classes
- High thermal stability up to 325/350 °C
- Industry-standard 30 m length and 0.25 µm film for balanced resolution and speed
- Durable fused silica capillary for consistent performance
- 7-inch cage compatible with most GC ovens
- Ideal for semivolatiles, hydrocarbons, solvents, environmental contaminants, organics, and more
Technical Specifications
- Phase: HP-5 (5%-phenyl-methylpolysiloxane)
- Length: 30 m
- Inner Diameter: 0.32 mm
- Film Thickness: 0.25 µm
- Polarity: Low
- Format: 7-inch cage
- Capillary Material: Fused Silica
- Temperature Range: –60 °C to 325/350 °C
- USP Designation: G27
- Smart Key: No
- UNSPSC Code: 41115710
