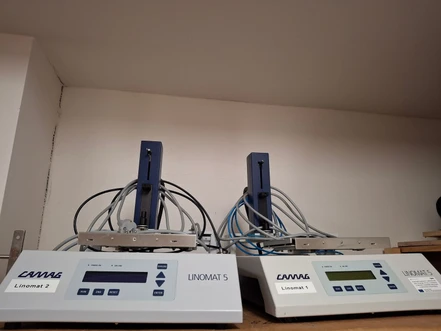

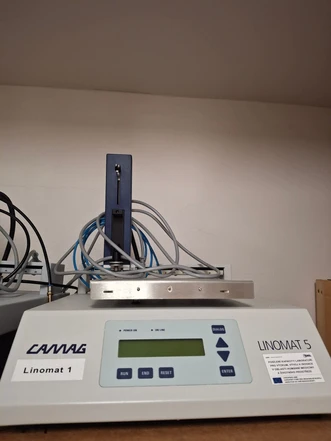

The CAMAG Linomat 5 offers a precise and reproducible way to apply samples on thin-layer chromatography (TLC) and high-performance TLC (HPTLC) plates. Its semi-automatic spray-on technology ensures uniform sample distribution, resulting in sharper separations and consistent results across analyses.
Designed for flexible laboratory use, the Linomat 5 accommodates plates up to 20 × 20 cm and supports both spot and band application. It can be operated manually via its keypad or through the visionCATS HPTLC software, which enables automated control, method storage, and compliance with cGMP and IQ/OQ requirements. The system’s self-adjusting object support and easy setup make it ideal for both routine and research TLC workflows.
Key Features
- Semi-automatic sample application with spray-on precision
- Suitable for TLC/HPTLC plates up to 20 × 20 cm
- Supports band or spot application modes
- Operates with compressed air or nitrogen (4–6 bar)
- Controlled via visionCATS software or integrated keypad
- Self-adjusting support for plate thicknesses up to 4 mm
- Selectable syringe volume: 100 µL or 500 µL
- Memory for 10 methods with 10-year data backup
- Optimized for minimal sample and solvent use
- Consistent, reproducible results for analytical and QC labs
Technical Specifications
- Plate Format: Up to 20 × 20 cm
- Application Range: 0–190 mm (step 0.1 mm)
- Stage Drive: Stepping motor (3200 steps/rev; speed ~10 mm/s)
- Dosage Drive: Stepping motor (1600 steps/rev)
- Syringe Options: 100 µL or 500 µL
- Display: LCD, 2 × 16 characters
- Memory: 10 methods, 10-year data retention
- Gas Supply: 4–6 bar (60–90 PSI), approx. 1 L/min (nitrogen recommended)
- Power Supply: 85–250 V AC, 47–63 Hz, 30 VA
- Dimensions (W×D×H): 360 × 510 × 410 mm
- Weight: 12.5 kg
Applications
- TLC and HPTLC method development and validation
- Pharmaceutical and herbal compound analysis
- Food, cosmetic, and environmental testing
- Research and forensic laboratories
Date of purchase: April 2017
