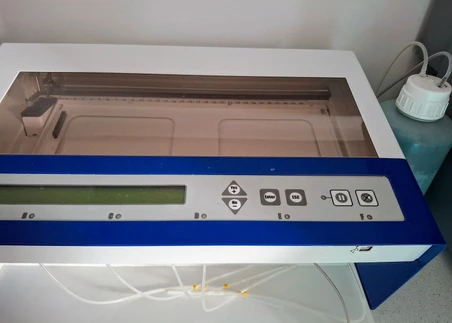

The DYNABLOT Plus is a compact, fully automated system designed for efficient processing of immunoblot and Western blot assays. It provides a complete solution including automatic pipetting, reagent handling, incubation, and digital imaging. Featuring peristaltic pumps with antidrop and reagent-saving functions, rocking incubation, and vacuum-assisted waste removal, DYNABLOT Automatic ensures consistent, contamination-free results with minimal manual input.
Key Features
- Fully automated operation – from sample pipetting to image acquisition
- Up to 44 sample positions in primary tube racks
- Compact, quiet instrument (35 kg, 50 W)
- CCD camera (2592×1944 px) with LED illumination
- Adjustable rocking speeds for uniform incubation

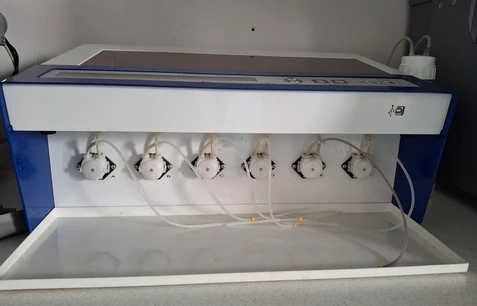

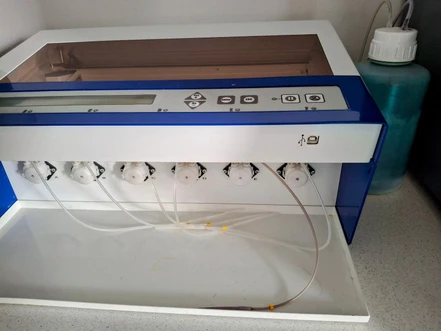

- 8 peristaltic pumps for precise reagent dispensing
- 4 L waste bottle with level monitoring
- Intuitive software for assay setup, control, and image export
Technical Specifications
- Dimensions: 800 × 500 × 540 mm
- Weight: 35 kg
- Power Supply: 100–240 V / 50–60 Hz
- Camera Resolution: 2592×1944 px (490 DPI)
- Capacity: 44 samples
- Mixing: Rocking plate – slow, medium, fast
- Reagent Pumps: 8 peristaltic, reversible
- Vacuum System: Integrated with level sensor
- Cat. No. (with camera): D2144-EC
- Cat. No. (without camera): D2144-E
Supplied accessories:
- trays
Supplied with software.
Hoses need to be replaced.
Date of purchase: October 13, 2014
Number of tests performed: approx. 14,000
