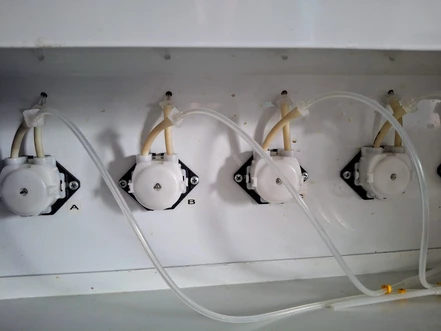

The DYNABLOT Plus combines precision engineering with intelligent automation to deliver a complete solution for Western blot and immunoblot analysis. The system automates sample pipetting, incubation, washing, drying, and imaging — reducing manual steps and improving reproducibility. Its peristaltic reagent pumps feature reverse flow to prevent dripping and save reagent volume, while the integrated vacuum pump ensures clean and efficient waste handling.
Key Features
- Automated blot workflow — from pipetting to imaging
- Up to 44 primary tube positions with barcode identification
- Integrated monochrome CCD camera (2592×1944 px)
- Reagent-saving and antidrop features
- Rocking incubation with adjustable speed
- User-friendly software with multilingual interface
- Compact, low-noise instrument ideal for clinical labs
- Quick maintenance with easy-to-replace tubing
Technical Specifications
- Capacity: 44 samples / 44 strip positions
- Reagent Handling: 8 peristaltic pumps with reverse flow
- Waste Management: 4 L waste bottle with level alarm
- Mixing: Rocking motion – adjustable speed
- Imaging: 490 DPI CCD camera with LED lighting
- Interface: USB connection, PC control
- Dimensions: 800 × 500 × 540 mm
- Weight: 35 kg
- Power Consumption: 50 W
- Cat. No. (with camera): D2144-EC
- Cat. No. (without camera): D2144-E
Supplied accessories:
- trays
Supplied with software.
Hoses need to be replaced.
Date of purchase: July 29, 2014
Number of tests performed: approx. 5,400
