Its polyethylene glycol (PEG) stationary phase delivers superior selectivity, high reproducibility, and excellent thermal stability for demanding GC applications.
With dimensions of 60 m × 0.25 mm ID × 0.25 µm film thickness, the column provides outstanding resolution for complex mixtures and consistent peak shapes. It is mounted on a 7-inch cage, ensuring compatibility with most GC systems, including Agilent, Thermo Fisher, Shimadzu, and PerkinElmer instruments.
The DB-WAX phase is known for high inertness, consistent retention behavior, and low bleed, making it ideal for flavor and fragrance analysis, alcohol determination, food and beverage testing, and environmental VOC applications.
Key Features:
- High-polarity PEG phase (similar to Carbowax® 20M)
- Ideal for polar volatiles – alcohols, esters, acids, and glycols
- Excellent reproducibility and peak symmetry
- Low column bleed and superior inertness
- Compatible with FID, TCD, ECD, and MS detectors
- Mounted on a 7" cage for easy installation
- Genuine Agilent J&W DB-WAX OEM column
Technical Specifications:

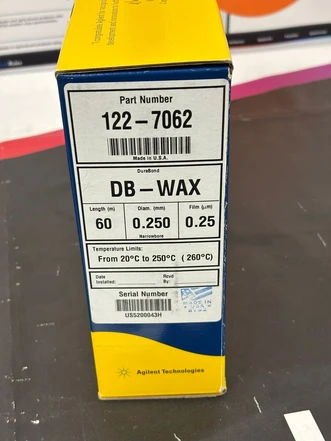

- Part Number: 122-7062
- Product Name: DB-WAX GC Column, 60 m × 0.25 mm × 0.25 µm, 7" Cage
- Length: 60 m
- Inner Diameter: 0.25 mm
- Film Thickness: 0.25 µm
- Stationary Phase: Polyethylene Glycol (PEG)
- Max. Temperature: 250 °C (isothermal), 260 °C (programmed)
- Polarity: High
- Category: Original OEM Agilent J&W GC Column
