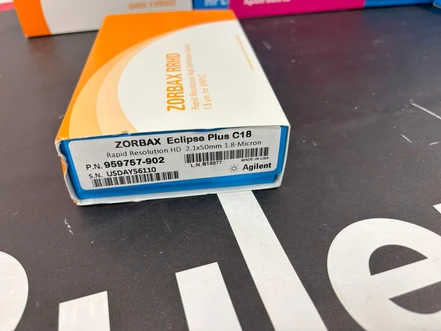

The Agilent ZORBAX RRHD Eclipse Plus C18 column is engineered for ultra-high-performance liquid chromatography (UHPLC) applications requiring fast, high-resolution separations of complex mixtures. With fully porous 1.8 µm silica particles, a 95 Å pore size, and a stable pressure rating up to 1200 bar, this column delivers exceptional efficiency and reproducibility across a wide range of workflows.
Its double endcapping technology improves peak shapes by minimizing secondary interactions, making it highly suitable for acidic, basic, and neutral compounds. Operating within a pH range of 2–9, the column is robust under demanding conditions, supporting maximum performance with compatibility for EPA Method 533.
Key Features
- UHPLC column with 1.8 µm fully porous silica particles
- Eclipse Plus C18 phase with double endcapping for superior peak shape
- Stable up to 1200 bar for fast, high-resolution analyses
- pH operating range 2–9 with maximum temperatures of 40 °C (pH 6–9) and 60 °C (pH 2–6)
- Excellent for small molecule separations (0–3000 Da)
- Optimized for regulatory and routine applications, including EPA 533
Technical Specifications
- Brand: ZORBAX Eclipse Plus
- Dimensions: 2.1 mm ID × 50 mm length
- Particle Size: 1.8 µm (fully porous)
- Pore Size: 95 Å
- Pressure Rating: 1200 bar
- Phase: Eclipse Plus C18
- Separation Mode: Reversed phase
- pH Range: 2–9
- Maximum Temperature: 60 °C (pH 2–6), 40 °C (pH 6–9)
- Shipping Solvent: Acetonitrile/Water
- USP Designation: L1
