The Agilent PLgel 1000Å GPC/SEC column is designed for the analysis of non-polar polymers using non-polar organic solvents such as tetrahydrofuran (THF), toluene, or chloroform. With a pore size of 1000 Å and particle size of 5 µm, this column offers reliable separation in the molecular weight range of approximately 200 Da to 60,000 Da.

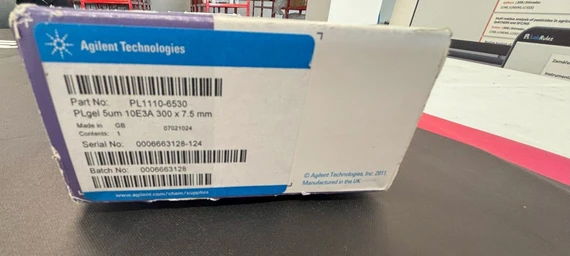

- Agilent PLgel 1000Å, 7.5 x 300 mm, 5 µm – GPC/SEC Column
- Part Number: PL1110-6530
Key Features
- Pore size: 1000 Å – ideal for mid-range polymer analysis
- Column dimensions: 7.5 mm ID × 300 mm length
- Particle size: 5 µm for high efficiency and resolution
- Solvent compatibility: THF, toluene, chloroform, and other non-polar organic eluents
- Application: Suitable for GPC/SEC analysis of non-polar polymers such as polystyrene, polyolefins, and polybutadiene
- Resolution range: ~200 Da to 60 kDa molecular weight
Typical Use
This column is optimized for size exclusion chromatography (SEC) applications requiring good separation of non-polar polymers in organic solvent systems, commonly used in quality control and polymer research.
