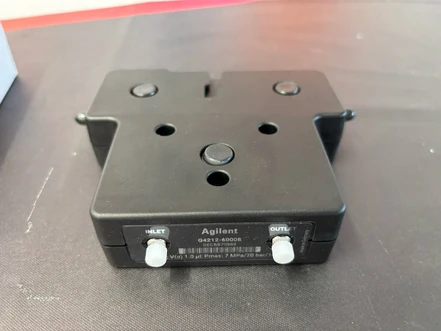

The Agilent Max-Light Cartridge Cell (G4212-60008) is a high-performance flow cell designed for diode array detectors (DAD) used in Agilent Infinity LC systems. With a 10 mm optical path length and low internal volume of 1.0 µL, this cell enables high sensitivity and excellent peak resolution for narrow-bandwidth LC separations.
There are 3 pcs available
Key Features
- 10 mm path length for enhanced UV sensitivity
- Very low cell volume (1.0 µL) minimizes peak dispersion, ideal for fast UHPLC separations
- Max-Light design reduces stray light and improves baseline stability
- Cartridge-style format allows for easy and secure installation
- Optimized for high-speed, high-resolution LC applications
- Chemically resistant materials compatible with a wide range of solvents
Technical Specifications
- Path length: 10 mm
- Internal volume: 1.0 µL
- Cell type: Max-Light Cartridge Cell
- Material compatibility: Suitable for aqueous and organic mobile phases
- Optical performance: Low noise, low stray light, high linearity
- Recommended use:
- Quantitative UV/VIS detection
- Narrow-bore and UHPLC applications
- Fast gradient separations requiring minimal band broadening
- System comatibility:
- 1260 Infinity II & III LC System
- 1260 Infinity II & III Prime LC System
- 1260 Infinity LC System
- 1290 Infinity II & III LC System
- 1290 Infinity II LC System
