Basic configuration available:
- Degasser + solvent module
- Binary pump
- Autosampler
- Column thermostat
- UV-VIS detector (VWD)
Optional:
- Detectors: SQ mass detector
- Software: OpenLab, Clarity

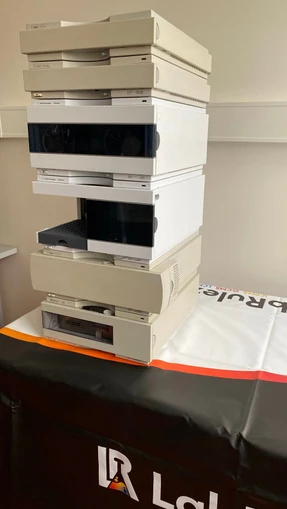

The Agilent HPLC 1100 series is the industry standard for HPLC analysis. It brings maximum flexibility and modularity in configurations from a single system to combinations with other LC, MS or GC detectors.
We protect your current and future investment by making Agilent 1100 series modules compatible with older and newer systems, even from the early 1980s.
Flexible control of the HPLC system using a handheld controller, chromatography software (ChemStation, OpenLab, DataApex Clarity) or via a network (LAN) from another computer.
Peak flexibility of available modules
Binary Gradient
- high-pressure mixing principle
- Highly reproducible gradients and highest performance especially at low flow rates
Altium: Agilent 1100 series liquid chromatograph in a networked configuration
Autosamplers
Standard autosampler
- Designed for reliability, safety and ease of use needed in routine analyses
Column Thermostats
Cooling or heating based on Peltier technology
- Stable operation at ambient temperature, below and above ambient temperature
- Column identification module that reads and records column parameters
- Compact size (integrated in Agilent 1100 series assembly)
Detectors
In addition to refractive index detectors and fluorescence detectors, the Agilent HPLC 1100 Series includes variable, multi-wavelength, diode array and mass spectrometry detectors.
Variable Wavelength Detector (VWD)
- Data acquisition at single wavelength
- ability to program and change wavelengths during analysis
