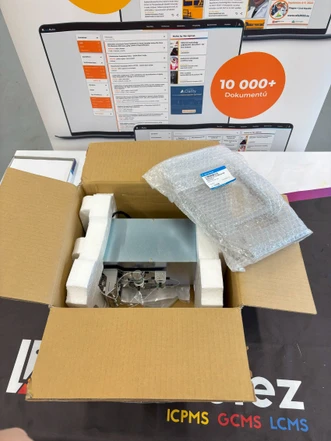

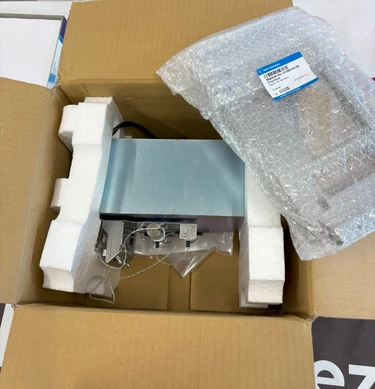

The G1362‑60002 optical unit is a micro optical module designed for use with Agilent 1260 Infinity III Refractive Index Detectors (micro RID). It includes the optical path, flow cell, heat exchanger, purge/recycle valves, and integrated diagnostics—delivering high-sensitivity detection of non-UV-absorbing compounds like carbohydrates, lipids, and polymers.
Key Features
- Micro volume flow cell: 2.5 µL sample volume and ~265 µL total internal volume for low-dispersion, high-speed applications
- LED illumination: Long-life light source (~40,000 h) with automatic intensity control to maintain stable detection
- Integrated heat exchanger & temperature control: Regulates optical module from ambient +5 °C up to 55 °C for baseline stability
- Built-in diagnostics & calibration: Enables real-time troubleshooting, automatic refractive-index calibration, and zeroing
- Front-access plumbing: Provides easy maintenance access to valves and capillaries
Specifications
- Part Number: G1362‑60002 (optical unit, micro RID)
- Flow Cell Volume: 2.5 µL (sample cell) / ~265 µL total internal volume
- Maximum Data Rate: Up to 148 Hz (micro optical module)
- Temperature Control Range: Ambient +5 °C to 55 °C
- Light Source: LED, approx. 40,000 hour lifespan
- Compatible Systems: Agilent 1260 Infinity III RID micro detector (G7162B)
- Materials in Flow Path: Stainless steel, quartz, PTFE (tubing from flow cell)
